HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) 21-5S MUFFLER Parts Diagram

21" Walk-Behind Mower, Made in Japan

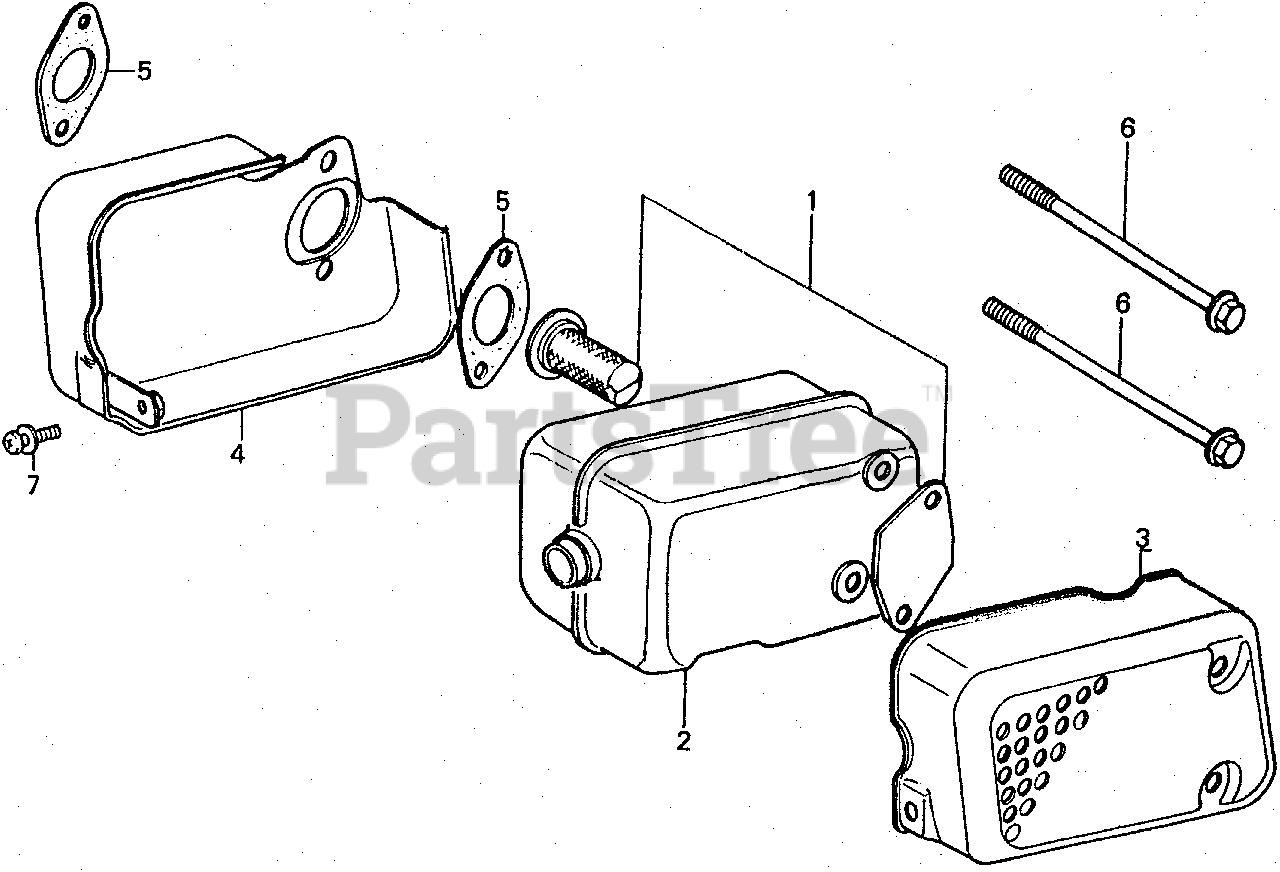

21-5S MUFFLER Parts Diagram

  • Title
1

Honda 06180-894-810

ARRESTER KIT, SPARK (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

2

Honda 18310-894-000

MUFFLER (NOT AVAILABLE)

$

$

Not available

3

Honda 18320-960-650

PROTECTOR, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 18330-894-650

SEPARATOR, MUFFLER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 18381-883-800

GASKET, MUFFLER

$4.99

$

Usually ships in 3-6 days

0

6

Honda 90011-894-000

BOLT, FLANGE (8X104) (NOT AVAILABLE)

$9.99

$

Usually ships in 3-6 days

0

7

Honda 93891-05010-08

SCREW-WASHER (5X10)

$1.49

$

In Stock, Qty 5

0
