HR21-5 SDA (HR21-5) - Honda 21" Walk-Behind Mower, Made in Japan (SN: HR21-5-1019070 - HR21-5-9999999) 21-5S FUEL TANK + FUEL VALVE Parts Diagram

21" Walk-Behind Mower, Made in Japan

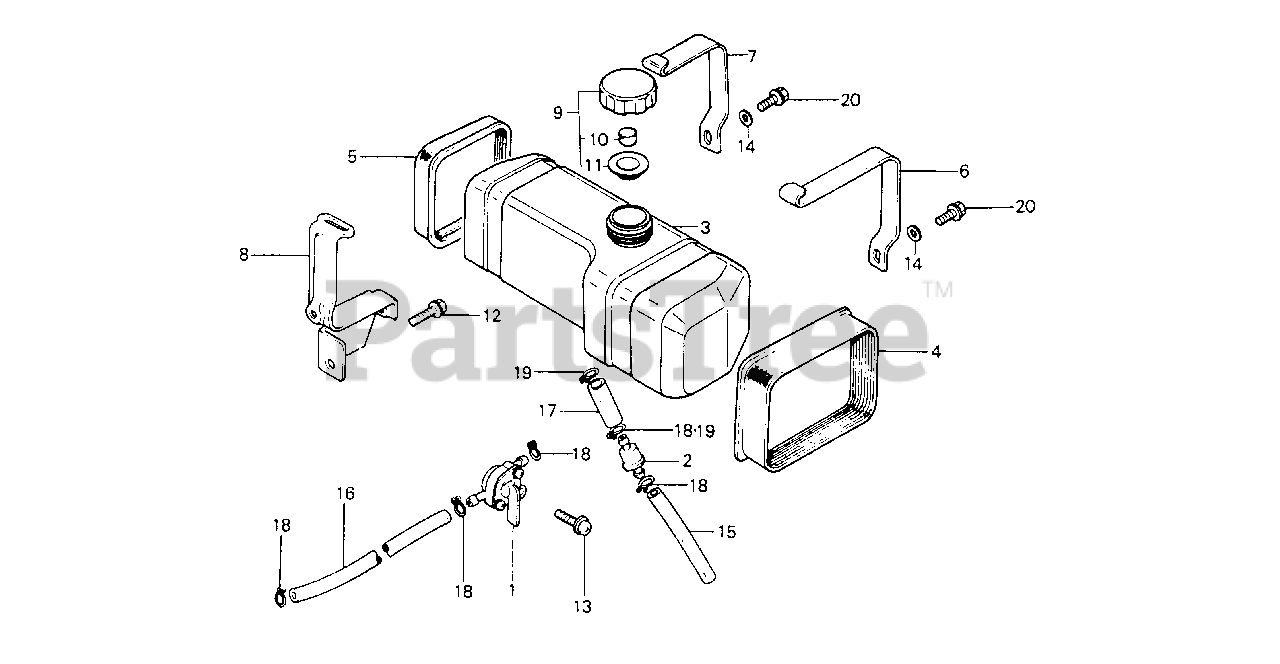

21-5S FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16950-894-005

PETCOCK ASSY. (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16910-GB2-005

FILTER, FUEL

Note: Use from Engine SN 1095066.

$16.99

$

In Stock, only 2 left!

0

2

Honda 16952-952-003

FILTER, FUEL

Note: Use up to Engine SN 1095065.

$16.99

$

Usually ships in 3-6 days

0

3

Honda 17510-960-650

TANK, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 17515-894-000

RUBBER A, FUEL TANK MOUNTING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 17516-894-000

RUBBER B, FUEL TANK MOUNTING (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17518-894-000

BAND A, TANK MOUNTING (NOT AVAILABLE)

$

$

Not available

7

Honda 17519-894-000

BAND B, TANK MOUNTING (NOT AVAILABLE)

$

$

Not available

8

Honda 17525-894-000

STAY B, TANK

$30.99

$

Usually ships in 3-6 days

0

9

Honda 17620-888-020

CAP ASSY., FUEL TANK

$

$

Not available

10

Honda 17622-888-010

SPONGE, FUEL CAP BREATHER

$2.49

$

In Stock, only 4 left!

0

11

Honda 17624-355-010

GASKET, FUEL CAP

Note: Use up to Engine SN 1072213.

$

$

Currently unavailable

11

Honda 17624-896-750

GASKET, FUEL CAP (NOT AVAILABLE)

Note: Use from Engine SN 1072214.

$

$

Not available

12

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

13

Honda 93891-05012-08

SCREW-WASHER (5X12)

$1.49

$

In Stock, only 2 left!

0

14

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (95001-450(95001-45001-60M)

Note: Use from Engine SN 1095066.

$54.99

$

In Stock, only 3 left!

0

15

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X115)

Note: Use up to Engine SN 1095065.

$54.99

$

In Stock, only 3 left!

0

16

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X195)

$54.99

$

In Stock, only 3 left!

0

17

Honda 17512-894-000

TUBE, FUEL (NOT AVAILABLE)

Note: Use from Engine SN 1095066.

$

$

Currently unavailable

17

Honda 95001-55003-60M

BULK HOSE, FUEL (5.5X3000) (5.3X40)

Note: Use up to Engine SN 1095065.

$70.99

$

In Stock, only 1 left!

0

18

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1095065.

$2.49

$

In Stock, only 4 left!

0

18

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use from Engine SN 1095066.

$2.49

$

In Stock, only 4 left!

0

19

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 1095065.

$2.49

$

Usually ships in 3-6 days

0

19

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use from Engine SN 1095066.

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95701-06012-08

BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0
