HR195 SXA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) SXA,SMA THROTTLE LEVER Parts Diagram

19" Walk-Behind Mower, Made in USA

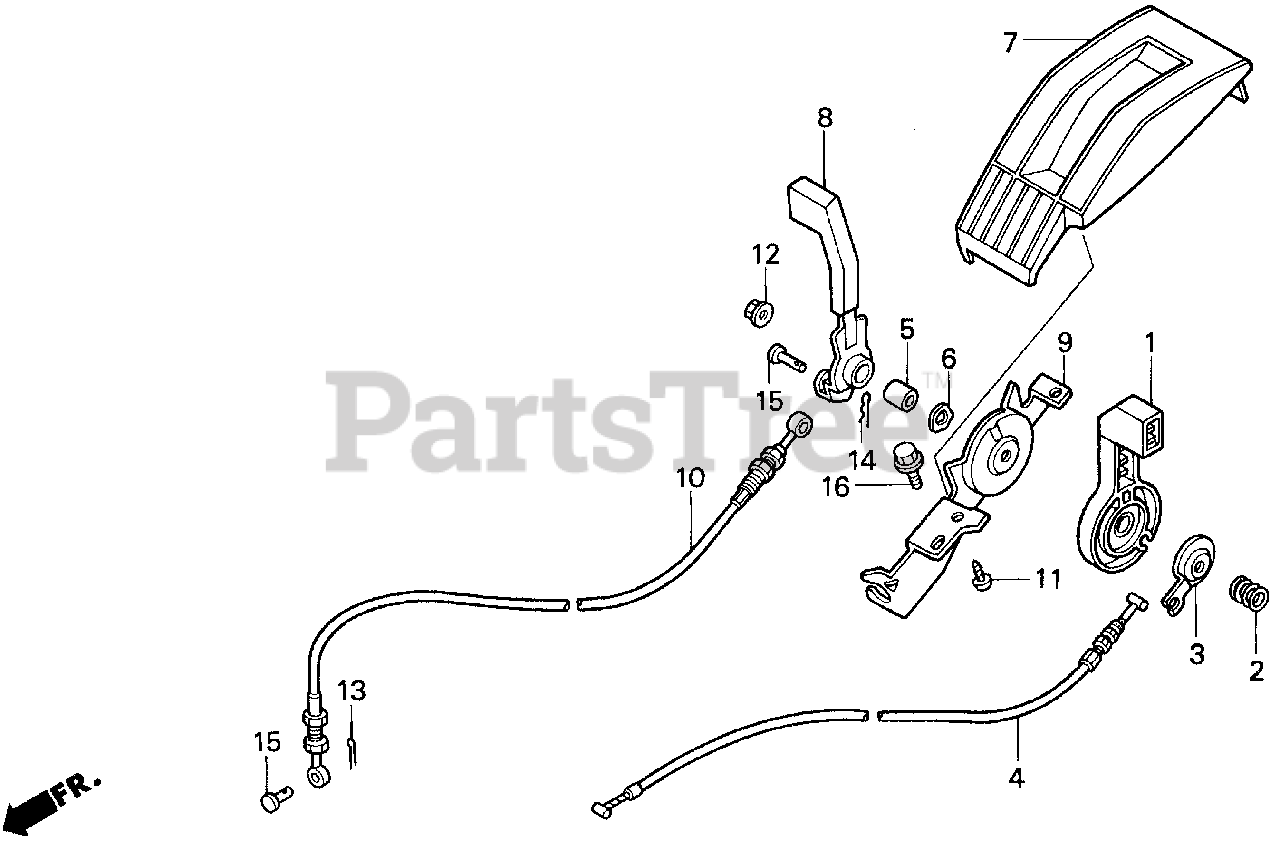

SXA,SMA THROTTLE LEVER Parts Diagram

  • Title

1

Honda 17851-VA3-D00

SEE PART DETAILS - SUP; LEVER, THROTTLE
(Superseded to 17851-VA3-D01)

$4.99

$

In Stock, Qty 12

0

2

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

3

Honda 17859-VA3-800

SEAT, SPRING

$5.99

$

In Stock, Qty 6

0

4

Honda 17910-VA3-003

SEE PART DETAILS - SUP; CABLE, THROTTLE
(Superseded to 17910-VA3-S01)

$10.99

$

In Stock, Qty 11

0

4

Honda 17910-VA3-S01

SEE PART DETAILS - PRI; CABLE, THROTTLE

$10.99

$

In Stock, Qty 11

0

5

Honda 19612-896-700

COLLAR, RECOIL STARTER

$

$

Not available

6

Honda 47363-671-300

WASHER, WAVE (11MM)

$9.49

$

Usually ships in 3-6 days

0

7

Honda 54231-VA3-800

COVER, CONTROL

$32.99

$

Usually ships in 3-6 days

0

8

Honda 54311-VA3-J00

LEVER, CHANGE

$

$

Not available

9

Honda 54315-VA3-J00

PLATE, STOPPER

$

$

Not available

10

Honda 54520-VA3-J01

CABLE, CHANGE

$34.99

$

In Stock, only 1 left!

0

11

Honda 93901-35210

SCREW, TAPPING (5X12)

$0.99

$

In Stock, Qty 6

0

12

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

13

Honda 94201-16120

PIN, SPLIT (1.6X12)

$1.49

$

In Stock, only 4 left!

0

14

Honda 94251-06000

PIN, LOCK (6MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 95015-51000

PIN A, BRAKE ROD JOINT

$

$

Not available

16

Honda 95701-06010-00

BOLT, FLANGE (6X10)

$1.99

$

In Stock, Qty 13

0
