HR195 SXA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) CYLINDER HEAD Parts Diagram

19" Walk-Behind Mower, Made in USA

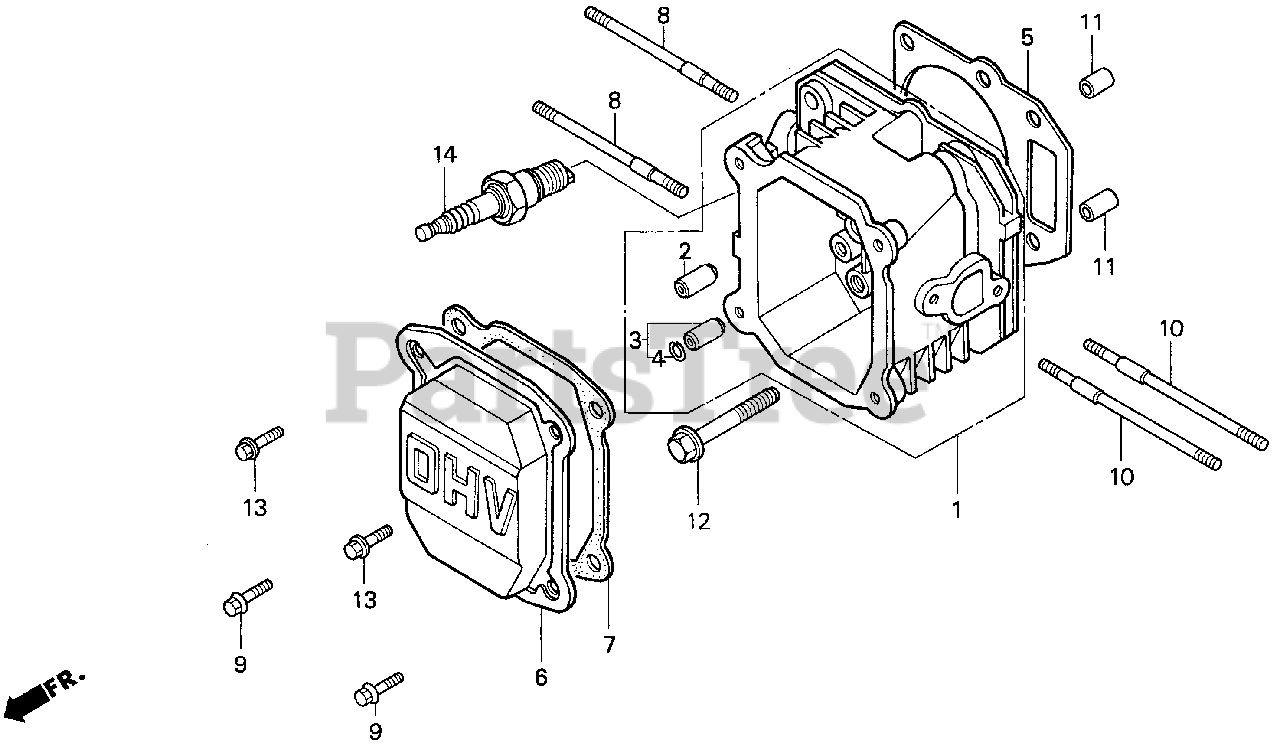

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 06120-ZG9-305

CYLINDER HEAD

$

$

Not available

2

Honda 12204-ZE1-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OS)

$

$

Not available

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OS)

$

$

Not available

3

Honda 12205-ZE1-315

GUIDE, EX. VALVE (OS)

$10.99

$

In Stock, only 3 left!

0

4

Honda 12216-ZE5-300

CLIP, VALVE GUIDE

$1.99

$

In Stock, Qty 18

0

5

Honda 12251-ZG9-000

GASKET, CYLINDER HEAD

$24.99

$

In Stock, only 1 left!

0

6

Honda 12310-ZE7-000

SEE PART DETAILS - PRI; COVER, HEAD

$23.99

$

Usually ships in 3-6 days

0

7

Honda 12391-ZE7-M10

GASKET, HEAD COVER

$11.99

$

In Stock, Qty 9

0

7

Honda 12391-ZE7-T00

GASKET, CYLINDER HEAD COVER

$6.49

$

In Stock, only 2 left!

0

8

Honda 90013-ZG9-T00

BOLT, STUD (6X83)

$5.99

$

In Stock, only 4 left!

0

9

Honda 90016-ZE6-T00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X13)

$2.99

$

Usually ships in 3-6 days

0

10

Honda 90043-ZE6-T00

BOLT, STUD (6X97)

$

$

Not available

11

Honda 94301-10160

PIN, DOWEL (10X16)

$3.49

$

In Stock, only 3 left!

0

12

Honda 95701-08050-00

BOLT, FLANGE (8X50)

$3.49

$

In Stock, Qty 5

0

13

Honda 95701-06014-00

BOLT, FLANGE (6X14)

$1.49

$

In Stock, Qty 5

0

14

Honda 98079-54841

SPARK PLUG (BP4ES) (NGK)
(Superseded to BPR4ES)

$3.49

$

In Stock, only 1 left!

0

14

Honda 98079-54855

SPARK PLUG (W14EPR-U) (DENSO)

$3.99

$

In Stock, only 3 left!

0

14

Honda 98079-55841

SEE PART DETAILS - PRI; SPARK PLUG (BP5ES) (NGK)

$2.99

$

Usually ships in 3-6 days

0

14

Honda 98079-55854

SPARK PLUG (W16EP-U) (DENSO)

$3.49

$

In Stock, only 1 left!

0

14

Honda 98079-56841

SEE PART DETAILS - PRI; SPARK PLUG (BP6ES) (NGK)
(Superseded to BPR6ES)

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-56854

SEE PART DETAILS - PRI; SPARK PLUG (W20EP-U) (DENSO)
(Superseded to 98079-56855)

$3.99

$

In Stock, Qty 11

0
