HR195 PDA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) REAR WHEEL Parts Diagram
19" Walk-Behind Mower, Made in USA

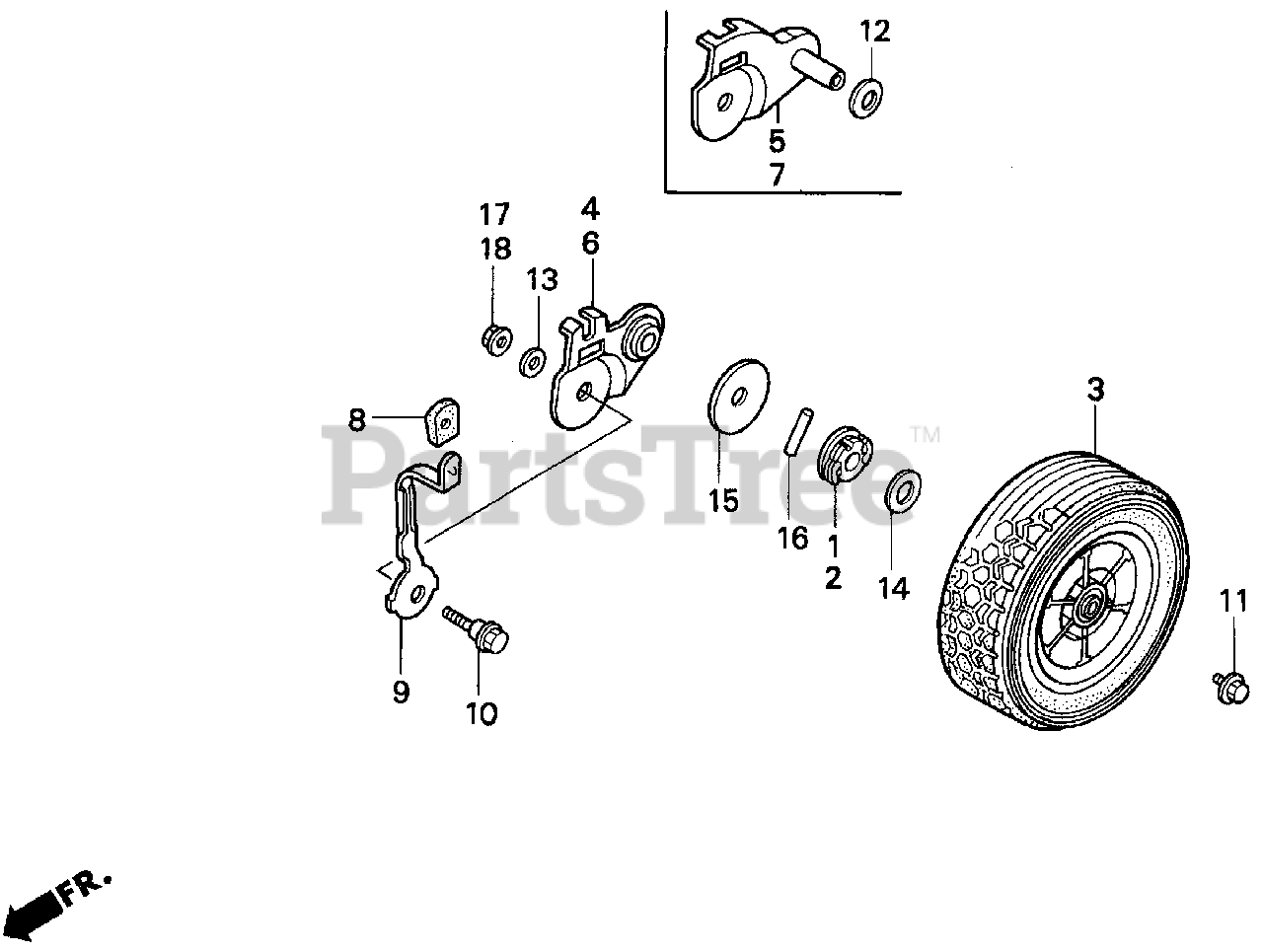

REAR WHEEL Parts Diagram
Honda 42751-VA3-J00
SEE PART DETAILS - PRI; TIRE (8 INCH)
$29.99
$
Usually ships in 3-6 days
Honda 42710-VA3-J00
SEE PART DETAILS - PRI; WHEEL (8") *NH31* (MCKINLEY WHITE)
$37.99
$
Usually ships in 3-6 days
Honda 42930-VA5-G00
ARM C, L. WHEEL ADJUSTER
$
$
Not available
Honda 42940-VA5-G00
ARM D, R. WHEEL ADJUSTER
$
$
Not available
Honda 42952-952-000
GRIP, ADJUSTER
$4.99
$
In Stock, only 2 left!
Honda 42961-VA3-000
PLATE, RR. ADJUSTER
$13.99
$
In Stock, Qty 5
Honda 90105-VA5-000
BOLT, ADJUSTING CENTER
$5.99
$
In Stock, only 3 left!
Honda 90110-VA4-000
BOLT, WHEEL
$4.49
$
In Stock, Qty 19
Honda 90455-VA2-000
WASHER, WHEEL
$4.49
$
In Stock, Qty 20+
Honda 90524-030-000
SEE PART DETAILS - PRI; WASHER A, HANDLE HOLDER SETTING
$1.99
$
In Stock, only 3 left!
Honda 94001-08000-0S
NUT, HEX. (8MM) (RIGHT SIDE)
$1.99
$
In Stock, Qty 10
Honda 94050-08000
SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (LEFT SIDE)
$1.49
$
In Stock, Qty 20+
