HR195 PDA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) HR195PDAFLYWHEEL Parts Diagram

19" Walk-Behind Mower, Made in USA

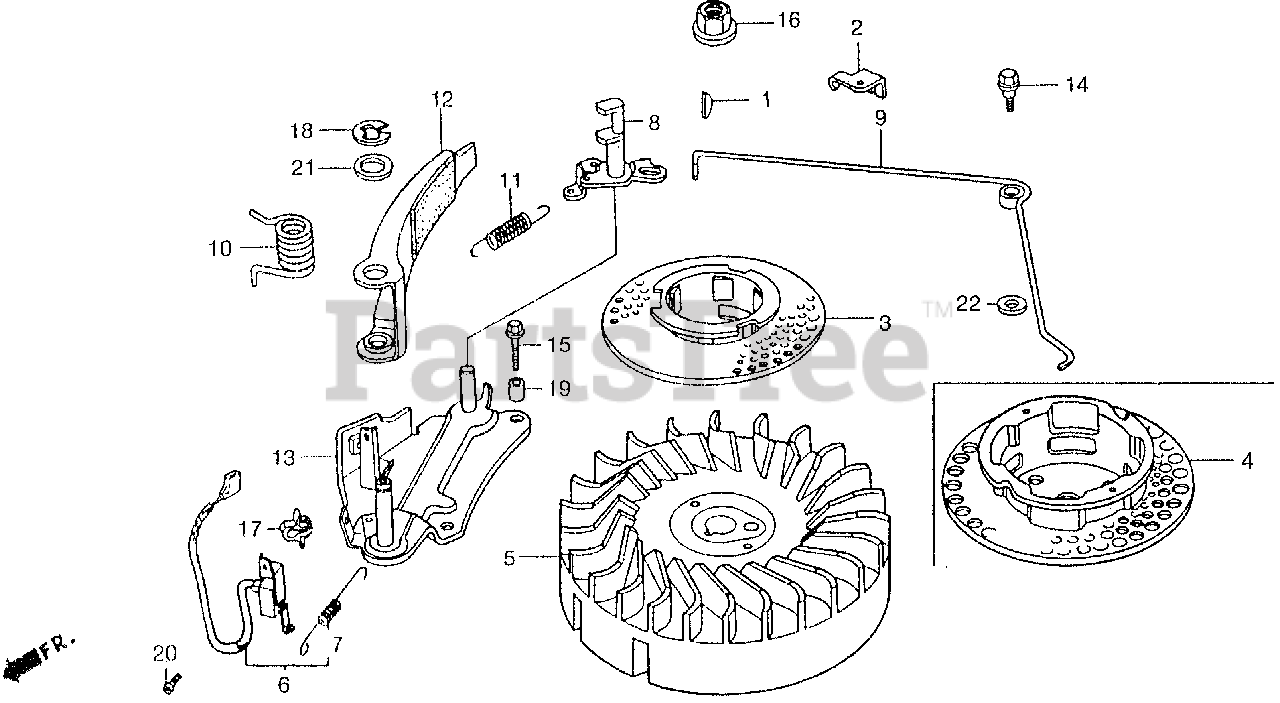

HR195PDAFLYWHEEL Parts Diagram

  • Title

1

Honda 13331-357-000

KEY, SPECIAL WOODRUFF (25X18)

$4.99

$

In Stock, Qty 7

0

2

Honda 16617-ZG9-T40

HOLDER, CABLE

$5.99

$

Usually ships in 3-6 days

0

3

Honda 28451-ZE6-T03

SEE PART DETAILS - PRI; PULLEY, STARTER

Note: Use from Engine SN 6117973.

$

$

Not available

4

Honda 28451-ZE6-003

PULLEY, STARTER

Note: Use up to Engine SN 6117972.

$

$

Not available

5

Honda 31100-ZE6-013

SEE PART DETAILS - PRI; FLYWHEEL

$212.99

$

Usually ships in 3-6 days

0

6

Honda 36100-ZG9-T41

SWITCH ASSY., ENGINE STOP

$

$

Not available

7

Honda 36121-ZE6-000

SPRING, SWITCH CONTROL

$3.99

$

Usually ships in 3-6 days

0

8

Honda 43140-ZE6-000

CAM, BRAKE

$21.99

$

Usually ships in 3-6 days

0

9

Honda 43145-ZE6-020

ROD, THROTTLE RETURN

$

$

Not available

10

Honda 75112-ZE6-000

SPRING, BRAKE

$12.99

$

Usually ships in 3-6 days

0

11

Honda 75113-ZE6-000

SPRING, BRAKE RETURN

$4.49

$

In Stock, Qty 16

0

12

Honda 75120-ZE6-013

SEE PART DETAILS - PRI; BRAKE

$37.99

$

Usually ships in 3-6 days

0

13

Honda 75130-ZG9-T40

BASE, BRAKE

$

$

Not available

14

Honda 90015-ZE6-000

BOLT, FLANGE (6MM)

$3.99

$

Usually ships in 3-6 days

0

15

Honda 95701-06022-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

In Stock, only 1 left!

0

16

Honda 90201-878-003

NUT, SPECIAL (14MM)

$7.99

$

Usually ships in 3-6 days

0

17

Honda 90649-ZG9-T41

CLIP, WIRE HARNESS

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90653-723-000

E-RING (10MM)

$1.99

$

In Stock, only 2 left!

0

19

Honda 90702-ZE6-000

PIN, DOWEL (8X9)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 93500-04008-0A

SCREW, PAN (4X8)

$1.49

$

In Stock, only 4 left!

0

21

Honda 94102-12800

SEE PART DETAILS - PRI; WASHER, PLAIN (12MM)

$

$

Not available

22

Honda 90417-360-000

WASHER, DRUM STOPPER

$2.49

$

Usually ships in 3-6 days

0
