HR195 PDA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) CYLINDER Parts Diagram

19" Walk-Behind Mower, Made in USA

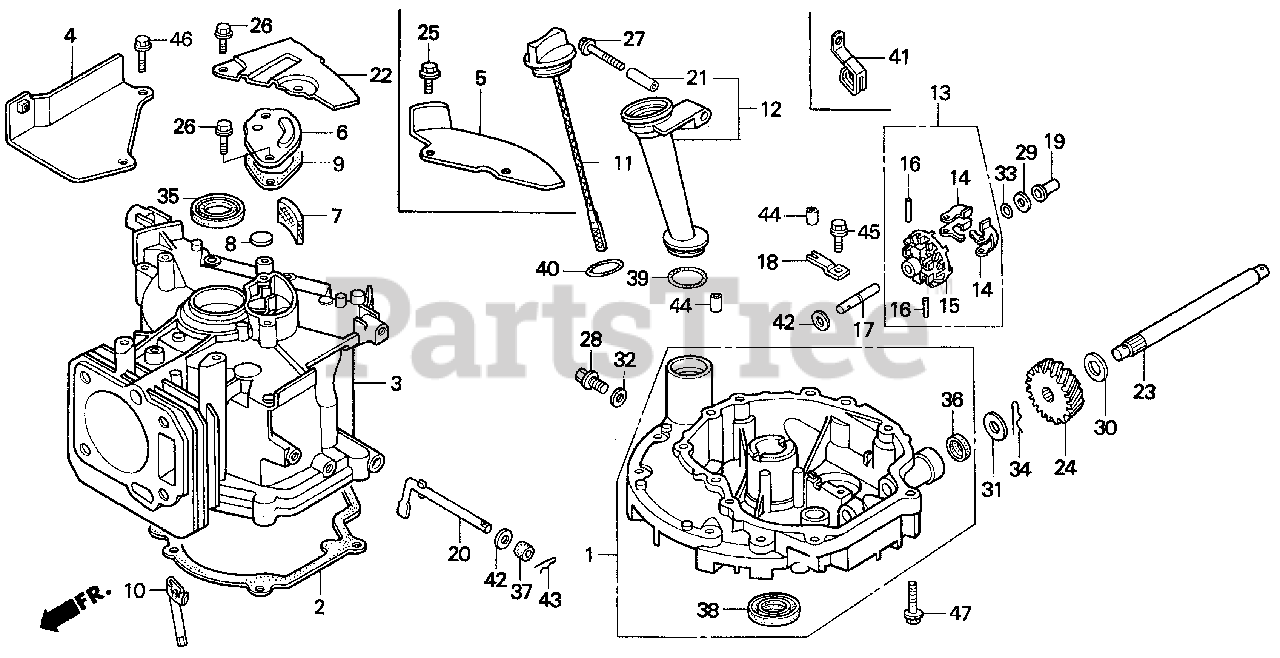

CYLINDER Parts Diagram

  • Title

NI

Honda 06165-ZE6-000

SEE PART DETAILS - SUP; GOVERNOR KIT

$

$

Not available

NI

Honda 06165-ZE6-010

SEE PART DETAILS - PRI; GOVERNOR KIT

$20.99

$

Usually ships in 3-6 days

0

1

Honda 06113-ZE6-315

SEE PART DETAILS - PRI; PAN ASSY., OIL (USA-PUSH)

$223.99

$

Usually ships in 3-6 days

0

2

Honda 11381-ZG9-T00

SEE PART DETAILS - PRI; GASKET, OIL PAN

$12.99

$

In Stock, only 2 left!

0

3

Honda 12100-ZG9-800

SEE PART DETAILS - SUP; CYLINDER
(Superseded to 12100-ZG9-415)

$138.99

$

Usually ships in 3-6 days

0

6

Honda 12360-ZE6-000

CAP, BREATHER CHAMBER

$

$

Not available

7

Honda 12367-ZE6-010

FILTER, BREATHER

$3.99

$

In Stock, only 1 left!

0

8

Honda 12372-879-000

VALVE, BREATHER

$2.99

$

In Stock, only 2 left!

0

9

Honda 12373-ZE6-000

GASKET, BREATHER CHAMBER

$2.99

$

In Stock, Qty 6

0

10

Honda 12385-ZE6-000

PIPE, OIL DEFENSE

$

$

Not available

11

Honda 15620-ZE6-810

SEE PART DETAILS - PRI; DIPSTICK, OIL

$12.99

$

In Stock, only 1 left!

0

12

Honda 15630-ZE6-810

EXTENSION, OIL FILLER

$56.99

$

In Stock, only 1 left!

0

13

Honda 16510-ZE6-000

GOVERNOR ASSY.

$25.99

$

In Stock, only 1 left!

0

14

Honda 16511-ZE1-000

WEIGHT, GOVERNOR

$4.49

$

Usually ships in 3-6 days

0

15

Honda 16512-ZE6-000

HOLDER, GOVERNOR WEIGHT

$15.99

$

Usually ships in 3-6 days

0

16

Honda 16513-ZE1-000

PIN, GOVERNOR WEIGHT

$2.49

$

Usually ships in 3-6 days

0

17

Honda 16515-ZE6-000

SEE PART DETAILS - SUP; SHAFT, GOVERNOR HOLDER
(Superseded to 16515-ZE6-010)

$7.49

$

Usually ships in 3-6 days

0

17

Honda 16515-ZE6-010

SEE PART DETAILS - PRI; SHAFT, GOVERNOR HOLDER

$7.49

$

Usually ships in 3-6 days

0

18

Honda 16525-ZE6-010

PLATE, GOVERNOR SHAFT HOLDER

$7.49

$

Usually ships in 3-6 days

0

19

Honda 16531-ZE1-000

SEE PART DETAILS - PRI; SLIDER, GOVERNOR

$3.49

$

In Stock, Qty 8

0

20

Honda 16541-ZE7-000

SHAFT, GOVERNOR ARM

$15.99

$

Usually ships in 3-6 days

0

21

Honda 17240-ZE6-000

COLLAR, EXTENSION

$4.99

$

In Stock, only 1 left!

0

22

Honda 17517-ZE6-000

STAY, TANK

$

$

Not available

26

Honda 90014-952-000

BOLT, FLANGE (6X14) (CT200)

$3.49

$

In Stock, only 3 left!

0

27

Honda 90014-ZE6-000

BOLT, FLANGE (6X35) (CT200)

$2.99

$

In Stock, Qty 6

0

28

Honda 90131-ZE1-000

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG

$3.49

$

In Stock, only 2 left!

0

29

Honda 90451-ZE1-000

SEE PART DETAILS - PRI; WASHER, THRUST (6MM)

$2.49

$

In Stock, only 2 left!

0

32

Honda 90601-ZE1-000

WASHER, DRAIN PLUG (10.2MM)

$1.49

$

In Stock, Qty 20+

0

33

Honda 90602-ZE1-000

SEE PART DETAILS - PRI; CLIP, GOVERNOR HOLDER

$1.99

$

In Stock, only 3 left!

0

35

Honda 91202-ZE6-000

SEE PART DETAILS - SUP; OIL SEAL (22X35X6)

$

$

Currently unavailable

35

Honda 91202-ZE6-003

SEE PART DETAILS - SUP; OIL SEAL (22X35X6)
(Superseded to 91202-ZE6-013)

$10.99

$

In Stock, Qty 20+

0

35

Honda 91202-ZE6-013

SEE PART DETAILS - PRI; OIL SEAL (22X35X6)

$10.99

$

In Stock, Qty 20+

0

37

Honda 91231-891-003

OIL SEAL (6X11X4) (ARAI)

$3.49

$

In Stock, only 1 left!

0

38

Honda 91201-ZG9-U71

SEE PART DETAILS - PRI; OIL SEAL (25X38X7)

$4.99

$

In Stock, Qty 7

0

38

Honda 91252-888-003

SEE PART DETAILS - SUP; OIL SEAL (25X38X7) (ARAI)
(Superseded to 91201-ZG9-U71)

$4.99

$

In Stock, Qty 7

0

39

Honda 91301-ZE9-003

SEE PART DETAILS - PRI; O-RING (22.5X2.2)

$2.49

$

In Stock, Qty 12

0

40

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 10

0

42

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

43

Honda 94251-08000

PIN, LOCK (8MM)

$1.99

$

In Stock, Qty 9

0

44

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

45

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

45

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

47

Honda 95701-06028-00

BOLT, FLANGE (6X28)

$2.49

$

In Stock, Qty 7

0
