HR195 PDA (MZAK) - Honda 19" Walk-Behind Mower, Made in USA (SN: MZAK-6000001 - MZAK-9999999) CARBURETOR Parts Diagram

19" Walk-Behind Mower, Made in USA

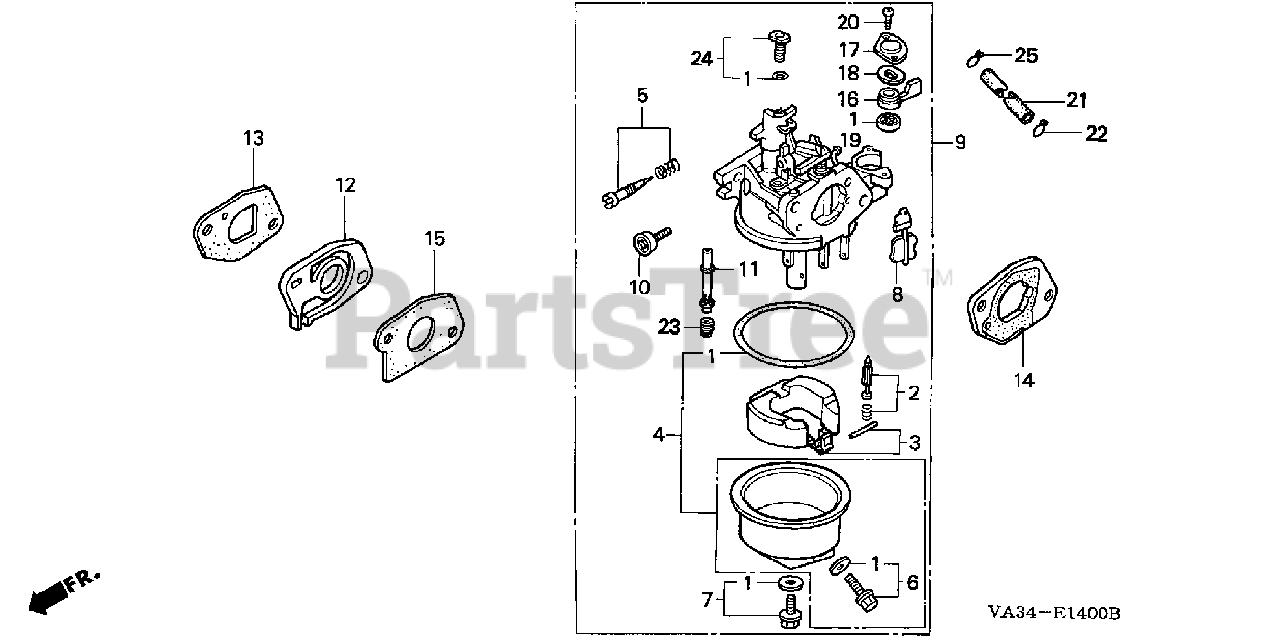

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZE0-025

SEE PART DETAILS - PRI; GASKET SET

$21.99

$

In Stock, Qty 10

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT

$31.99

$

In Stock, Qty 11

0

3

Honda 16013-ZE0-005

FLOAT SET

$33.99

$

In Stock, only 2 left!

0

4

Honda 16015-ZE0-831

SEE PART DETAILS - PRI; CHAMBER SET, FLOAT

$40.99

$

In Stock, only 2 left!

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT

$16.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN

$11.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET
(Superseded to 16028-ZK7-S91)

$14.99

$

In Stock, Qty 8

0

8

Honda 16045-ZE7-005

CHOKE SET

$37.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZG9-T41

CARBURETOR ASSY. (BE46B A)

$

$

Not available

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP

$18.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG9-T40

NOZZLE, MAIN

$

$

Not available

12

Honda 16211-ZG9-000

INSULATOR, CARBURETOR

$12.99

$

In Stock, only 4 left!

0

13

Honda 16212-ZG9-T00

GASKET, CARBURETOR

$5.99

$

In Stock, Qty 11

0

14

Honda 16220-ZE6-010

SEE PART DETAILS - PRI; SPACER, CARBURETOR

$8.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZG9-J60

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZG9-T00

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-ZH8-801)

$2.49

$

In Stock, Qty 20+

0

15

Honda 16221-ZH8-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.49

$

In Stock, Qty 20+

0

16

Honda 16953-ZE6-005

SEE PART DETAILS - SUP; LEVER, VALVE
(Superseded to 16953-ZE6-015)

Note: Use up to Engine SN BE46B A.

$8.49

$

In Stock, only 1 left!

0

16

Honda 16953-ZE6-015

SEE PART DETAILS - PRI; LEVER, VALVE

Note: Use from Engine SN BE46B B.

$8.49

$

In Stock, only 1 left!

0

17

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING

$4.49

$

In Stock, Qty 11

0

18

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER

$4.49

$

In Stock, Qty 9

0

19

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, PETCOCK

$4.99

$

In Stock, Qty 20+

0

20

Honda 93500-03006-0H

SCREW, PAN (3X6)

Note: Use from Engine SN BE46B B.

$1.49

$

In Stock, only 3 left!

0

20

Honda 93500-03008-0G

SCREW, PAN (3X8)

Note: Use up to Engine SN BE46B A.

$

$

Not available

23

Honda 99101-ZF5-0580

SEE PART DETAILS - SUP; JET, MAIN (#58)
(Superseded to 99101-ZK7-0580)

$9.49

$

Usually ships in 3-6 days

0

23

Honda 99101-ZF5-0620

JET, MAIN (#62)

$12.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZH8-0600

SEE PART DETAILS - SUP; JET, MAIN (#60)

$

$

Not available

23

Honda 99101-ZK7-0600

SEE PART DETAILS - PRI; JET, MAIN (#60)

$11.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35)

$24.99

$

In Stock, only 4 left!

0
