HR194 PXA (HR194) - Honda 19" Walk-Behind Mower, Made in Japan (SN: HR194-1000001 - HR194-9999999) HR194 CUTTER HOUSING Parts Diagram

19" Walk-Behind Mower, Made in Japan

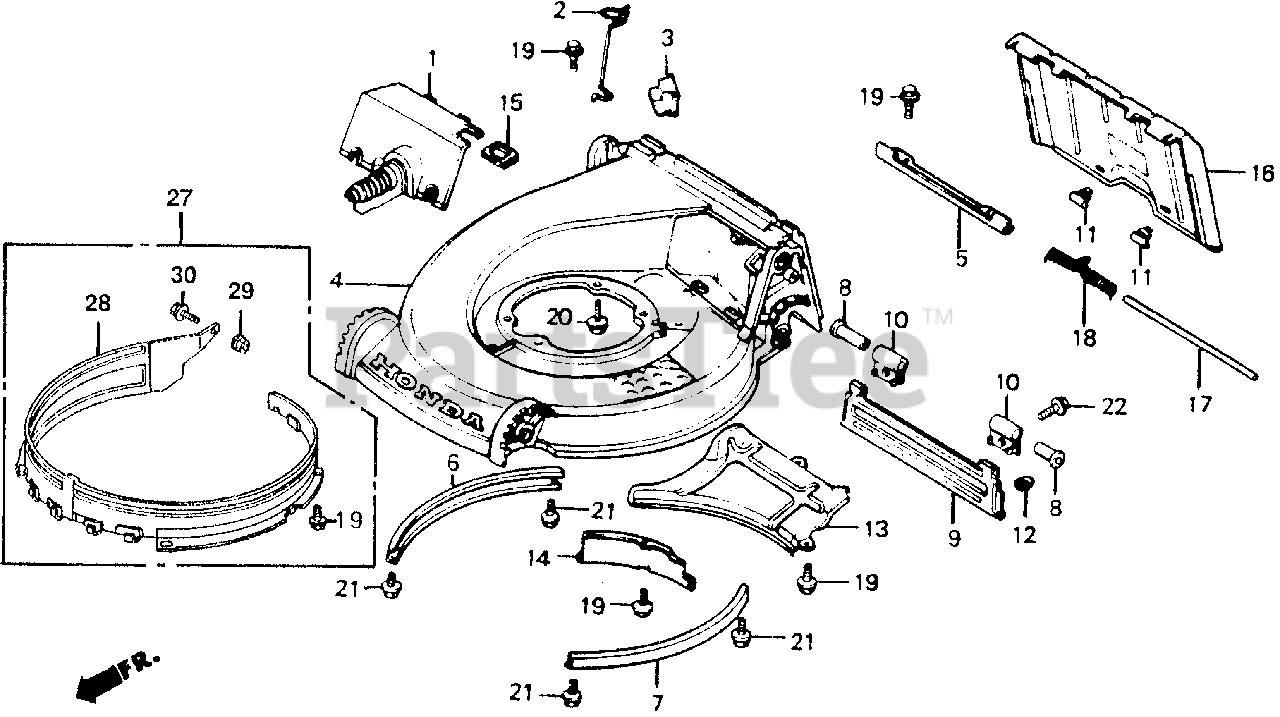

HR194 CUTTER HOUSING Parts Diagram

  • Title

2

Honda 54515-VA5-000

GUIDE, CABLE

$

$

Not available

3

Honda 75136-VA5-000

GROMMET D, CABLE

$

$

Not available

4

Honda 761A1-VA5-010

HOUSING, CUTTER

Note: Use up to Frame SN 1262913.

$

$

Currently unavailable

5

Honda 76113-VA5-000

HINGE, DISCHARGE GUARD

$

$

Not available

6

Honda 76115-VA5-640

GUARD, R. HOUSING

$

$

Not available

7

Honda 76116-VA5-640

GUARD, L. HOUSING

$

$

Not available

8

Honda 76117-VA5-000

BUSH, SAFETY SHIELD

$

$

Not available

9

Honda 76118-VA5-000

SHIELD, SAFETY

$

$

Not available

10

Honda 76119-VA3-000

HANGER, SAFETY SHIELD

$7.99

$

In Stock, only 2 left!

0

11

Honda 76122-VA4-000

STOPPER, DISCHARGE GUARD

$4.49

$

In Stock, only 2 left!

0

13

Honda 76151-VA5-000

GUIDE, SCROLL

$

$

Not available

14

Honda 76152-VA5-000

LID, ROTO-STOP COVER

$

$

Not available

16

Honda 76310-VA5-000

SEE PART DETAILS - SUP; GUARD, DISCHARGE

$

$

Currently unavailable

16

Honda 76310-VA5-000ZB

SEE PART DETAILS - PRI; GUARD, DISCHARGE *NH105* (MAT BLACK)

$

$

Not available

17

Honda 76312-VA5-000

SHAFT, DISCHARGE GUARD

$13.99

$

Usually ships in 3-6 days

0

18

Honda 76314-VA5-000

SEE PART DETAILS - SUP; SPRING, GUARD RETURN
(Superseded to 76314-VA5-010)

$5.99

$

In Stock, only 2 left!

0

19

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

19

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200) Use from Frame SN 1292914.

$1.99

$

In Stock, Qty 20+

0

20

Honda 90102-VA5-000

BOLT, ENGINE SETTING

$4.99

$

Usually ships in 3-6 days

0

21

Honda 90107-VA5-640

BOLT, FLANGE (6X10)

$2.49

$

In Stock, only 2 left!

0

22

Honda 95700-06012-00

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Not available

22

Honda 95701-06012-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, Qty 20+

0

27

Honda 06761-VA5-000

SEE PART DETAILS - PRI; LINER KIT (INNER) (PUSH TYPE) Use from Frame SN 1242914.

$

$

Currently unavailable

28

Honda 76140-VA5-000

SEE PART DETAILS - SUP; LINER (INNER) (PUSH TYPE) Use from Frame SN 1262914.

$

$

Currently unavailable

29

Honda 94050-06080

NUT, FLANGE (6MM) Use from Frame SN 1262914.

$0.99

$

In Stock, only 3 left!

0

30

Honda 95701-06016-08

BOLT, FLANGE (6X16) Use from Frame SN 1262914.

$1.99

$

In Stock, Qty 5

0
