HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 UPPER HANDLE PIPE Parts Diagram

17" Walk-Behind Mower, Made in USA

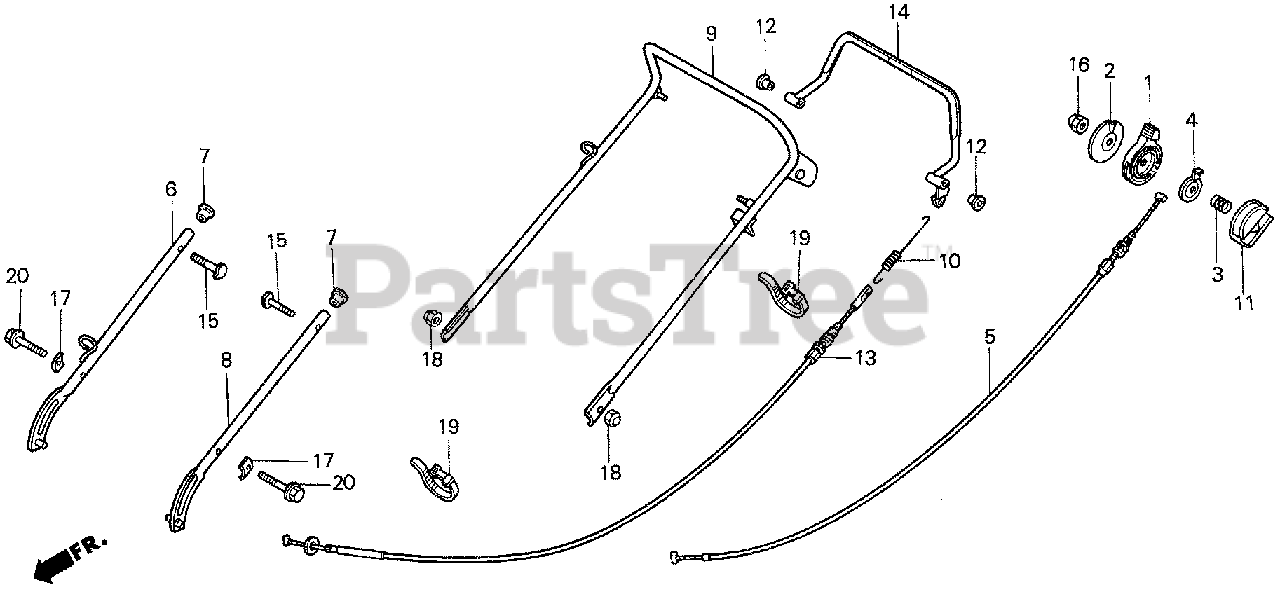

HR173 UPPER HANDLE PIPE Parts Diagram

  • Title
1

Honda 17851-VA2-000

LEVER, THROTTLE

$12.99

$

In Stock, only 1 left!

0

2

Honda 17857-VA4-000

PLATE, THROTTLE LEVER

$7.49

$

Usually ships in 3-6 days

0

3

Honda 17858-VA4-000

SPRING, THROTTLE LEVER

$4.49

$

Usually ships in 3-6 days

0

4

Honda 17859-VA4-000

SEAT, SPRING

$5.99

$

Usually ships in 3-6 days

0

5

Honda 17910-VA9-000

CABLE, THROTTLE

$

$

Not available

6

Honda 53110-VA9-G00

PIPE, R. HANDLE (LOWER)

$

$

Not available

7

Honda 53115-VA9-000

CAP, HANDLE (LOWER)

$3.99

$

Usually ships in 3-6 days

0

8

Honda 53120-VA9-G00

SEE PART DETAILS - SUP; PIPE, L. HANDLE (LOWER)

$

$

Not available

8

Honda 53120-VD4-G00

SEE PART DETAILS - PRI; PIPE, L. HANDLE (LOWER)

$

$

Currently unavailable

9

Honda 53150-VA9-G00

SEE PART DETAILS - PRI; PIPE, HANDLE (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 53150-VA9-000

SEE PART DETAILS - SUP; PIPE, HANDLE (UPPER) (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 53411-VA2-010

SPRING, BRAKE

$

$

Not available

11

Honda 54231-VA4-000

COVER, CONTROL

$

$

Not available

12

Honda 54412-952-770

BUSH, CLUTCH LEVER

$4.99

$

In Stock, Qty 20+

0

13

Honda 54530-VA9-G00

SEE PART DETAILS - SUP; CABLE, BRAKE
(Superseded to 54530-VA9-000)

$33.99

$

Usually ships in 3-6 days

0

13

Honda 54530-VA9-000

SEE PART DETAILS - PRI; CABLE, BRAKE

$33.99

$

Usually ships in 3-6 days

0

14

Honda 75171-VA9-000

LEVER, BRAKE (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 90109-963-000

BOLT, HANDLE HOLDER

$

$

Not available

16

Honda 90201-415-000

NUT, CAP (6MM)

$2.99

$

In Stock, Qty 12

0

16

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0

17

Honda 90501-898-000

WASHER, FRAME JOINT

$2.99

$

In Stock, Qty 10

0

18

Honda 94021-08000-0S

NUT, CAP (8MM)

$2.49

$

In Stock, Qty 7

0

19

Honda 32901-VB5-800

TIE, CABLE

$3.49

$

In Stock, only 2 left!

0

19

Honda 95014-62100

BAND B1, WIRE

$1.99

$

In Stock, Qty 5

0

20

Honda 95800-08040-00

SEE PART DETAILS - SUP; BOLT, FLANGE (8X40)

$

$

Currently unavailable

20

Honda 95801-08040-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X40)

$1.99

$

Usually ships in 3-6 days

0
