HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 ROTARY BLADE Parts Diagram

17" Walk-Behind Mower, Made in USA

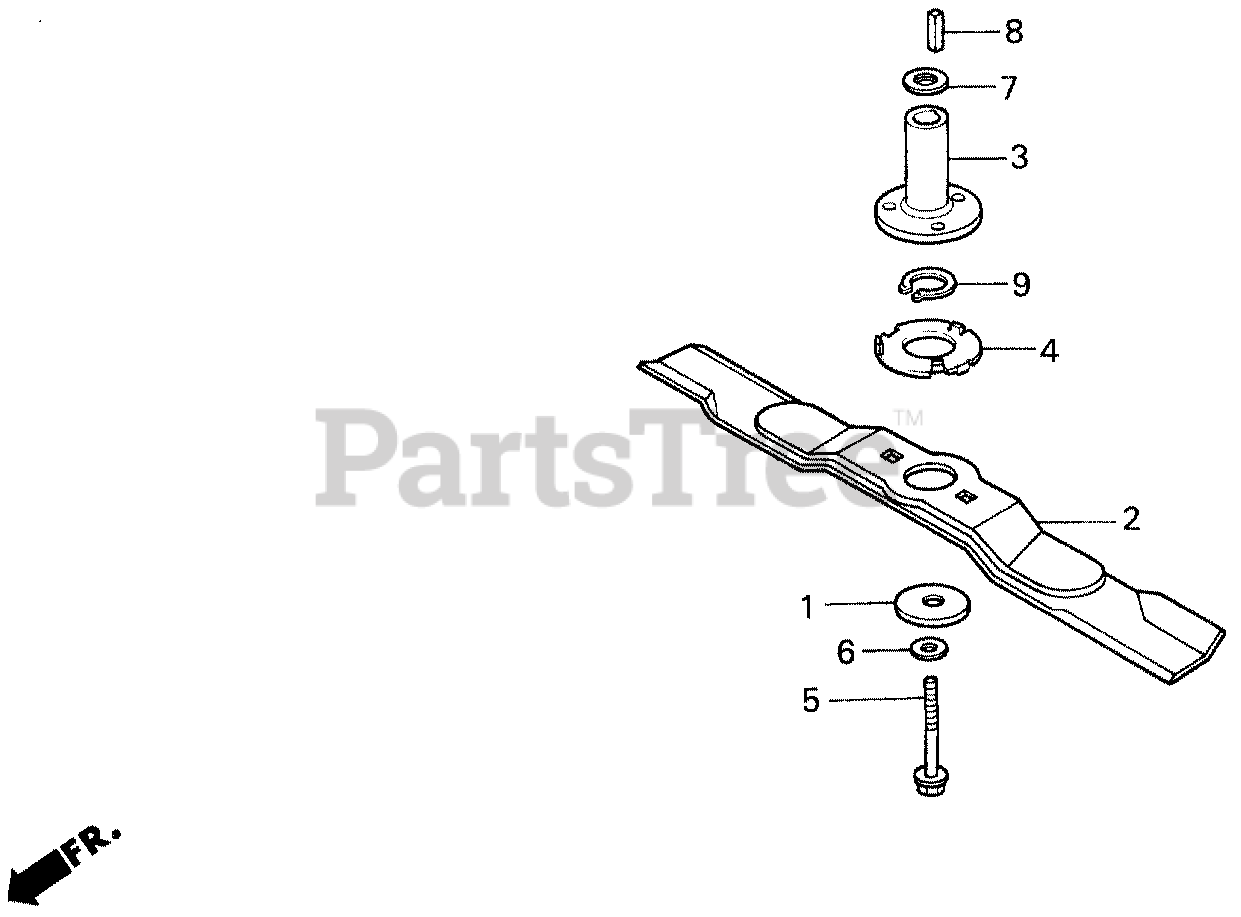

HR173 ROTARY BLADE Parts Diagram

  • Title
1

Honda 40213-041-730

WASHER (42X8.5)

$

$

Not available

2

Honda 72511-VA9-G00

SEE PART DETAILS - PRI; BLADE, ROTARY

$17.99

$

In Stock, only 2 left!

0

3

Honda 72610-VA9-000

HOLDER, BLADE

$

$

Not available

4

Honda 72612-VA9-000

WASHER, BLADE HOLDER

$

$

Not available

5

Honda 90108-VA9-000

BOLT, UBS (8X50)

$7.99

$

Usually ships in 3-6 days

0

6

Honda 90436-VA3-000

WASHER, SPECIAL (22X8.5X2)

$4.49

$

In Stock, only 2 left!

0

6

Honda 90436-VA3-000

WASHER, SPECIAL (22X8.5X2)

Note: Use from Frame SN 1001552.

$4.49

$

In Stock, only 2 left!

0

7

Honda 90501-VA7-000

WASHER, THRUST

$

$

Not available

7

Honda 90501-VA7-000

WASHER, THRUST

Note: Use from Frame SN 1001552.

$

$

Not available

8

$10.99

$

Usually ships in 3-6 days

0

9

Honda 94520-17000

CIRCLIP (INNER) (17MM)

Note: Use up to Frame SN 1043771.

$1.99

$

In Stock, only 3 left!

0
