HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 MUFFLER Parts Diagram

17" Walk-Behind Mower, Made in USA

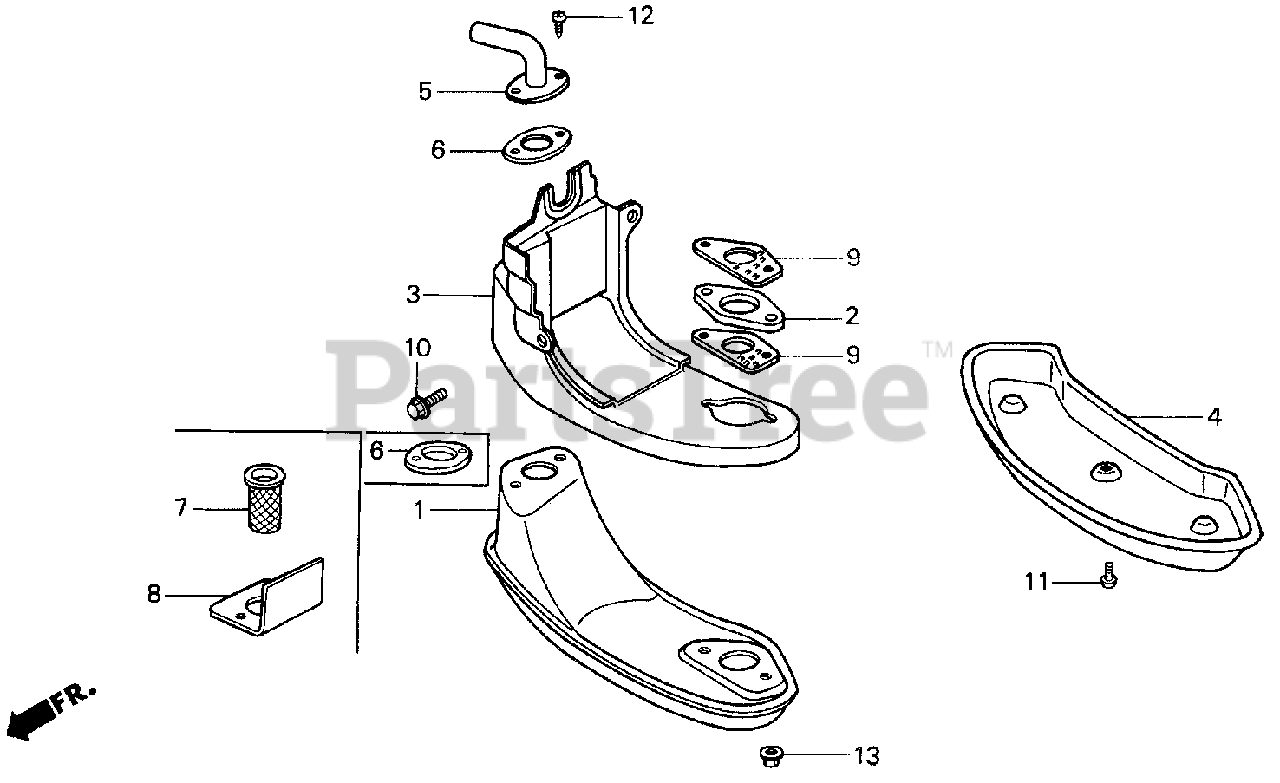

HR173 MUFFLER Parts Diagram

  • Title

1

Honda 18310-ZG1-701

SEE PART DETAILS - SUP; MUFFLER
(Superseded to 18310-ZG1-703)

Note: Use up to Engine SN 2280716.

$

$

Not available

1

Honda 18310-ZG1-703

SEE PART DETAILS - PRI; MUFFLER

$

$

Not available

2

Honda 18312-ZG1-700

FLANGE, MUFFLER

$

$

Not available

3

Honda 18320-ZG1-704

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$

$

Not available

3

Honda 18320-ZG1-704

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

Note: Use from Engine SN 2249492 to 2345245.

$

$

Not available

4

Honda 18325-ZG1-701

PROTECTOR, MUFFLER (LOWER)

$21.99

$

Usually ships in 3-6 days

0

5

Honda 18331-ZG1-700

PIPE, TAIL

$

$

Not available

6

Honda 18332-ZG1-J30

GASKET, TAIL PIPE

Note: Use from Engine SN 2280717.

$2.99

$

Usually ships in 3-6 days

0

6

Honda 18332-ZG1-J30

GASKET, TAIL PIPE

Note: Use up to Engine SN 2280716.

$2.99

$

Usually ships in 3-6 days

0

7

Honda 18355-959-620

ARRESTER, SPARK

$

$

Not available

8

Honda 18356-ZG1-700

PLATE, ARRESTER NUMBER

$

$

Not available

9

Honda 18381-ZG0-800

GASKET, MUFFLER

$5.49

$

Usually ships in 3-6 days

0

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

11

Honda 90183-671-003

SCREW, TAPPING (4X8)
(Superseded to 90002-ZG0-003)

Note: Use up to Engine SN 2057377.

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93500-05006-0B

SCREW, PAN (5X6)

Note: Use from Engine SN 2057378.

$

$

Not available

12

Honda 93904-24210

SCREW, TAPPING (4X10)

$0.99

$

Usually ships in 3-6 days

0

13

Honda 94050-06000

NUT, FLANGE (6MM)

$0.99

$

In Stock, Qty 20+

0
