HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in USA (SN: MA2R-6000001 - MA2R-9999999) HR173 GOVERNOR ARM --2490348 Parts Diagram

17" Walk-Behind Mower, Made in USA

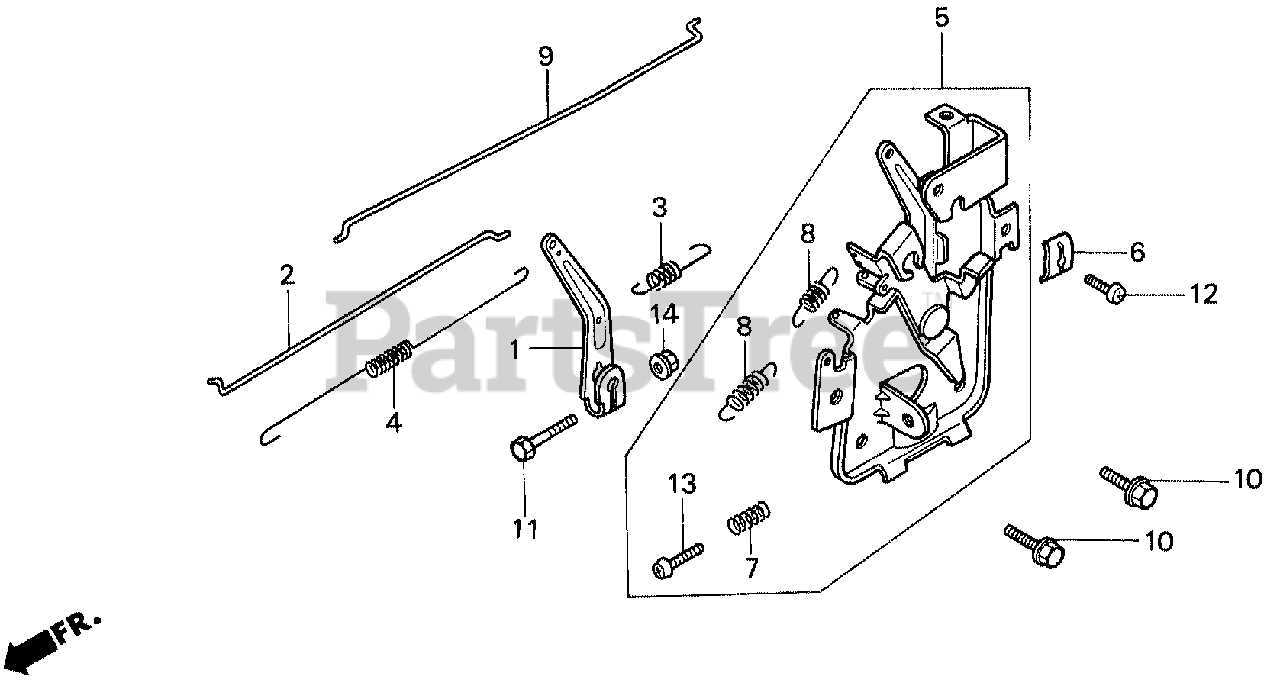

HR173 GOVERNOR ARM --2490348 Parts Diagram

  • Title

1

Honda 16551-896-750

ARM, GOVERNOR

Note: Use up to Engine SN 2490348.

$

$

Not available

2

Honda 16555-ZG1-750

ROD, GOVERNOR

Note: Use up to Engine SN 2490348.

$

$

Not available

3

Honda 16561-ZG1-700

SPRING, GOVERNOR

Note: Use up to Engine SN 2490348.

$4.49

$

In Stock, only 1 left!

0

4

Honda 16562-ZG1-750

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 2490348.

$5.49

$

In Stock, only 2 left!

0

5

Honda 16570-ZG1-711

CONTROL ASSY.

Note: Use up to Engine SN 2490348.

$

$

Not available

6

Honda 16576-891-000

HOLDER, CABLE

Note: Use up to Engine SN 2490348.

$4.99

$

Usually ships in 3-6 days

0

7

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: Use up to Engine SN 2490348.

$4.99

$

In Stock, Qty 7

0

8

Honda 16593-ZG1-750

SPRING, CABLE RETURN

Note: Use up to Engine SN 2490348.

$1.99

$

In Stock, only 1 left!

0

9

Honda 16622-ZG1-750

ROD, CHOKE

Note: Use up to Engine SN 2490348.

$

$

Not available

10

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 2490348.

$1.99

$

In Stock, Qty 20+

0

11

Honda 90015-ZE5-010

BOLT, GOVERNOR ARM

Note: Use up to Engine SN 2490348.

$3.49

$

In Stock, only 3 left!

0

12

Honda 93500-05016-0A

SCREW, PAN (5X16)

Note: Use up to Engine SN 2490348.

$1.49

$

In Stock, Qty 7

0

13

Honda 93500-05020-0A

SCREW, PAN (5X20)

Note: Use up to Engine SN 2490348.

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94050-06000

NUT, FLANGE (6MM)

Note: Use up to Engine SN 2490348.

$0.99

$

In Stock, Qty 20+

0
