HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in Japan (SN: MA2R-1000001 - MA2R-6000000) GOVERNOR ARM 2490349-- Parts Diagram

17" Walk-Behind Mower, Made in Japan

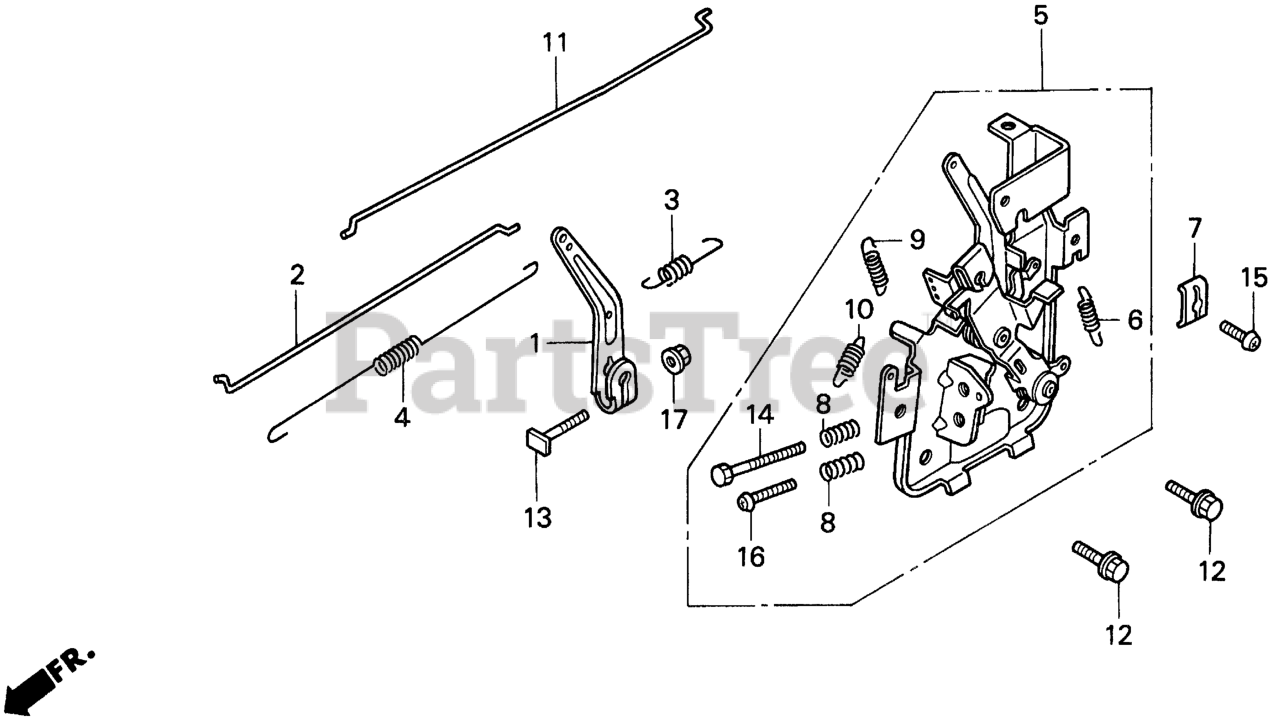

GOVERNOR ARM 2490349-- Parts Diagram

  • Title

1

Honda 16551-896-750

ARM, GOVERNOR

Note: Use from Engine SN 2490349.

$

$

Not available

2

Honda 16555-ZG1-750

ROD, GOVERNOR

Note: Use from Engine SN 2490349.

$

$

Not available

3

Honda 16561-ZG1-700

SPRING, GOVERNOR

Note: Use from Engine SN 2490349.

$4.49

$

In Stock, only 1 left!

0

4

Honda 16562-ZG1-750

SPRING, THROTTLE RETURN

Note: Use from Engine SN 2490349.

$5.49

$

In Stock, only 2 left!

0

5

Honda 16570-ZG1-711

CONTROL ASSY.

Note: Use from Engine SN 2490349.

$

$

Not available

6

Honda 16573-ZG1-700

SPRING, LEVER

Note: Use from Engine SN 2490349.

$

$

Not available

7

Honda 16576-891-000

HOLDER, CABLE (Honda Code 0800466).

Note: Use from Engine SN 2490349.

$4.99

$

In Stock, only 1 left!

0

8

Honda 16584-883-300

SPRING, CONTROL ADJUSTING Use from Engine SN 2327377.

Note: Use from Engine SN 2490349.

$4.99

$

In Stock, Qty 7

0

9

Honda 16593-ZG1-700

SPRING, CONTROL LEVER RETURN

Note: Use from Engine SN 2490349.

$2.99

$

Usually ships in 3-6 days

0

10

Honda 16593-ZG1-750

SPRING, CABLE RETURN

Note: Use from Engine SN 2490349.

$1.99

$

In Stock, only 1 left!

0

11

Honda 16622-ZG1-750

ROD, CHOKE

Note: Use from Engine SN 2490349.

$

$

Not available

12

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

Note: Use from Engine SN 2490349.

$1.99

$

In Stock, Qty 20+

0

13

Honda 90015-ZE5-010

SEE PART DETAILS - PRI; BOLT, GOVERNOR ARM (Honda Code 2418671).

Note: Use from Engine SN 2490349.

$3.49

$

In Stock, only 3 left!

0

14

Honda 90016-ZG1-700

BOLT, RECESSED (5X34) (Honda Code 4080461).

Note: Use from Engine SN 2490349.

$3.99

$

Usually ships in 3-6 days

0

15

Honda 93500-05016-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X16) (Honda Code 0145557).

Note: Use from Engine SN 2490349.

$1.49

$

Usually ships in 3-6 days

0

16

Honda 93500-05025-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X25) (Honda Code 0145565).

Note: Use from Engine SN 2490349.

$1.49

$

Usually ships in 3-6 days

0

17

Honda 94050-06000

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0471623).

Note: Use from Engine SN 2490349.

$0.99

$

In Stock, Qty 20+

0
