HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in Japan (SN: MA2R-1000001 - MA2R-6000000) FAN COVER Parts Diagram

17" Walk-Behind Mower, Made in Japan

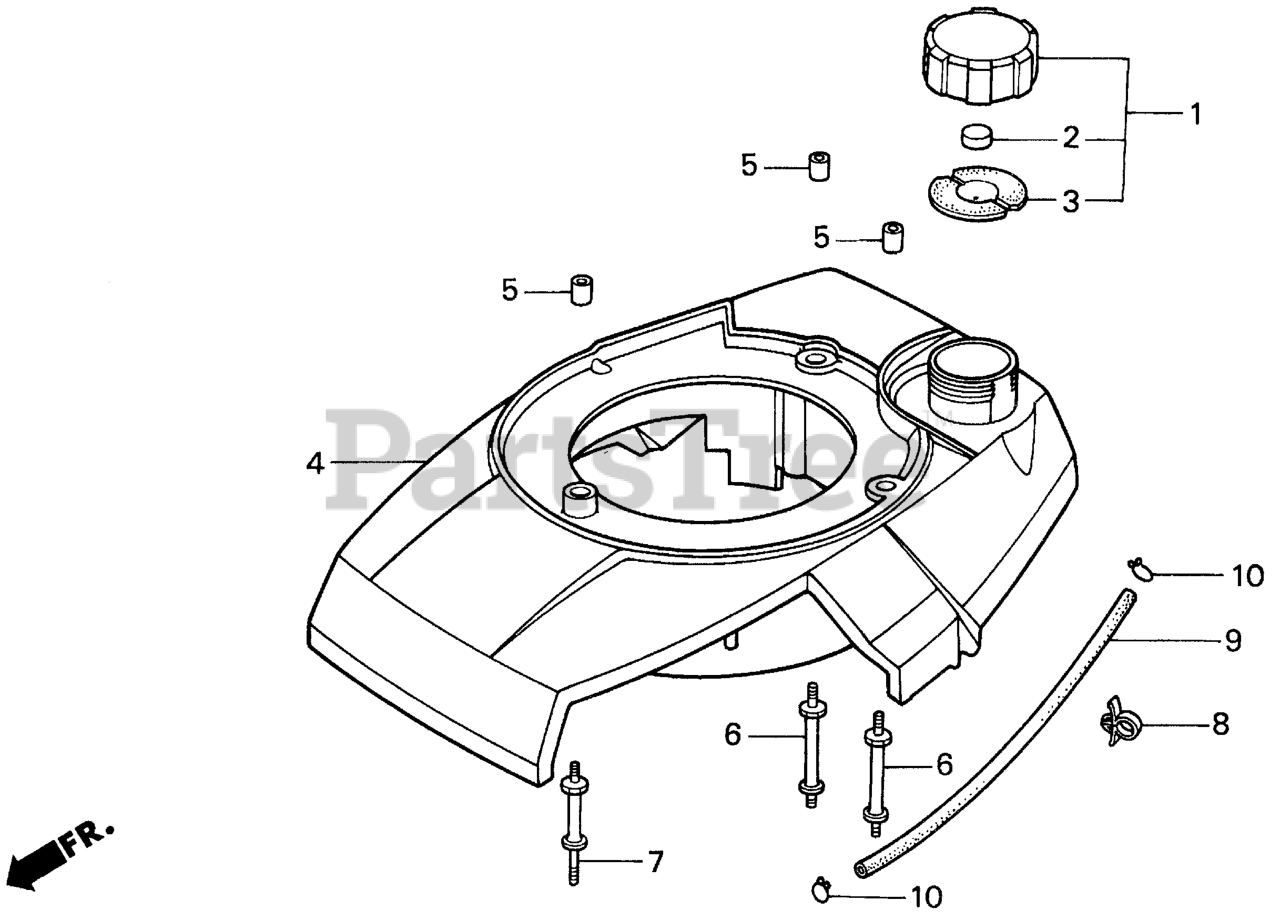

FAN COVER Parts Diagram

  • Title
1

Honda 17620-ZG1-000

CAP ASSY., FUEL TANK

$

$

Not available

2

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

3

Honda 17624-ZE6-000

SEE PART DETAILS - SUP; GASKET, FUEL CAP (Honda Code 1453133).
(Superseded to 17624-ZE7-000)

$4.99

$

Usually ships in 3-6 days

0

3

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 2507689).

$4.99

$

Usually ships in 3-6 days

0

4

Honda 19610-ZG1-700ZA

COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

5

Honda 19612-896-700

COLLAR, RECOIL STARTER

$

$

Not available

6

Honda 90042-ZG1-750

BOLT, SPECIAL STUD

$10.99

$

Usually ships in 3-6 days

0

7

Honda 90043-ZG1-750

BOLT, SPECIAL STUD

$11.99

$

Usually ships in 3-6 days

0

8

Honda 90682-ZE6-000

CLIP, FUEL TUBE

Note: Use up to Engine SN 2197992.

$3.49

$

Usually ships in 3-6 days

0

8

Honda 90682-959-661

CLIP B, CABLE (Honda Code 1064021).

Note: Use from Engine SN 2197993.

$3.99

$

In Stock, only 2 left!

0

9

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (Honda Code 5137104). (4.5X140)

$54.99

$

In Stock, only 4 left!

0

10

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, only 4 left!

0
