HR173 PDA (MA2R) - Honda 17" Walk-Behind Mower, Made in Japan (SN: MA2R-1000001 - MA2R-6000000) CARBURETOR Parts Diagram

17" Walk-Behind Mower, Made in Japan

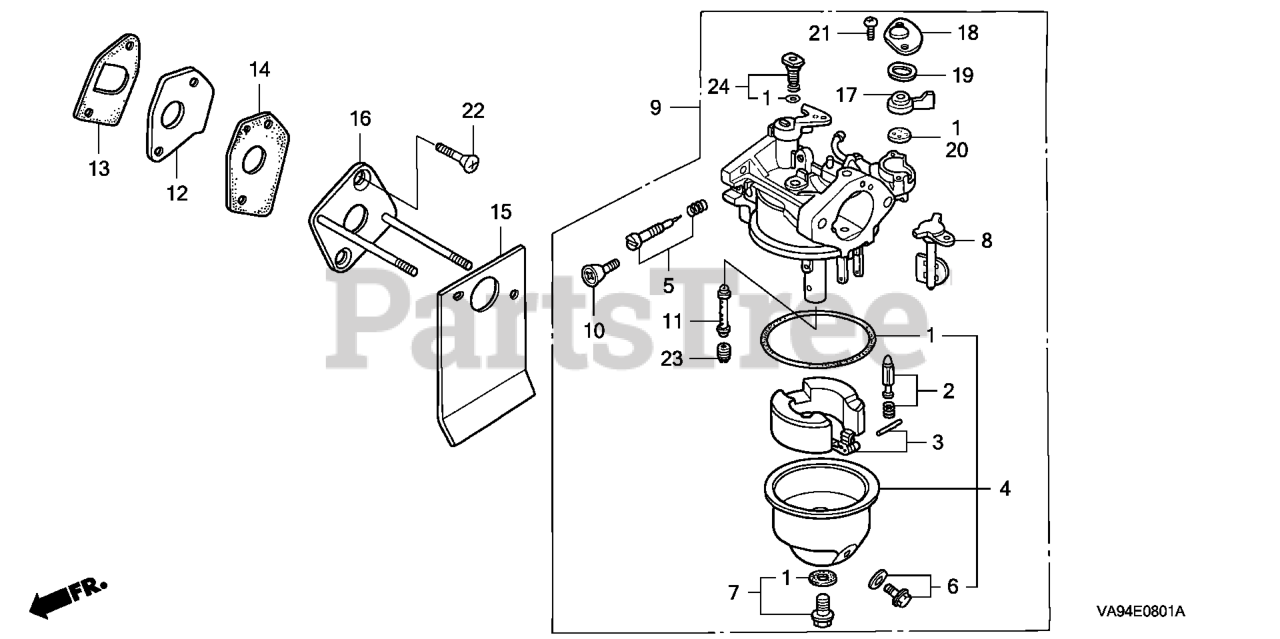

CARBURETOR Parts Diagram

  • Title

1

Honda 16010-ZG1-015

SEE PART DETAILS - PRI; GASKET SET

$19.99

$

In Stock, only 1 left!

0

2

Honda 16011-ZE0-005

VALVE SET, FLOAT (CARBURETOR NO.) (SEAT NOT INCLUDED)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16013-ZG0-811

FLOAT SET

$

$

Not available

4

Honda 16015-ZG0-811

CHAMBER SET, FLOAT (CARBURETOR NO.)

$41.99

$

Usually ships in 3-6 days

0

5

Honda 16016-ZE0-005

SCREW SET, PILOT (Honda Code 1441500). (CARBURETOR NO.)

$15.99

$

In Stock, only 1 left!

0

6

Honda 16024-ZE1-811

SCREW SET, DRAIN (Honda Code 1672187). (CARBURETOR NO.)

$10.99

$

In Stock, only 3 left!

0

7

Honda 16028-ZW6-611

SEE PART DETAILS - PRI; SCREW SET (CARBURETOR NO.)

$15.99

$

Usually ships in 3-6 days

0

8

Honda 16044-ZG1-751

CHOKE SET

$36.99

$

Usually ships in 3-6 days

0

9

Honda 16100-ZG1-703

SEE PART DETAILS - PRI; CARBURETOR ASSY. (BF07A C)

$111.99

$

Usually ships in 3-6 days

0

10

Honda 16124-ZE0-005

SCREW, THROTTLE STOP (Honda Code 1441559).

$17.99

$

In Stock, only 1 left!

0

11

Honda 16166-ZG1-701

NOZZLE, MAIN

$

$

Not available

12

Honda 16211-ZG0-020

SEE PART DETAILS - PRI; INSULATOR, CARBURETOR

$12.99

$

Usually ships in 3-6 days

0

13

Honda 16212-ZG0-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

$2.99

$

In Stock, Qty 10

0

14

Honda 16221-ZG0-801

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$2.99

$

In Stock, Qty 20+

0

15

Honda 16221-ZG1-J31

SEE PART DETAILS - PRI; GASKET, CARBURETOR

$

$

Not available

16

Honda 16225-ZG1-750

PLATE, CARBURETOR JOINT

$

$

Not available

17

Honda 16953-ZG1-405

COVER SET COCK

$

$

Not available

17

Honda 16953-ZG1-405

COVER SET COCK

Note: Use up to Engine SN 2633224.

$

$

Not available

17

Honda 16953-ZG1-752

LEVER, VALVE

Note: Use from Engine SN 2633225.

$

$

Not available

18

Honda 16954-ZE1-812

SEE PART DETAILS - PRI; PLATE, LEVER SETTING (CARBURETOR NO.)

$4.49

$

In Stock, only 1 left!

0

19

Honda 16956-ZE1-811

SEE PART DETAILS - PRI; SPRING, PETCOCK LEVER (CARBURETOR NO.)

$4.49

$

Usually ships in 3-6 days

0

20

Honda 16957-ZE1-812

SEE PART DETAILS - PRI; GASKET, VALVE (Honda Code 3440708).

$4.49

$

In Stock, Qty 20+

0

21

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

$

$

Currently unavailable

21

Honda 93500-03008-1G

SCREW, PAN (3X8) (CARBURETOR NO.)

Note: Use up to Engine SN 2633224.

$

$

Currently unavailable

21

Honda 93500-03006-0H

SEE PART DETAILS - PRI; SCREW, PAN (3X6) (Honda Code 0561654).

Note: Use from Engine SN 2633225.

$1.49

$

In Stock, only 3 left!

0

22

Honda 93600-05020-0H

SCREW, FLAT (3X6)

$0.99

$

Usually ships in 3-6 days

0

23

Honda 99101-ZG0-0550

SEE PART DETAILS - PRI; JET, MAIN (#55) Use from Engine SN BF22B D.

Note: (Optional).

$10.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0580

JET, MAIN (#58) (CARBURETOR NO.)

Note: (Optional).

$11.99

$

Usually ships in 3-6 days

0

23

Honda 99101-187-0600

JET, MAIN (#60) Use up to Engine SN BF22B C.

$10.99

$

Usually ships in 3-6 days

0

24

Honda 99204-ZE0-0350

JET SET, PILOT (#35) (Honda Code 1441609).

$23.99

$

In Stock, only 1 left!

0
