HR17 PDAN (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000001 - HR17-9999999) HR17 FLYWHEEL Parts Diagram

17" Walk-Behind Mower, Made in Japan

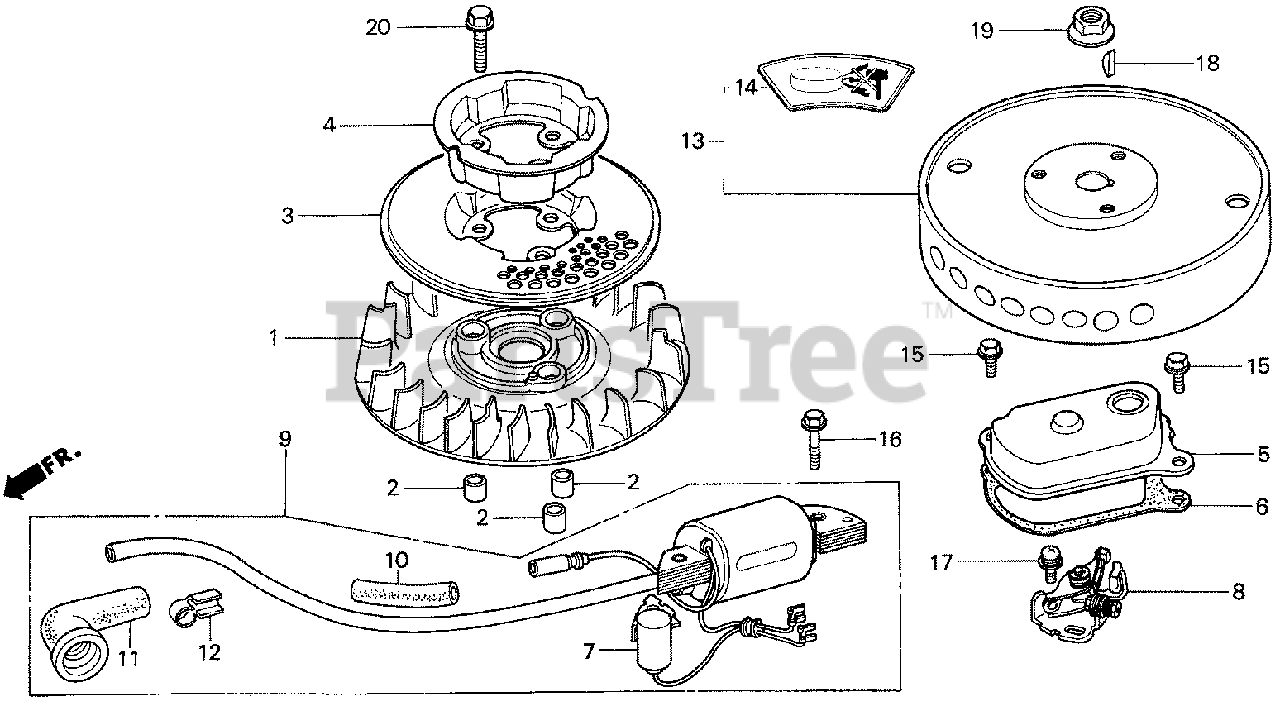

HR17 FLYWHEEL Parts Diagram

  • Title

1

Honda 19511-896-000

FAN, COOLING (NOT AVAILABLE)

$

$

Not available

2

Honda 19512-896-000

COLLAR, FAN

$4.99

$

Usually ships in 3-6 days

0

3

Honda 28452-896-700

GRID, SCREEN

$23.99

$

Usually ships in 3-6 days

0

4

Honda 28453-896-003

PULLEY, STARTER

$18.99

$

Usually ships in 3-6 days

0

5

Honda 30211-896-000

COVER, POINTS

$21.99

$

Usually ships in 3-6 days

0

6

Honda 30215-896-306

GASKET, BREAKER COVER

$6.49

$

Usually ships in 3-6 days

0

7

Honda 30251-896-003

CONDENSER (NOT AVAILABLE)

Note: Use from Engine SN 1055363.

$30.99

$

Usually ships in 3-6 days

0

8

Honda 30280-896-003

POINTS ASSY.

$33.99

$

Usually ships in 3-6 days

0

9

Honda 30560-896-701

COIL ASSY., IGNITION (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 30565-728-000

TUBE, IGNITION RUBBER

$11.99

$

Usually ships in 3-6 days

0

11

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

$

$

Not available

11

Honda 30701-888-014

SEE PART DETAILS - PRI; CAP, IGNITION (TOYO)

Note: Use from Engine SN 1091437.

$

$

Not available

12

Honda 30702-888-003

TERMINAL, PLUG

$9.99

$

Usually ships in 3-6 days

0

13

Honda 31100-896-710

FLYWHEEL

Note: Use up to Engine SN 1010539.

$

$

Currently unavailable

13

Honda 31100-896-711

FLYWHEEL (NOT AVAILABLE)

Note: Use from Engine SN 1010540.

$

$

Currently unavailable

14

Honda 87541-896-000

MARK, FLYWHEEL CAUTION

$

$

Not available

15

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

16

Honda 90007-896-000

BOLT, FLANGE (5X25)

$

$

Not available

17

Honda 90051-883-000

SCREW-WASHER (5X12)

$2.49

$

Usually ships in 3-6 days

0

18

Honda 90741-035-000

KEY, WOODRUFF (3MM)

$5.99

$

Usually ships in 3-6 days

0

19

Honda 94050-12080

NUT, FLANGE (12MM)

$2.99

$

Usually ships in 3-6 days

0

20

Honda 95701-06022-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X22)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 95800-06022-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X22)

$

$

Currently unavailable
