HR17 PDAM (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000001 - HR17-9999999) HR17 ROTARY BLADE Parts Diagram

17" Walk-Behind Mower, Made in Japan

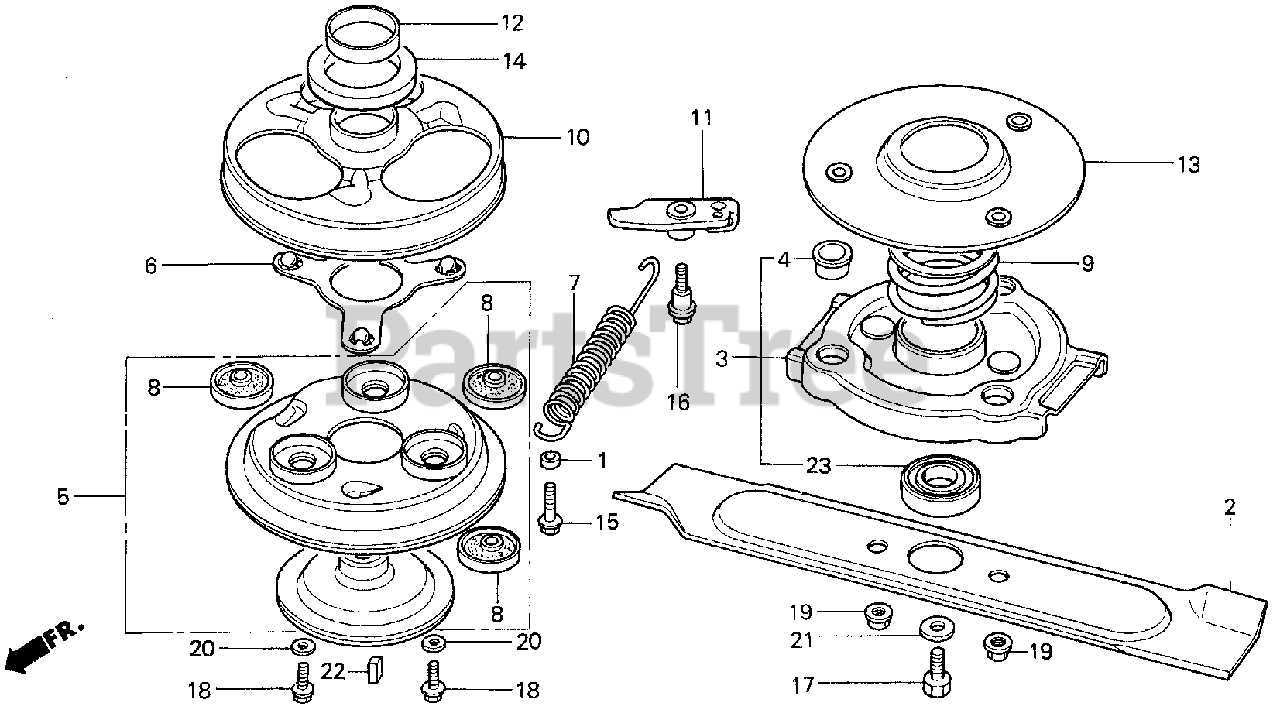

HR17 ROTARY BLADE Parts Diagram

  • Title

1

Honda 19512-883-000

SEE PART DETAILS - PRI; COLLAR, FAN

$2.49

$

In Stock, Qty 5

0

2

Honda 72511-959-660

BLADE, ROTARY

$

$

Not available

3

Honda 72600-959-660

HOLDER ASSY., BLADE (NOT AVAILABLE)

$109.99

$

Usually ships in 3-6 days

0

4

Honda 72613-959-660

BUSH, BLADE HOLDER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 75010-959-660

DISK SET, BRAKE & DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 75110-959-660

RETAINER, BALL (NOT AVAILABLE)

$5.99

$

Usually ships in 3-6 days

0

7

Honda 75113-959-660

SPRING, ROTO-STOP RETURN

$

$

Currently unavailable

8

Honda 75132-952-013

RUBBER, CLUTCH (NOT AVAILABLE)

$11.99

$

Usually ships in 3-6 days

0

9

Honda 75135-959-660

SPRING, CLUTCH

$

$

Currently unavailable

10

Honda 75141-959-660

PLATE, BALL CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 75145-959-660

PLATE, LINK (NOT AVAILABLE)

$

$

Currently unavailable

12

Honda 75146-959-660

BUSH, CENTER

$

$

Not available

13

Honda 75150-959-660

DISK, DRIVEN

$

$

Not available

14

Honda 75170-959-660

HOLDER, BALL (NOT AVAILABLE)

$22.99

$

Usually ships in 3-6 days

0

15

Honda 90029-888-000

BOLT, FLANGE (6X16) (CT200)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 90101-959-660

BOLT, LINK CENTER (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 90107-959-003

BOLT, HEX. (8X25)

$4.49

$

Usually ships in 3-6 days

0

18

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

19

Honda 90309-357-000

NUT, HEX. (8MM)

$4.99

$

Usually ships in 3-6 days

0

20

Honda 90402-921-000

WASHER (6MM)

$

$

Not available

21

Honda 90426-437-000

WASHER, ROTOR SETTING

$8.49

$

Usually ships in 3-6 days

0

22

Honda 90745-959-000

KEY (5MM)

$10.99

$

Usually ships in 3-6 days

0

23

Honda 96150-62030-10

BEARING, RADIAL BALL (6203UU)

$22.99

$

In Stock, only 2 left!

0
