HR17 PDA (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000006 - HR17-9999999) HR17 RECOIL STARTER Parts Diagram

17" Walk-Behind Mower, Made in Japan

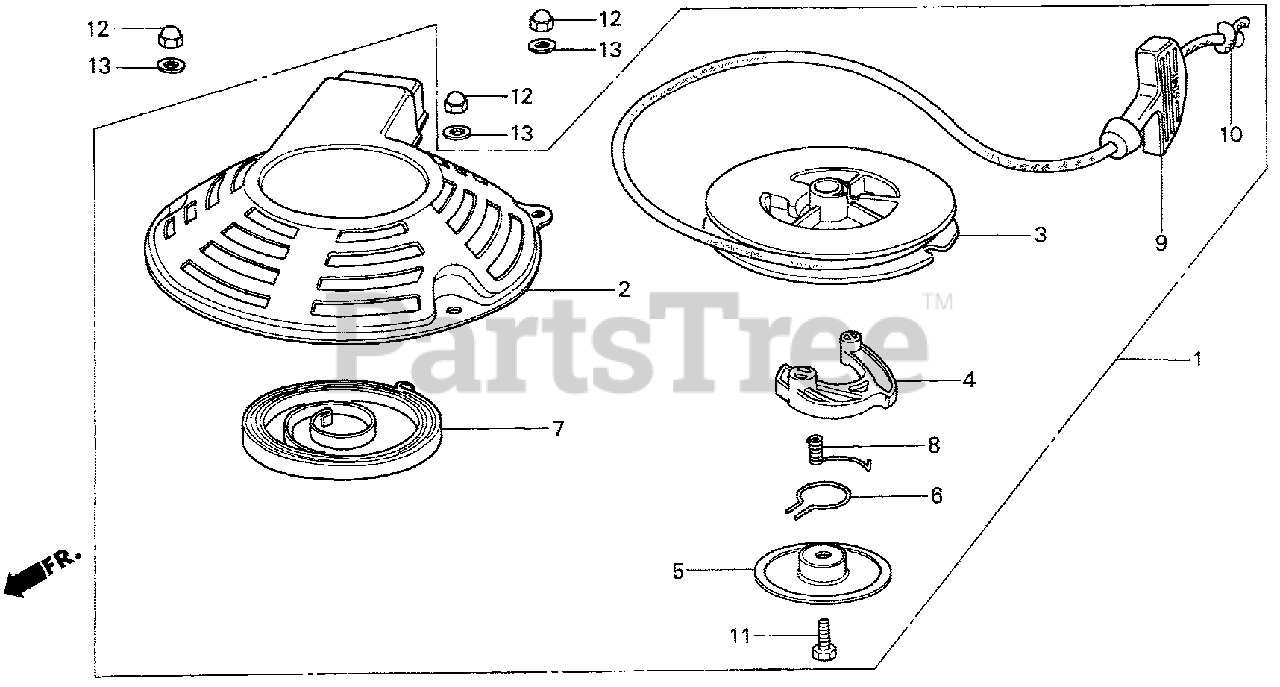

HR17 RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-896-702

STARTER ASSY., RECOIL (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-896-700

CASE, STARTER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 28420-896-701

PULLEY, RECOIL STARTER (NOT AVAILABLE)

$

$

Not available

4

Honda 28422-896-010

RATCHET, STARTER

$7.99

$

In Stock, only 1 left!

0

5

Honda 28431-896-000

PLATE, FRICTION

$6.49

$

Usually ships in 3-6 days

0

6

Honda 28441-896-000

SPRING, FRICTION

$8.49

$

Usually ships in 3-6 days

0

7

Honda 28442-896-700

SPRING, RECOIL STARTER

$33.99

$

Usually ships in 3-6 days

0

8

Honda 28443-896-000

SPRING, RETURN

$4.99

$

Usually ships in 3-6 days

0

9

Honda 28461-896-701

GRIP, STARTER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 28462-ZG9-T42

SEE PART DETAILS - PRI; ROPE (#4X91")

$4.99

$

Usually ships in 3-6 days

0

11

Honda 92101-06012-0H

BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

12

Honda 94021-05070-0S

NUT, CAP (5MM)

$1.99

$

Usually ships in 3-6 days

0

13

Honda 94101-05800

WASHER, PLAIN (5MM)

$1.49

$

In Stock, only 2 left!

0
