HR17 PDA (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000006 - HR17-9999999) HR17 FRONT WHEEL Parts Diagram

17" Walk-Behind Mower, Made in Japan

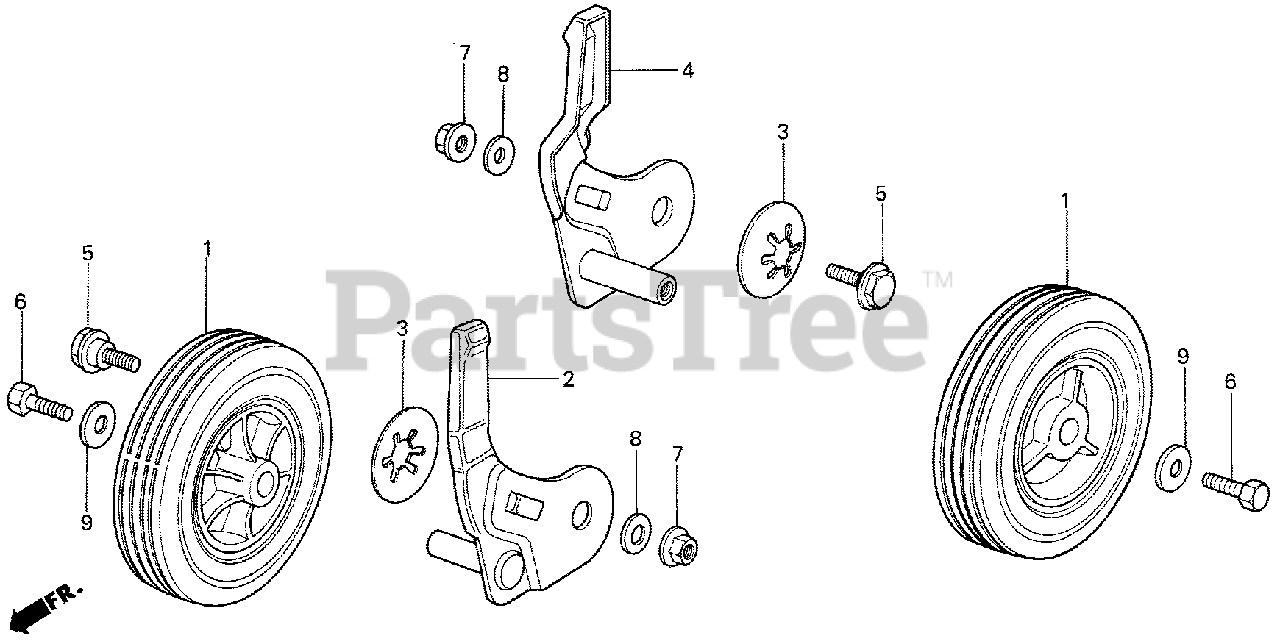

HR17 FRONT WHEEL Parts Diagram

  • Title
1

Honda 42710-959-003

SEE PART DETAILS - SUP; WHEEL, FR. (6 INCH)

$

$

Not available

2

Honda 42910-959-000

ARM, R. FR. ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 42915-959-000

SPRING, ADJUSTING ARM

$6.99

$

Usually ships in 3-6 days

0

4

Honda 42920-959-000

ARM, L. FR. ADJUSTING (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 90105-959-000

SHAFT, ADJUSTING CENTER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 92000-08012-0A

BOLT, HEX. (8X12)

$

$

Currently unavailable

7

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

8

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 94103-08000

WASHER, PLAIN (8MM)

$0.99

$

In Stock, Qty 20+

0
