HR17 PDA (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000006 - HR17-9999999) HR17 CYLINDER Parts Diagram

17" Walk-Behind Mower, Made in Japan

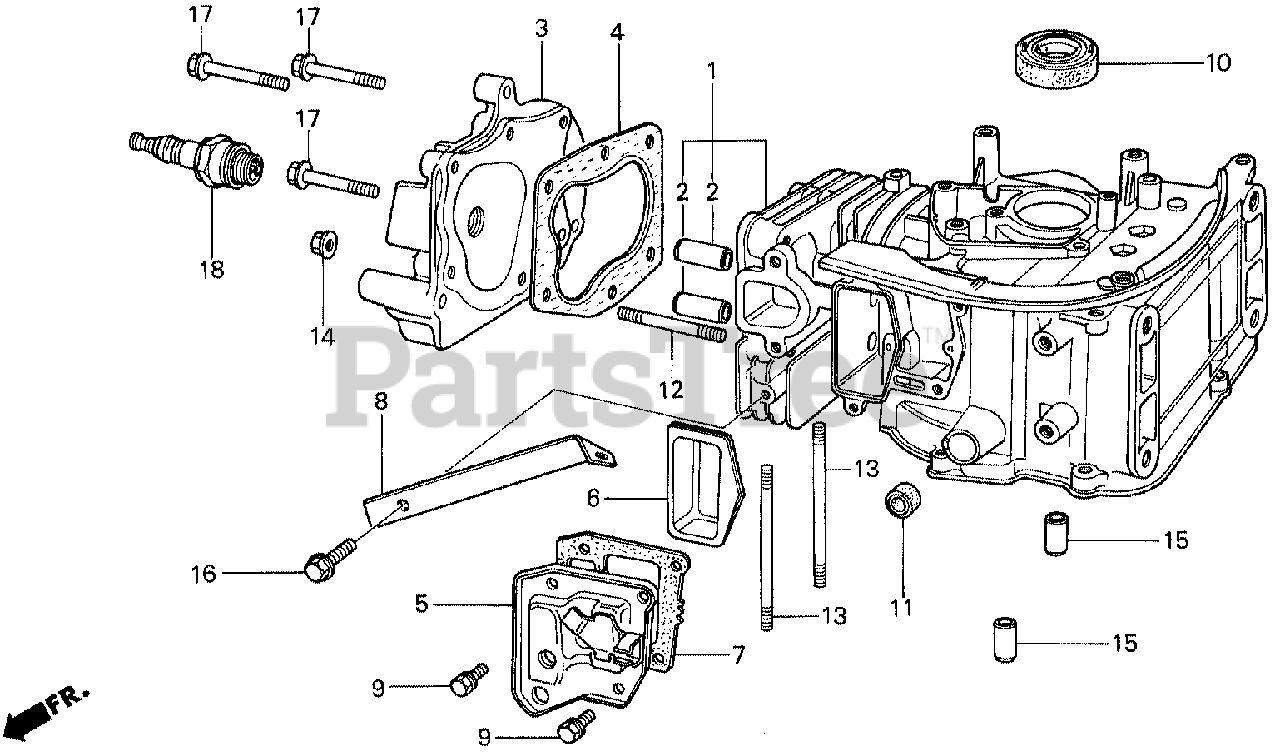

HR17 CYLINDER Parts Diagram

  • Title

1

Honda 12100-896-305

CYLINDER

Note: Use up to Engine SN 1010983.

$

$

Currently unavailable

1

Honda 12100-896-315

CYLINDER (NOT AVAILABLE)

Note: Use from Engine SN 1010984.

$

$

Currently unavailable

2

Honda 12133-896-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE)

$10.99

$

Usually ships in 3-6 days

0

2

Honda 12134-896-305

SEE PART DETAILS - SUP; GUIDE, VALVE (OVER SIZE)

$

$

Currently unavailable

3

Honda 12221-896-700

CYLINDER HEAD (NOT AVAILABLE)

$39.99

$

Usually ships in 3-6 days

0

4

Honda 12281-896-306

GASKET, CYLINDER HEAD

$

$

Not available

5

Honda 12360-896-700

COVER, TAPPET (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 12370-896-000

SEPARATOR (INNER)

$

$

Currently unavailable

7

Honda 12375-896-700

GASKET, TAPPET COVER

$

$

Not available

8

Honda 16650-896-701

BIMETAL, AUTOMATIC CHOKE

$

$

Not available

9

Honda 90002-892-000

BOLT, FLANGE (5X10)

$1.99

$

In Stock, Qty 5

0

10

Honda 91202-892-004

OIL SEAL (17X30X6) (NOK)

$12.99

$

Usually ships in 3-6 days

0

11

Honda 91231-816-000

OIL SEAL (5X10X4)

$

$

Not available

12

Honda 92900-06028-3B

BOLT, STUD (6X45) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

13

Honda 92900-06071-1B

BOLT, STUD (6X80)

$3.99

$

Usually ships in 3-6 days

0

14

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0

15

Honda 94301-08140

PIN, DOWEL (8X14)

$2.99

$

In Stock, Qty 8

0

16

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

$

$

Currently unavailable

16

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

$2.49

$

In Stock, only 1 left!

0

17

Honda 95701-06035-08

BOLT, FLANGE (6X35)

$2.49

$

In Stock, only 4 left!

0

18

Honda 98073-54740

SPARK PLUG (BM4A) (NGK)

$3.49

$

In Stock, only 4 left!

0

18

Honda 98073-54750

SPARK PLUG (W14M-U) (DENSO)

$3.49

$

Usually ships in 3-6 days

0
