HR17 PDA (HR17) - Honda 17" Walk-Behind Mower, Made in Japan (SN: HR17-1000006 - HR17-9999999) HR17 CUTTER HOUSING Parts Diagram

17" Walk-Behind Mower, Made in Japan

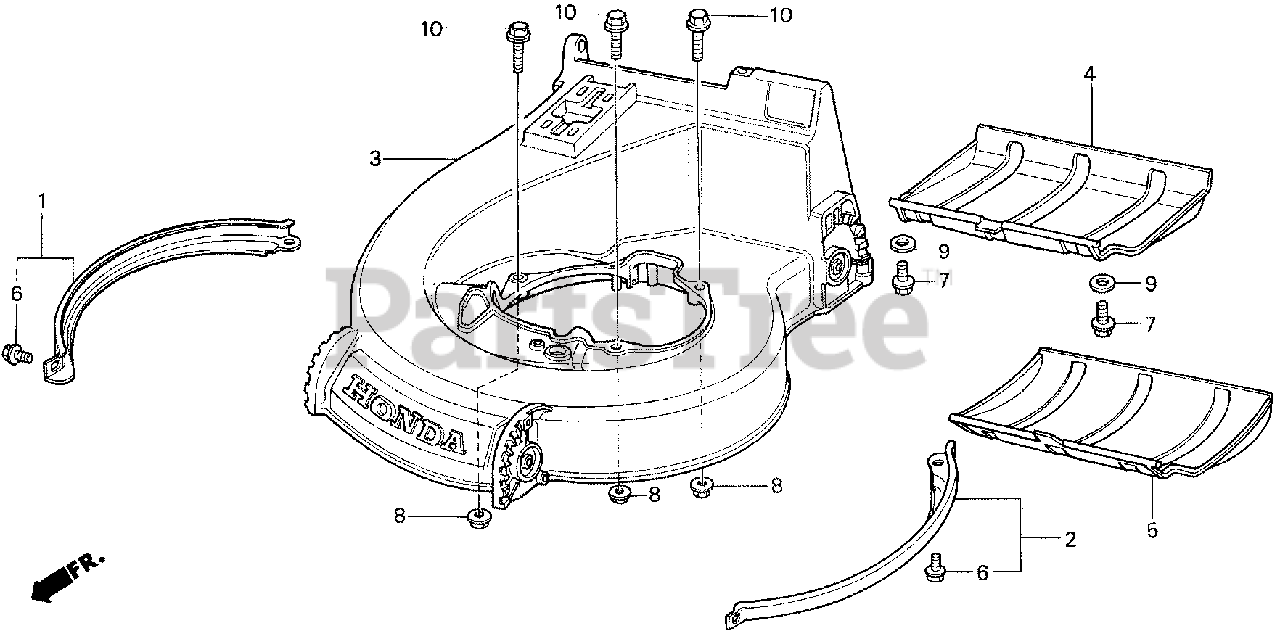

HR17 CUTTER HOUSING Parts Diagram

  • Title
1

Honda 06761-959-810

GUARD SET, R. HOUSING (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 06762-959-810

GUARD SET, L. HOUSING (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 76111-959-000

HOUSING, CUTTER

$

$

Not available

4

Honda 76118-959-000

SHIELD, SAFETY (NOT AVAILABLE)

Note: Use up to Frame SN 1069267.

$

$

Not available

5

Honda 76118-959-620

SHIELD, SAFETY (NOT AVAILABLE)

Note: Use from Frame SN 1069268.

$

$

Currently unavailable

6

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) (CT200)

$2.99

$

In Stock, Qty 20+

0

8

Honda 94050-08000

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 20+

0

9

Honda 94103-06000

WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 20+

0

10

Honda 95701-08035-00

BOLT, FLANGE (8X35)

$2.99

$

Usually ships in 3-6 days

0
