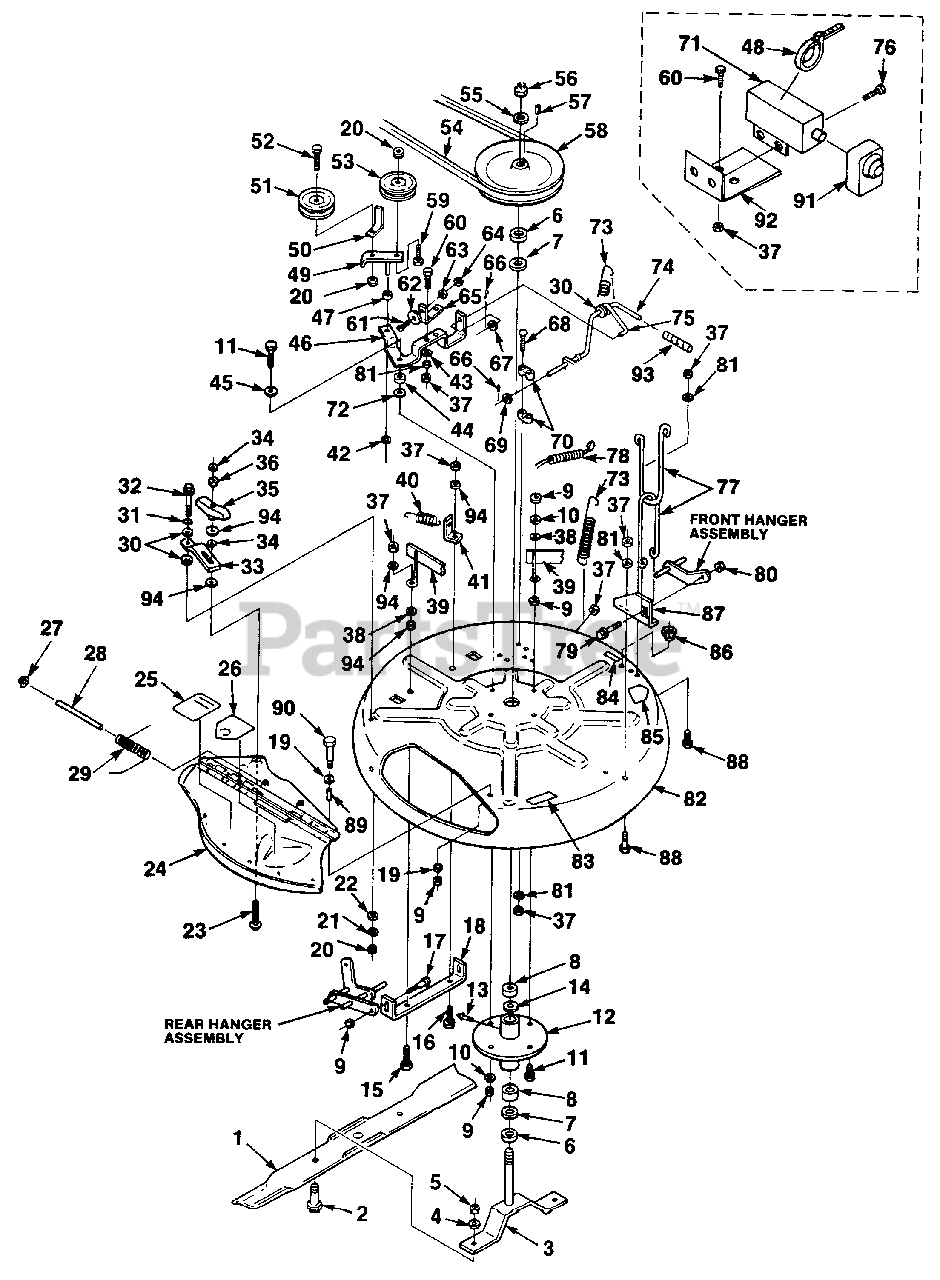

HR 830 (UT-32023-A) - Homelite Rear-Engine Riding Mower Mower Parts Diagram

Rear-Engine Riding Mower

Mower Parts Diagram

  • Title

1

Homelite JA991659

BLADE- Hi-Lift
(Superseded to UP06686)

$

$

Not available

2

Homelite JA408803

SCREW- Hex centerlock 1/2-13 x 1 1/4"

$

$

Currently unavailable

3

Homelite JA994045

SPINDLE & ADAPTOR

$

$

Not available

4

Homelite JA446154

WASHER- Lock 1/2"

$

$

Not available

5

Homelite JA444758

NUT- Hex centerlock 1/2-13

$

$

Currently unavailable

6

Homelite JA991497

SPACER

$

$

Currently unavailable

7

Homelite JA455055

WASHER- Flat

$

$

Not available

8

Homelite JA375882

BEARING

$

$

Not available

9

Homelite JA444718

NUT- Hex centerlock 5/16-18

$

$

Not available

10

Homelite JA446136

WASHER- Lock 5/16"
(Superseded to UP03791)

$

$

Not available

11

Homelite JA400192

SCREW- Hex centerlock 5/16-18 x 1 1/2"

$

$

Currently unavailable

12

Homelite JA994046

SPINDLE HOUSING

$

$

Currently unavailable

13

Homelite JA471238

FITTING- Lubrication

$

$

Currently unavailable

14

Homelite JA992887

SPACER- Bearing

$

$

Currently unavailable

15

Homelite JA400114

SCREW- Hex centerlock 1/4-20 x 1 1/4"
(Superseded to UP05933)

$

$

Not available

16

Homelite JA400110

SCREW- Hex centerlock 1/4-20 x .875

$

$

Currently unavailable

17

Homelite JA354480

BOLT- Shoulder 5/16-18

$

$

Currently unavailable

18

Homelite JA990508

BRACKET- Rear lift

$

$

Currently unavailable

19

Homelite JA453009

WASHER- Plain 5/16"
(Superseded to UP07173)

$

$

Not available

20

Homelite JA444762

NUT- Hex centerlock 3/8-16

$

$

Currently unavailable

21

Homelite JA446140

WASHER- Lock 3/8"
(Superseded to UP07435)

$

$

Not available

22

Homelite JA452008

WASHER- Plain 3/8"

$3.49

$

Usually ships in 3-7 days

0

23

Homelite JA441668

BOLT- Carriage 1/4-20 x 1 1/4"

$

$

Currently unavailable

24

Homelite JA993818

PLATE & COVER

$

$

Currently unavailable

25

Homelite JA991217

DECAL- Door

$

$

Currently unavailable

26

Homelite JA339460

DECAL-CPSC

$

$

Not available

27

Homelite JA445516

NUT- Pal

$

$

Not available

28

Homelite JA991703

ROD- Deck hinge

$

$

Not available

29

Homelite JA991701

SPRING- Torsion

$

$

Currently unavailable

30

Homelite JA453017

WASHER- Plain

$

$

Not available

31

Homelite JA454020

WASHER- Spring

$

$

Not available

32

Homelite JA376094

BOLT- Shoulder

$

$

Not available

33

Homelite JA991519

ARM- Pivot

$

$

Currently unavailable

34

Homelite JA445272

WASHER- Speed

$4.99

$

Usually ships in 3-7 days

0

35

Homelite JA339550

KNOB- Handle

$

$

Not available

36

Homelite JA445784

NUT- Hex 1/4-20

$

$

Currently unavailable

37

Homelite JA444708

NUT- Hex centerlock 1/4-20

$

$

Currently unavailable

38

Homelite JA452006

WASHER- Flat 5/16"

$

$

Currently unavailable

39

Homelite JA994293

GUIDE- Belt

$

$

Currently unavailable

40

Homelite JA994167

SPRING- Extension

$

$

Currently unavailable

41

Homelite JA991806

BRACKET- Damper

$27.99

$

Usually ships in 3-7 days

0

42

Homelite JA458036

RING- Retainer

$

$

Not available

43

Homelite JA453023

WASHER- Plain
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

44

Homelite JA991504

SPACER

$

$

Not available

45

Homelite JA350929

WASHER- Engine

$

$

Not available

46

Homelite JA994647

BRAKE/CLUTCH- Lever

$

$

Currently unavailable

47

Homelite JA994085

BUSHING

$

$

Currently unavailable

48

Homelite JA473171

STA-STRAP
(Superseded to JA991636)

$

$

Not available

49

Homelite JA994294

IDLER- Pivot

$

$

Currently unavailable

50

Homelite JA994353

GUIDE- Belt

$

$

Currently unavailable

51

Homelite JA993782

PULLEY- Idler

$

$

Currently unavailable

52

Homelite JA400268

SCREW- Hex centerlock 3/8-16 x 1 3/4"
(Superseded to UP07178)

$

$

Not available

53

Homelite JA336222

PULLEY- Idler

$

$

Currently unavailable

54

Homelite JA992639

BELT- Mower Deck

$

$

Not available

55

Homelite JA453022

WASHER

$

$

Currently unavailable

56

Homelite JA445783

NUT- Hex lock

$

$

Currently unavailable

57

Homelite JA321292

KEY

$

$

Currently unavailable

58

Homelite JA330023

PULLEY- Spindle

$

$

Not available

59

Homelite JA440124

BOLT- Carriage 3/8-16 x 1 3/4"

$4.99

$

Usually ships in 3-7 days

0

60

Homelite JA400108

SCREW- Hex centerlock 1/4-20 x 3/4"
(Superseded to 80052)

$

$

Not available

61

Homelite JA403910

SCREW- Truss hd. 10-24 x 1/2"

$3.99

$

Usually ships in 3-7 days

0

62

Homelite JA354175

PAD- Brake

$

$

Currently unavailable

63

Homelite JA452002

WASHER- Plain #10

$

$

Not available

64

Homelite JA444782

NUT- Hex centerlock #10-24

$

$

Not available

65

Homelite JA993716

BRACKET- Brake pad

$

$

Currently unavailable

66

Homelite JA460028

PIN- Cotter

$

$

Currently unavailable

67

Homelite JA453011

WASHER- Plain 3/8"
(Superseded to PS84010)

$

$

Not available

68

Homelite JA440050

BOLT- Carriage 1/4-20 x 1 1/2"

$

$

Currently unavailable

69

Homelite JA312746

WASHER- Plain

$

$

Currently unavailable

70

Homelite JA992798

BEARING

$

$

Currently unavailable

71

Homelite JA994223

SWITCH- Deck

$

$

Not available

72

Homelite JA453032

WASHER- Plain

$

$

Currently unavailable

73

Homelite JA993364

SPRING- Extension

$

$

Not available

74

Homelite JA994693

LEVER- P.T.O.

$

$

Currently unavailable

75

Homelite JA994043

ROD- Link

$

$

Currently unavailable

76

Homelite JA416908

SCREW- Taptite
(Superseded to JA416911)

$

$

Currently unavailable

77

Homelite JA990219

LINK- Lift

$

$

Currently unavailable

78

Homelite JA992119

COVER- Cable

$

$

Currently unavailable

79

Homelite JA992138

BOLT- Shoulder 3/8-16
(Superseded to UP06685)

$

$

Currently unavailable

80

Homelite JA444850

NUT- 3/8-16
(Superseded to JA993711)

$

$

Not available

81

Homelite JA446130

WASHER- Lock 1/4"

$

$

Not available

82

Homelite JA991572

DECK- 30"

$

$

Currently unavailable

83

Homelite JA994328

DECAL- Warning

$

$

Currently unavailable

84

Homelite JA339566

DECAL- No step

$

$

Currently unavailable

85

Homelite JA339460

DECAL-CPSC

$

$

Not available

86

Homelite JA375977

PLUG- Washout

$

$

Currently unavailable

87

Homelite JA994295

BRACKET- Front lift

$

$

Not available

88

Homelite JA400106

SCREW- Hex centerlock 1/4-20 x 5/8"

$

$

Currently unavailable

89

Homelite JA991744

SPACER

$

$

Currently unavailable

90

Homelite JA400182

SCREW- Hex center lock 5/16-18 x 5/8"

$

$

Not available

91

Homelite JA994224

SWITCH- Boot

$

$

Currently unavailable

92

Homelite JA994758

BRACKET- Deck switch

$

$

Currently unavailable

93

Homelite JA993191

COVER- Lift handle

$

$

Currently unavailable

94

Homelite JA452004

WASHER- Plain 1/4"
(Superseded to 84026)

$

$

Not available
