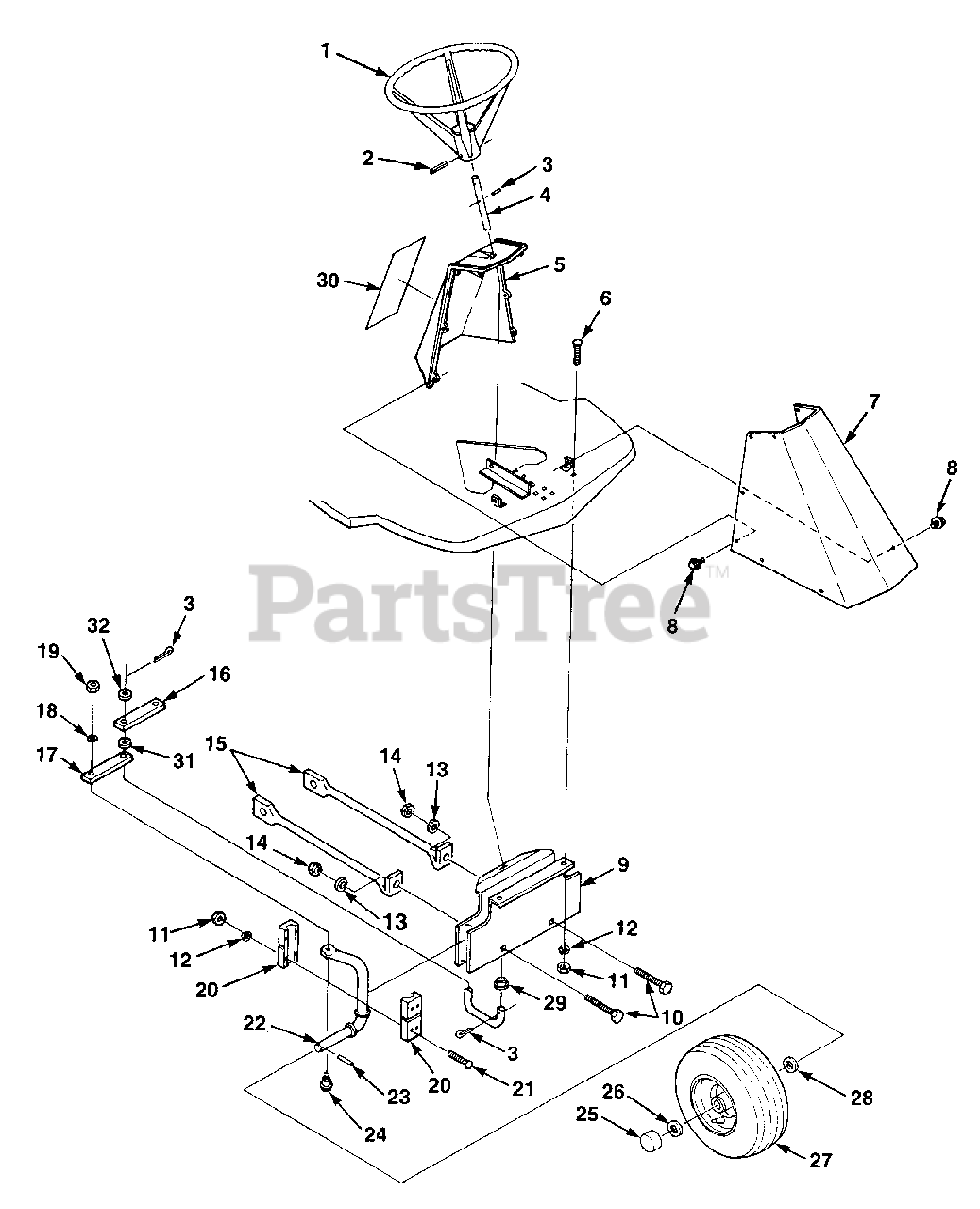

HR 830 E (UT-32024) - Homelite Rear-Engine Riding Mower Steering and Mower Lift Parts Diagram

Rear-Engine Riding Mower

Steering and Mower Lift Parts Diagram

  • Title
1

Homelite JA336146

STEERING WHEEL

$

$

Currently unavailable

2

Homelite JA461393

PIN- Roll

$

$

Not available

3

Homelite JA460028

PIN- Cotter

$

$

Currently unavailable

4

Homelite JA994044

SHAFT- Steering

$

$

Currently unavailable

5

Homelite JA993182

PANEL- Console

$87.99

$

Usually ships in 3-7 days

0

6

Homelite JA441664

BOLT- Rd. Hd. Sq. 1/4-20 x .625

$

$

Currently unavailable

7

Homelite JA993912

SUPPORT- Steer

$

$

Currently unavailable

8

Homelite JA375978

SCREW- Hex washer

$

$

Not available

9

Homelite JA992668

FRONT AXLE

$

$

Currently unavailable

10

Homelite JA400258

SCREW- Hex head 3/8-16 x.750
(Superseded to 80171)

$

$

Not available

11

Homelite JA444708

NUT- Hex centerlock 1/4-20

$

$

Currently unavailable

12

Homelite JA452004

WASHER- Plain 1/4"
(Superseded to 84026)

$

$

Not available

13

Homelite JA453011

WASHER- Plain 3/8"
(Superseded to PS84010)

$

$

Not available

14

Homelite JA444762

NUT- Hex head centerlock 3/8-16

$

$

Currently unavailable

15

Homelite JA990507

SUPPORT-Axle

$

$

Currently unavailable

16

Homelite JA994037

LINK- Steer (R.H.)

$

$

Currently unavailable

17

Homelite JA994036

LINK- Steer (L.H.)

$

$

Currently unavailable

18

Homelite JA452006

WASHER- Flat

$

$

Currently unavailable

19

Homelite JA444718

NUT- Hex centerlock

$

$

Not available

20

Homelite JA339465

BEARING- Spindle

$

$

Not available

21

Homelite JA440052

BOLT- Rd. Hd. sq. 1/4-20 x 1.750

$3.99

$

Usually ships in 3-7 days

0

22

Homelite JA995440

SPINDLE- Wheel

$

$

Currently unavailable

Homelite JA995450

SPINDLE- Wheel

$

$

Currently unavailable

23

Homelite JA461418

PIN- Roll 5/32 x 1.25
(Superseded to 70763)

$

$

Not available

24

Homelite JA354480

BOLT- Shoulder

$

$

Currently unavailable

25

$

$

Currently unavailable

26

$

$

Not available

27

Homelite JA120446

TIRE & HUB
(Superseded to JA992072)

$

$

Currently unavailable

28

$

$

Currently unavailable

29

$

$

Not available

30

Homelite JA992949

DECAL- Instruction

$

$

Currently unavailable

31

$7.49

$

Usually ships in 3-7 days

0

32

$

$

Currently unavailable
