HR 830 E (UT-32024) - Homelite Rear-Engine Riding Mower Frame Parts Diagram

Rear-Engine Riding Mower

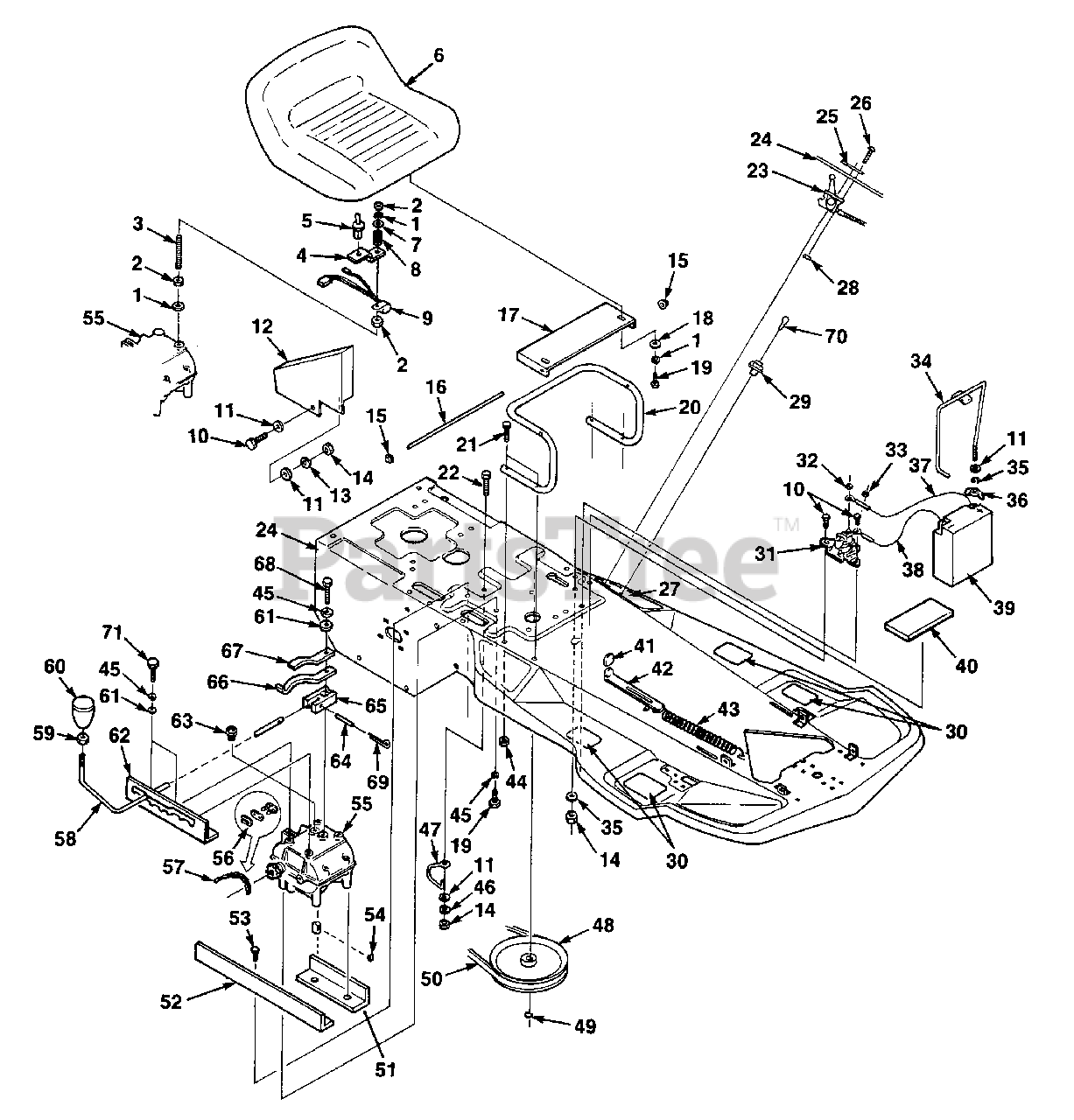

Frame Parts Diagram

  • Title

1

Homelite JA446136

WASHER- Lock 5/16
(Superseded to UP03791)

$

$

Not available

2

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

3

Homelite JA993027

STUD- 5/16-18

$

$

Currently unavailable

4

Homelite JA994034

BRACKET- Transmission

$

$

Currently unavailable

5

Homelite JA991513

SWITCH- Seat

$

$

Currently unavailable

6

Homelite JA124072

SEAT

$

$

Currently unavailable

7

Homelite JA992007

RETAINER- Spring

$7.49

$

Usually ships in 3-7 days

0

8

Homelite JA359266

SPRING- Compression

$

$

Not available

9

Homelite JA991077

MODULE- Safety

$

$

Currently unavailable

10

Homelite JA400106

SCREW- Hex centerlock 1/4-20 x.625

Note: (HR830E)

$

$

Currently unavailable

11

Homelite JA452004

WASHER- Plain 1/4"
(Superseded to 84026)

$

$

Not available

12

Homelite JA992599

GUARD- Chain

$

$

Currently unavailable

13

Homelite JA446129

WASHER- Lock 1/4-20 x.625

$

$

Currently unavailable

14

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

Note: (HR830E)

$

$

Not available

15

Homelite JA445517

NUT- Pal

$

$

Currently unavailable

16

Homelite JA992676

ROD- Seat

$

$

Currently unavailable

17

Homelite JA993726

BRACKET- Seat

$

$

Currently unavailable

18

Homelite JA452006

WASHER- Plain 5/16

$

$

Currently unavailable

19

Homelite JA400184

SCREW- Hex 5/16-18 x.750
(Superseded to UP03381)

$

$

Not available

20

Homelite JA992597

SUPPORT- Seat

$

$

Currently unavailable

21

Homelite JA400116

SCREW- Hex centerlock 1/4-20 x 1.5

$

$

Not available

22

Homelite JA400110

SCREW- Hex centerlock 1/4-20 x .825

$

$

Currently unavailable

23

Homelite JA993431

CONTROL- Throttle

$

$

Currently unavailable

24

Homelite JA994038

FRAME

$

$

Currently unavailable

25

Homelite JA993801

PLATE- Throttle

$

$

Currently unavailable

26

Homelite 88049

SCREW- Rd. hd. 10-24 x 1/2

$

$

Not available

27

Homelite JA993806

DECAL- Throttle

Note: (HR830)

$

$

Currently unavailable

Homelite JA993807

DECAL- Throttle

Note: (HR830E)

$7.49

$

Usually ships in 3-7 days

0

28

Homelite JA444782

NUT- Hex 10-24

$

$

Not available

29

Homelite JA130666

SWITCH- Ignition

Note: (HR830)

$

$

Currently unavailable

Homelite JA130412

SWITCH- Ignition

Note: (HR830E)

$

$

Currently unavailable

30

Homelite JA339568

PAD- Foot

$

$

Currently unavailable

31

Homelite JA995590

SOLENOID

Note: (HR830E)

$

$

Currently unavailable

32

Homelite JA443802

NUT- 1/4-20

Note: (HR830E)

$

$

Currently unavailable

33

Homelite JA444306

NUT- Hex 8-32

Note: (HR830E)

$

$

Currently unavailable

34

Homelite JA993516

BRACKET- Battery

Note: (HR830E)

$

$

Currently unavailable

35

Homelite JA446128

WASHER- Lock 1/4
(Superseded to UP03409)

Note: (HR830E)

$8.49

$

Usually ships in 3-7 days

0

36

Homelite JA445612

NUT- Wing 1/4-20

$4.99

$

Usually ships in 3-7 days

0

37

Homelite JA992199

CABLE- Battery

Note: (HR830E)

$

$

Currently unavailable

38

Homelite JA993508

CABLE- Battery ground

Note: (HR830E)

$

$

Currently unavailable

39

Homelite JA993527

BATTERY

Note: (HR830E)

$

$

Currently unavailable

40

Homelite JA991507

PAD- Battery

$

$

Currently unavailable

41

Homelite JA375987

KNOB- Tab

$

$

Currently unavailable

42

Homelite JA375859

LATCH- Brake

$

$

Currently unavailable

43

Homelite JA991442

SPRING- Extension

$

$

Not available

44

Homelite JA444708

NUT- Hex centerlock 1/4-20

$

$

Currently unavailable

45

Homelite JA446134

WASHER- Lock 5/16
(Superseded to 653671)

$4.49

$

Usually ships in 3-7 days

0

46

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

47

Homelite JA992821

BELT- Guide

$

$

Currently unavailable

48

Homelite JA392593

TRANSMISSION PULLEY

$

$

Currently unavailable

49

Homelite JA458009

RING- Snap

$

$

Not available

50

Homelite JA992638

BELT- Transmission

$

$

Currently unavailable

51

Homelite JA993934

ANGLE- Short

$

$

Currently unavailable

52

Homelite JA992624

ANGLE- Long

$

$

Currently unavailable

53

Homelite JA400108

SCREW- Hex cap 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

54

Homelite JA463017

KEY- Woodruff

$

$

Currently unavailable

55

Homelite JA990222

TRANSMISSION

$1715.99

$

Usually ships in 3-7 days

0

56

Homelite JA470503

LINK- Connecting

$

$

Currently unavailable

57

Homelite JA990739

CHAIN #40

$

$

Currently unavailable

58

Homelite JA994035

LEVER- Gear

$

$

Currently unavailable

59

Homelite JA443812

NUT- Hex jam 3/8-24

$

$

Currently unavailable

60

Homelite JA991845

KNOB- Shift

$

$

Currently unavailable

61

Homelite JA453009

WASHER- Plain 5/16
(Superseded to UP07173)

$

$

Not available

62

Homelite JA992594

LOCATOR- Gear

$

$

Currently unavailable

63

Homelite JA990981

SWITCH- Neutral safety

$

$

Currently unavailable

64

Homelite JA461383

PIN- Roll

$

$

Not available

65

Homelite JA991848

BRACKET- Pivot

$

$

Currently unavailable

66

Homelite JA991843

LEAF- Spring

$

$

Currently unavailable

67

Homelite JA991839

LEAF- Spring

$

$

Currently unavailable

68

Homelite JA400148

SCREW- Hex 1/4-20 x.875

$3.99

$

Usually ships in 3-7 days

0

69

Homelite JA460221

PIN- Cotter

$

$

Currently unavailable

70

Homelite JA343060

KEY- Ignition

$

$

Not available

71

Homelite JA408804

SCREW- Taptite

$

$

Currently unavailable
