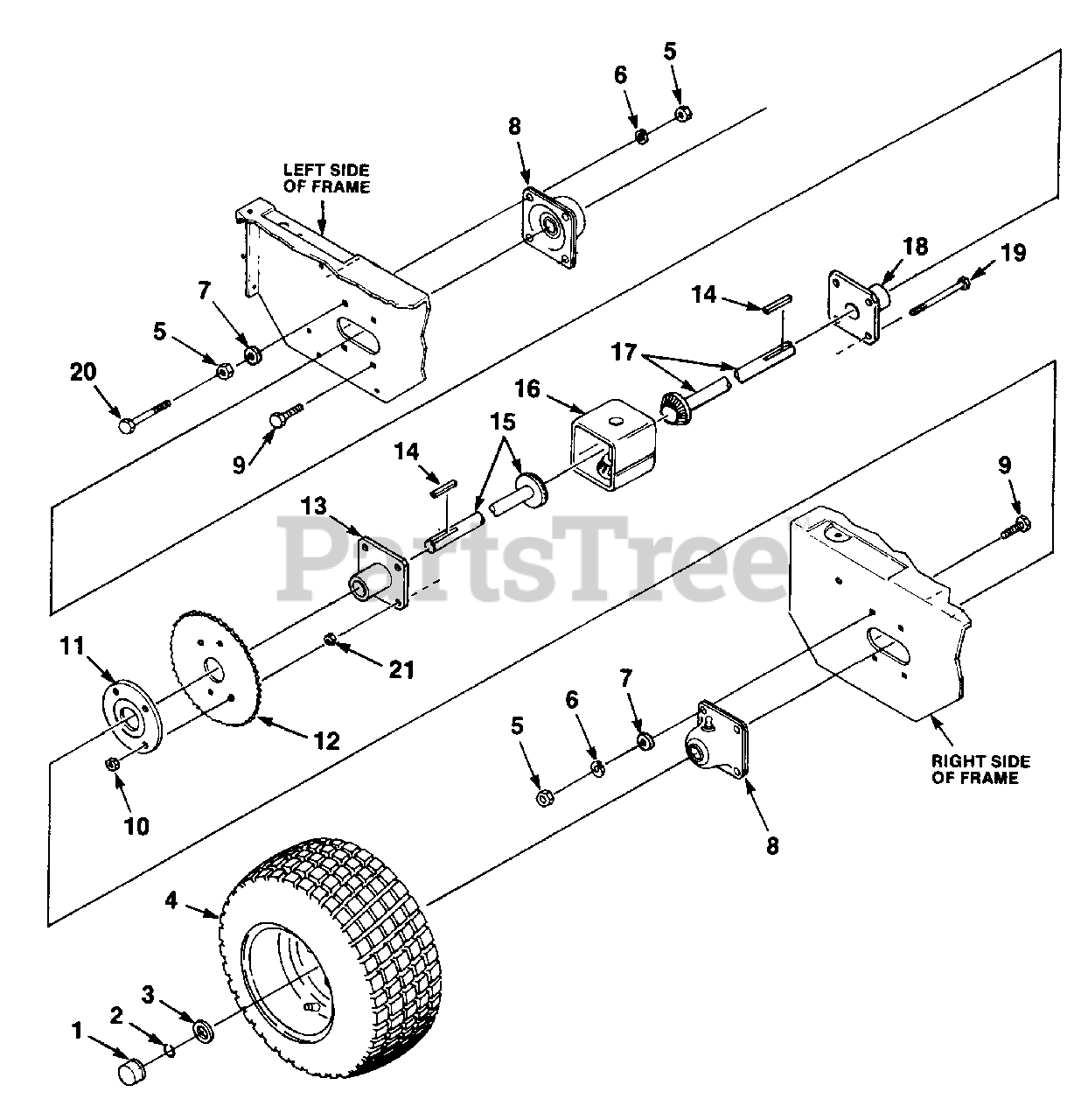

HR 830 E (UT-32024-A) - Homelite Rear-Engine Riding Mower Differential Parts Diagram

Rear-Engine Riding Mower

Differential Parts Diagram

  • Title

1

Homelite JA376090

CAP- Hub

$

$

Not available

2

Homelite JA458038

RING- Retaining

$

$

Currently unavailable

3

Homelite JA313820

SPACER

$

$

Currently unavailable

4

Homelite JA993804

WHEEL & TIRE

$

$

Currently unavailable

5

Homelite JA443110

NUT- Hex 3/8-16

$

$

Not available

6

Homelite JA446142

WASHER- Lock 3/8"

$

$

Not available

7

Homelite JA453011

WASHER- Plain 3/8"
(Superseded to PS84010)

$

$

Not available

8

Homelite JA992654

BEARING

$

$

Currently unavailable

9

Homelite JA400262

SCREW- Hex centerlock 3/8-16 x 1"
(Superseded to 80095)

$

$

Not available

10

Homelite JA444762

NUT- Hex centerlock 3/8-16

$

$

Currently unavailable

11

Homelite JA990233

SPACER

$

$

Currently unavailable

12

Homelite JA990992

SPROCKET

$

$

Currently unavailable

13

Homelite JA990234

CAP & BEARING (R.H)

$

$

Currently unavailable

14

Homelite JA310611

KEY

$

$

Currently unavailable

15

Homelite JA991304

AXLE- R.H. w/gear

$

$

Currently unavailable

16

Homelite JA990231

HOUSING & GEAR

$

$

Currently unavailable

17

Homelite JA991303

AXLE- L.H. w/gear

$

$

Currently unavailable

18

Homelite JA990235

CAP & BEARING (L.H.)

$

$

Currently unavailable

19

Homelite JA990241

SCREW- Hex 5/16-18 x 4"

$

$

Not available

20

Homelite JA400272

SCREW- 3/8-16 x 2 1/4"

$

$

Not available

21

Homelite JA991305

NUT- Hex jam

$6.99

$

Usually ships in 3-7 days
