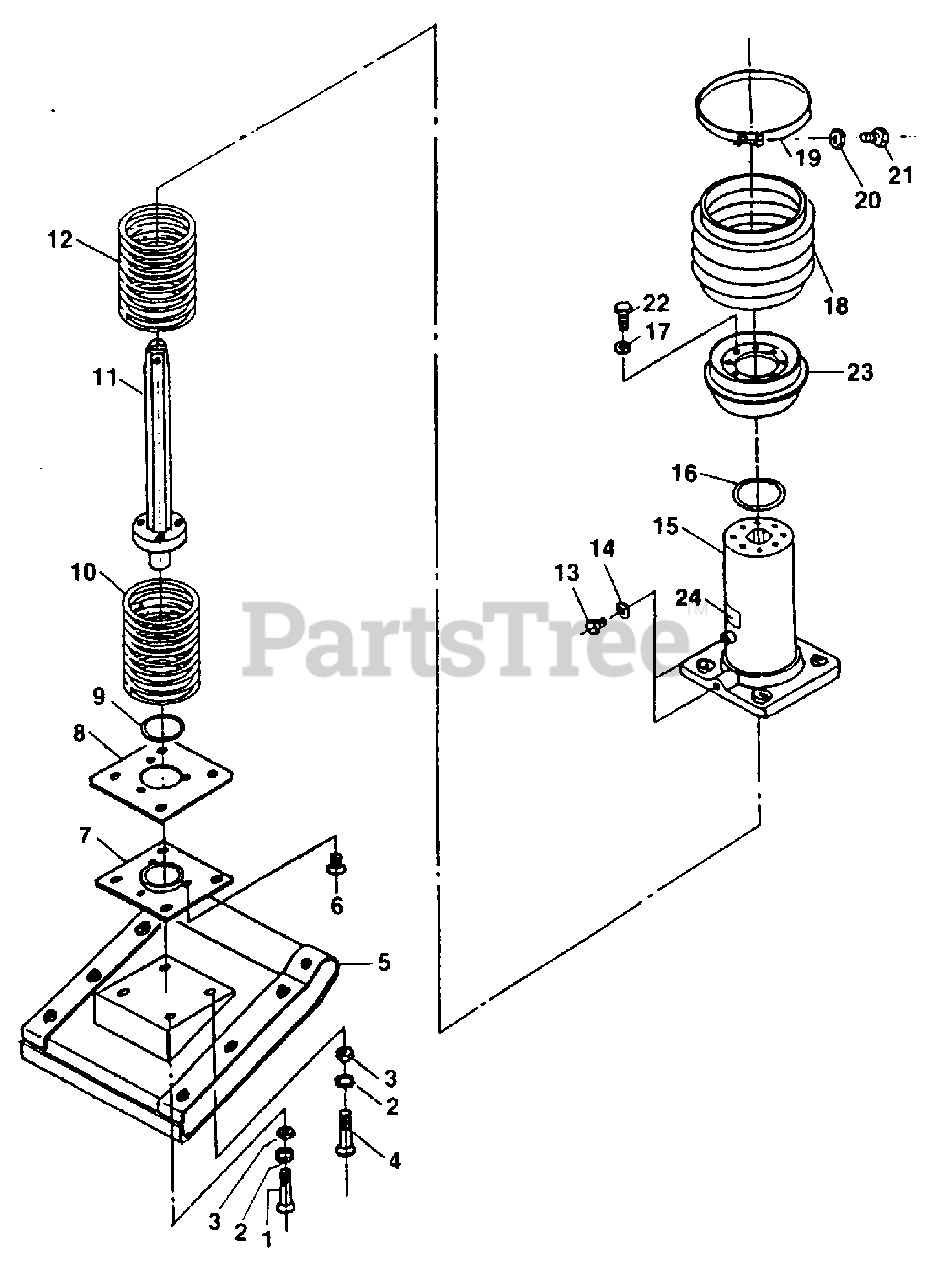

HR 80 (UT-06041) - Homelite Rammers Rammer & Shoe Parts Diagram

Rammers

Rammer & Shoe Parts Diagram

  • Title
1

Homelite 4990360

BOLT- Foot m12

$

$

Not available

2

Homelite 4990361

WASHER- Spring m12

$

$

Currently unavailable

3

Homelite 4990362

NUT- Nylon m12

$

$

Currently unavailable

4

Homelite 4990363

BOLT- Foot

$

$

Not available

$

$

Currently unavailable

6

Homelite 4990354

BOLT- Flat

$

$

Currently unavailable

7

Homelite 4990353

COVER- Cylinder

$

$

Currently unavailable

8

$

$

Currently unavailable

9

Homelite 4990351

O-RING (G-120)

$

$

Not available

10

Homelite 4990357

SPRING- Coil (Lower)

$

$

Currently unavailable

11

Homelite 4990356

SHAFT- Ram

$

$

Currently unavailable

12

Homelite 4990355

SPRING- Coil (Upper)

$

$

Currently unavailable

13

Homelite 4990349

BOLT- Hex m8 x 16

$

$

Currently unavailable

14

Homelite 4990350

GASKET- Copper m8

$

$

Currently unavailable

15

Homelite 4990344

CYLINDER- Foot

$

$

Currently unavailable

16

Homelite 4990345

O-RING (G-100)

$19.99

$

Usually ships in 3-7 days

0

17

Homelite 4990348

WASHER- Spring m8

$

$

Currently unavailable

18

$

$

Not available

19

Homelite 4990244

BELLOWS BAND

$

$

Currently unavailable

20

Homelite 4990422

NUT- Hex m10

$

$

Currently unavailable

21

Homelite 4990245

BOLT- Hex m10 x 60

$

$

Currently unavailable

22

Homelite 4990347

BOLT- Hex m8 x 25

$

$

Currently unavailable

23

Homelite 4990346

BELLOWS BASE

$

$

Currently unavailable

24

Homelite 4990285

CHECK OIL DECAL

$

$

Currently unavailable
