HR 65 (UT-06040) - Homelite Rammers Rammer & Shoe Parts Diagram

Rammers

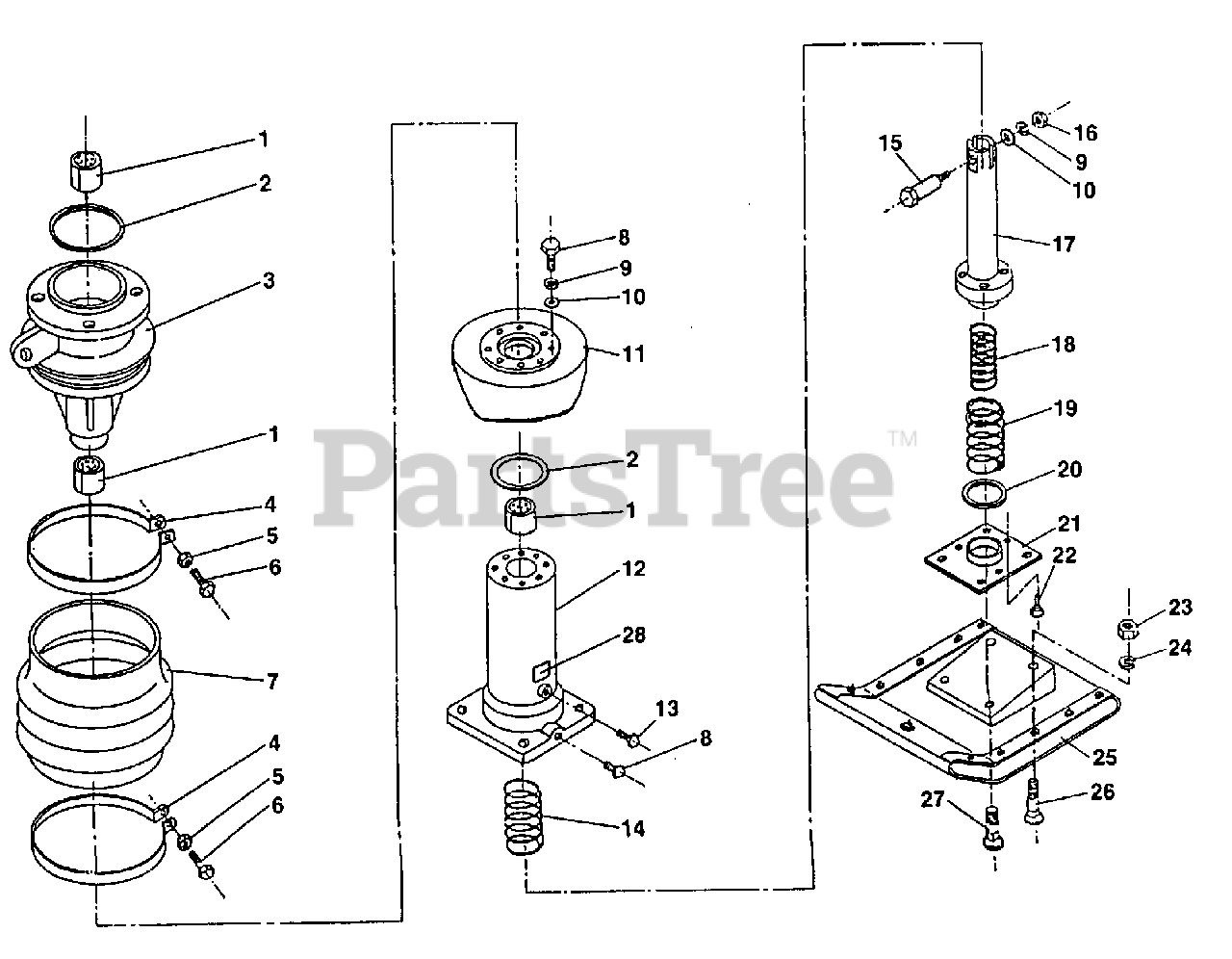

Rammer & Shoe Parts Diagram

  • Title
1

$

$

Currently unavailable

2

Homelite 4990241

O-RING (G-105)

$

$

Currently unavailable

3

Homelite 4990239

CYLINDER

$

$

Currently unavailable

4

Homelite 4990244

BELLOWS BAND

$

$

Currently unavailable

5

Homelite 4990422

NUT- Hex m1O

$

$

Currently unavailable

6

Homelite 4990245

BOLT- Hex m1O x 60

$

$

Currently unavailable

7

Homelite 4990243

BELLOWS- Complete

$

$

Not available

8

Homelite 4990249

BOLT- Hex m8 x 20

$

$

Currently unavailable

9

Homelite 4990417

WASHER- Spring m8

$

$

Currently unavailable

10

Homelite 4990416

WASHER- Plate m8

$1.99

$

Usually ships in 3-7 days

0

11

Homelite 4990248

BELLOWS BASE

$

$

Currently unavailable

12

Homelite 4990247

FOOT CYLINDER

$

$

Currently unavailable

13

Homelite 4990250

BOLT- Hex m8 x 10

$

$

Currently unavailable

14

Homelite 4990252

CYLINDER SPRING- Upper

$

$

Currently unavailable

15

Homelite 4990256

PIN- Rod

$

$

Currently unavailable

16

Homelite 4990257

NUT- Nylon m8

$

$

Currently unavailable

17

Homelite 4990255

ROD- Piston

$

$

Currently unavailable

18

Homelite 4990253

CYLINDER SPRING- Lower

$

$

Currently unavailable

19

Homelite 4990254

CYLINDER SPRING- Lower

$

$

Currently unavailable

20

Homelite 4990258

O-RING (G-90)

$

$

Currently unavailable

21

Homelite 4990259

COVER- Cylinder

$

$

Currently unavailable

22

Homelite 4990260

BOLT- Hex

$

$

Currently unavailable

23

Homelite 4990265

NUT- Nylon m12

$

$

Currently unavailable

24

Homelite 4990407

WASHER- Spring m12

$

$

Currently unavailable

25

Homelite 4990262

SHOE- Ramming

$

$

Currently unavailable

26

Homelite 4990263

BOLT- Flat hd. m12 x 105

$

$

Currently unavailable

27

Homelite 4990264

BOLT- m12 x 95

$

$

Currently unavailable

28

Homelite 4990285

CHECK OIL DECAL

$

$

Currently unavailable
