HR 65 (UT-06040) - Homelite Rammers Handle & Tank Parts Diagram

Rammers

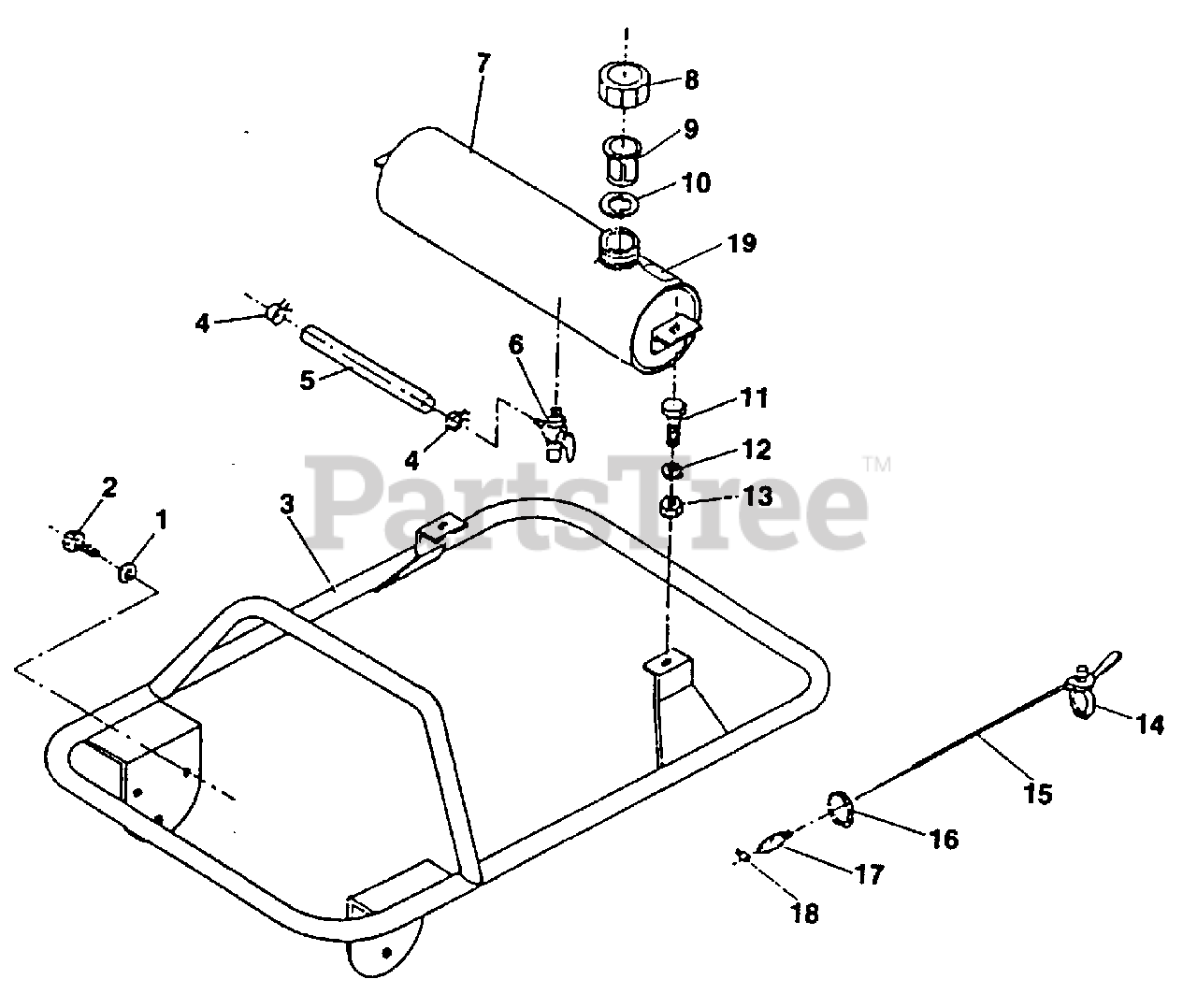

Handle & Tank Parts Diagram

  • Title
1

Homelite 4990267

WASHER- Spring m1O

$

$

Currently unavailable

2

Homelite 4990204

BOLT- Hex m10 x 20

$

$

Currently unavailable

3

$

$

Currently unavailable

4

Homelite 4990274

CLAMP- Hose

$

$

Currently unavailable

5

Homelite 4990275

HOSE- Rubber

$

$

Currently unavailable

6

Homelite 4990273

VALVE- Fuel

$

$

Not available

7

Homelite 4990269

TANK- Fuel

$

$

Currently unavailable

8

Homelite 4990270

CAP- Fuel

$

$

Currently unavailable

9

Homelite 4990271

FILTER- Fuel Tank

$

$

Currently unavailable

10

Homelite 4990272

GASKET- Fuel Tank

$

$

Currently unavailable

11

Homelite 4990249

BOLT- Hex m8 x 20

$

$

Currently unavailable

12

Homelite 4990417

WASHER- Spring m8

$

$

Currently unavailable

13

Homelite 4990418

NUT- Hex m8

$

$

Currently unavailable

14

Homelite 4990277

LEVER- Throttle

$

$

Currently unavailable

15

Homelite 4990278

WIRE- Throttle

$

$

Not available

16

Homelite 4990279

BAND- Wire

$

$

Currently unavailable

17

Homelite 4990280

SPRING- Return

$

$

Currently unavailable

18

Homelite 4990281

END- Screw

$

$

Currently unavailable

19

Homelite 4990287

CAUTION DECAL

$

$

Currently unavailable
