HR 1230 E (UT-32030) - Homelite Rear-Engine Riding Mower Engine And Drive Parts Diagram

Rear-Engine Riding Mower

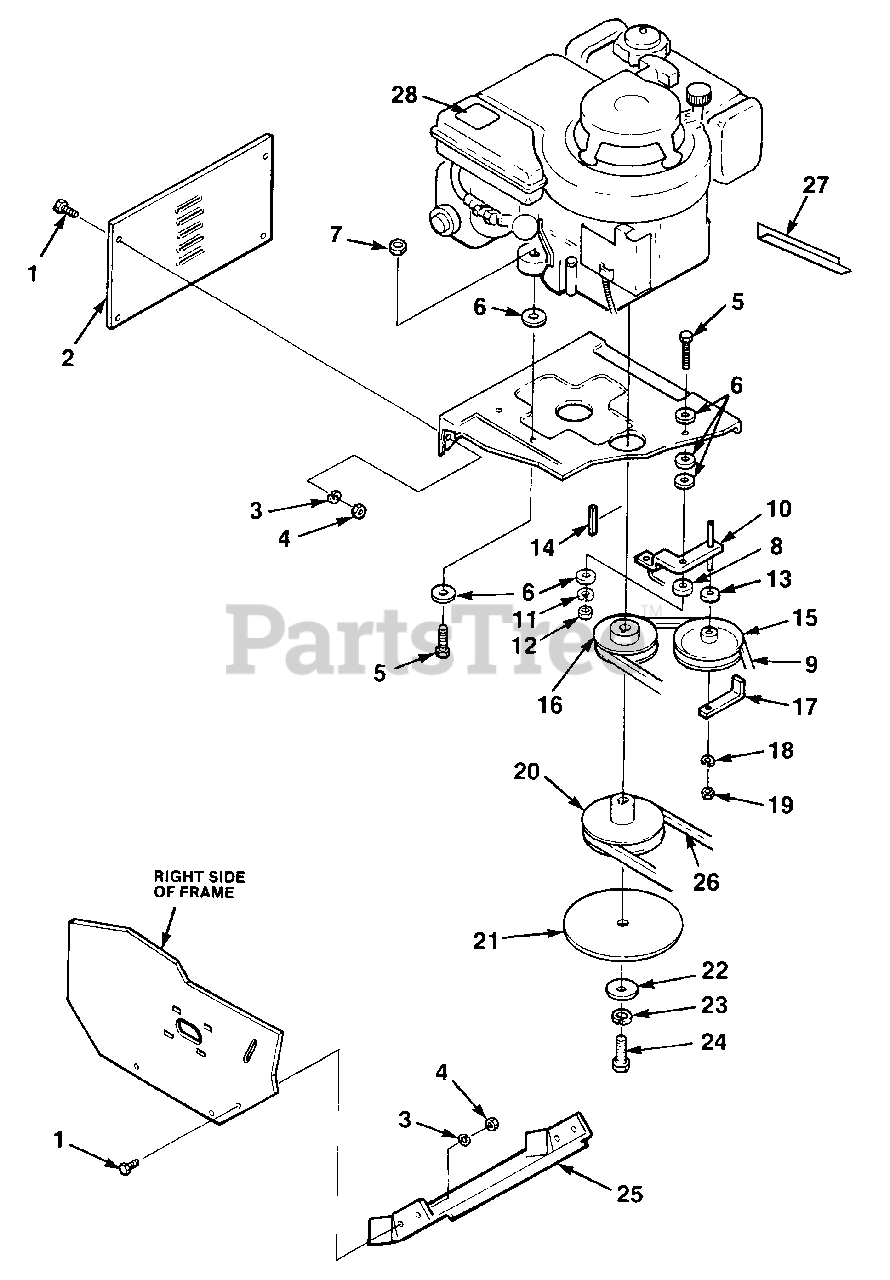

Engine And Drive Parts Diagram

  • Title

1

Homelite JA400106

BOLT- Hex centerlock 1/4-20 x .625

$

$

Currently unavailable

2

Homelite JA993823

PANEL- Rear

$

$

Currently unavailable

3

Homelite JA446130

WASHER- Lock 1/4-20

$

$

Not available

4

Homelite JA443102

NUT- Hex
(Superseded to JA993730)

$

$

Not available

5

Homelite JA400192

SCREW- Hex centerlock 5/16-18 x 1 1/2"

$

$

Currently unavailable

6

Homelite JA350929

WASHER- Engine

$

$

Not available

7

Homelite JA444718

NUT- Hex centerlock 5/16-18

$

$

Not available

8

Homelite JA992989

SPACER

$

$

Currently unavailable

9

Homelite JA992638

BELT- Transmission

$

$

Currently unavailable

10

Homelite JA994032

ARM- Idler
(Superseded to JA994552)

$

$

Currently unavailable

11

Homelite JA446136

WASHER- Lock 5/16"
(Superseded to UP03791)

$

$

Not available

12

Homelite JA994691

NUT- Hex centerlock 5/16-18

$

$

Currently unavailable

13

Homelite JA453011

WASHER- Plain 3/8"
(Superseded to PS84010)

$

$

Not available

14

Homelite JA992867

KEY

$

$

Not available

15

Homelite JA992817

PULLEY- Idler

$

$

Currently unavailable

16

Homelite JA992788

PULLEY- Traction

$

$

Currently unavailable

17

Homelite JA994353

GUIDE- Belt

$

$

Currently unavailable

18

Homelite JA446142

WASHER- Lock 1/4"

$

$

Not available

19

Homelite JA444762

NUT- Hex centerlock 1/4-20 x 1"

$

$

Currently unavailable

20

Homelite JA992787

PULLEY- Deck

$

$

Currently unavailable

21

Homelite JA993729

DISC- Belt guide

$

$

Currently unavailable

22

Homelite JA990128

RETAINER- Clutch

$

$

Currently unavailable

23

Homelite JA446148

WASHER- Lock 7/16"

$

$

Not available

24

Homelite JA400378

BOLT- Hex centerlock 7/16-20 x 2"

$

$

Currently unavailable

25

Homelite JA993933

PAN- Bottom

$

$

Currently unavailable

26

Homelite JA992639

BELT- Mower deck

$

$

Not available

27

Homelite JA357995

TROUGH

$

$

Currently unavailable

28

Homelite JA992354

DECAL- Warning

$

$

Not available
