HR 1230 E (UT-32030) - Homelite Rear-Engine Riding Mower Clutch And Brake Parts Diagram

Rear-Engine Riding Mower

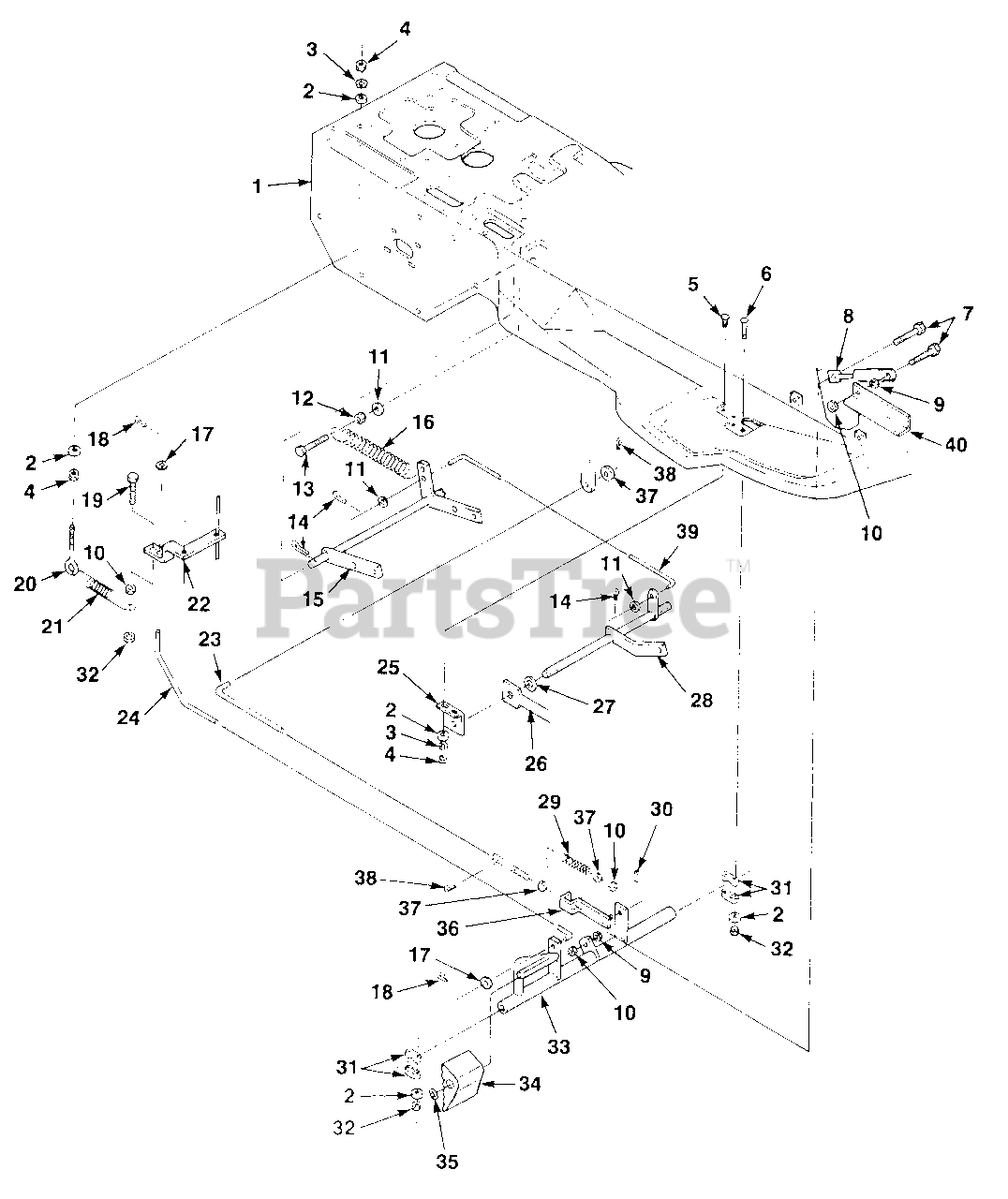

Clutch And Brake Parts Diagram

  • Title

$

$

Currently unavailable

2

Homelite JA452004

WASHER- Flat 1/4"
(Superseded to 84026)

$

$

Not available

3

Homelite JA446130

WASHER- Lock 1/4"

$

$

Not available

4

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

5

Homelite JA441664

BOLT- Rd. hd. 1/4-20 x .625

$

$

Currently unavailable

6

Homelite JA440050

BOLT- Rd. hd. 1/4-20 x 1 1/2"

$

$

Currently unavailable

7

Homelite JA400192

SCREW- Hex cap 5/16-18 x 1 1/2"

$

$

Currently unavailable

$

$

Currently unavailable

9

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

10

Homelite JA444718

NUT- Hex centerlock 5/16-18

$

$

Not available

11

Homelite JA453011

WASHER- Flat 3/8"
(Superseded to PS84010)

$

$

Not available

12

Homelite JA444762

NUT- Centerlock 3/8-16

$

$

Currently unavailable

13

Homelite JA400272

SCREW- Hex cap 3/8-16 x 2 1/4"

$

$

Not available

14

Homelite JA460212

PIN- Cotter 7/16 x 1"

$

$

Currently unavailable

15

Homelite JA993112

HANGER- Rear

$

$

Currently unavailable

16

$

$

Currently unavailable

17

Homelite JA452006

WASHER- Flat 5/16"

$

$

Currently unavailable

18

Homelite JA460026

PIN- Cotter

$2.99

$

Usually ships in 3-7 days

0

19

Homelite JA400188

SCREW- Hex 5/16-18 x 1"
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

20

Homelite JA354532

EYEBOLT- 1/4-20

$

$

Currently unavailable

21

Homelite JA992818

SPRING- Extension

$

$

Not available

22

Homelite JA994032

ARM- Idler
(Superseded to JA994552)

$

$

Currently unavailable

23

Homelite JA993943

ROD- Brake

$

$

Currently unavailable

24

Homelite JA992774

ROD- Clutch

$

$

Currently unavailable

25

Homelite JA375815

BRACKET- Front hanger

$

$

Currently unavailable

26

Homelite JA990507

SUPPORT- Front Axle

$

$

Currently unavailable

27

Homelite JA453017

WASHER- Flat 1/2"

$

$

Not available

28

Homelite JA992891

HANGER- Front

$

$

Currently unavailable

29

Homelite JA376102

SPRING- Compression

$

$

Not available

30

Homelite JA460008

PIN- Cotter

$

$

Currently unavailable

31

$

$

Currently unavailable

32

Homelite JA444708

NUT- Hex centerlock 1/4-20

$

$

Currently unavailable

33

Homelite JA994647

CLUTCH/BRAKE

$

$

Currently unavailable

34

Homelite JA345020

PEDAL- Rubber

$

$

Currently unavailable

35

Homelite JA375810

NUT- Push

$

$

Not available

36

Homelite JA181969

BRACKET- Brake spring

$

$

Currently unavailable

37

Homelite JA453009

WASHER- Flat 5/16"
(Superseded to UP07173)

$

$

Not available

38

Homelite JA460016

PIN- Cotter 3/32 x 1"

$

$

Currently unavailable

39

Homelite JA994042

ROD- Lift

$

$

Currently unavailable

40

Homelite JA991806

BRACKET- Damper

$27.99

$

Usually ships in 3-7 days

0
