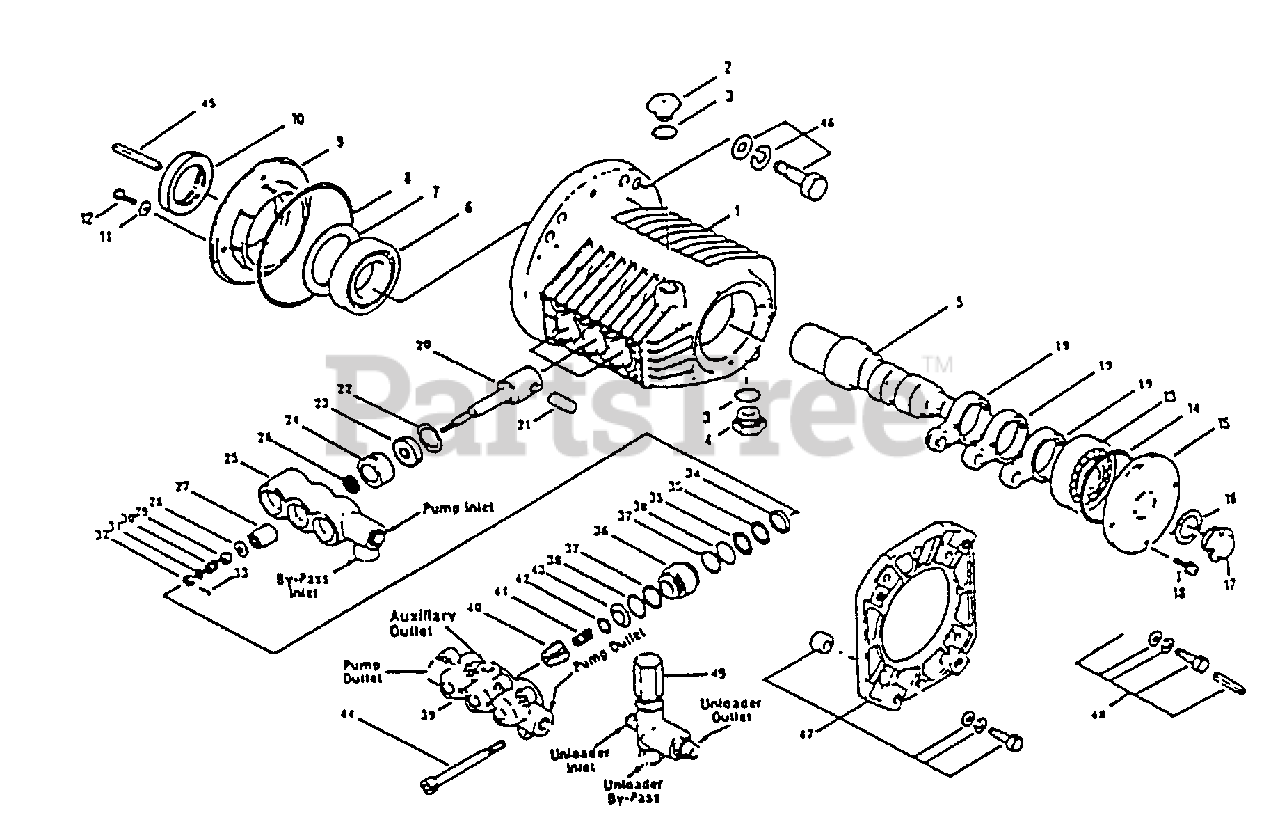

HPW 3050 H (UT-01814) - Homelite Pressure Washer SF Plunger Pump Parts Diagram

Pressure Washer

SF Plunger Pump Parts Diagram

  • Title

1

Homelite E45168

Crankcase

Note: All Models

$

$

Currently unavailable

2

Homelite E45690

Oil Filter Cap

Note: All Models

$

$

Currently unavailable

3

Homelite E14179

O-Ring, Oil Filter Cap

Note: Buna N. All Models.

$

$

Currently unavailable

4

Homelite E44842

Drain Plug

Note: All Models

$

$

Currently unavailable

5

Homelite E45576

Crankshaft (5.0mm)

Note: Used on model 4SF35G1

$

$

Currently unavailable

Homelite E45575

Crankshaft (5.7mm)

Note: Used on model 4SF40G1

$

$

Currently unavailable

Homelite E45574

Crankshaft (6.5mm)

Note: Used on model 4SF45G1

$

$

Currently unavailable

Homelite E45573

Crankshaft (6.5mm)

Note: Used on model 4SF45G118

$

$

Currently unavailable

Homelite E45571

Crankshaft (9.7mm)

Note: Used on model 4SF40EL

$

$

Currently unavailable

Homelite E45570

Crankshaft (11.1mm)

Note: Used on model 4SF45EL

$

$

Currently unavailable

Homelite E45741

Crankshaft (11.5mm)

Note: Used on model 4SF50EL

$

$

Currently unavailable

6

Homelite E45174

Bearing-Inner

Note: All Models

$

$

Currently unavailable

7

Homelite E45173

Washer

Note: All Models

$

$

Currently unavailable

8

Homelite E89811

O-Ring, Bearing Case

Note: Buna N. All Models.

$

$

Currently unavailable

9

Homelite E45172

Bearing Case-Inner

Note: All Models

$

$

Currently unavailable

10

Homelite E141852

Oil Seal

Note: Buna N. All Models.

$

$

Currently unavailable

11

Homelite E150810

Sealing Washer

Note: All Models

$

$

Currently unavailable

12

Homelite E92520

Sems. Comb. Head Screw (M6 x 20)

Note: Zinc Plated. All Models.

$

$

Currently unavailable

13

Homelite E45175

Bearing-Outer

Note: All Models

$

$

Currently unavailable

14

Homelite E14037

O-Ring, Oil Gauge

Note: Buna N. All Models.

$

$

Currently unavailable

15

Homelite E45707

Bearing Cover

Note: All Models

$

$

Currently unavailable

16

Homelite E44428

Flat Flex Gasket

Note: All Models

$7.49

$

Usually ships in 3-7 days

0

17

Homelite E43987

Bubble Oil Gauge

Note: All Models

$

$

Currently unavailable

18

Homelite E92519

Sems. Comb. Head Screw (M6 x 16)

Note: Zinc Plated. All Models.

$

$

Currently unavailable

19

Homelite E45572

Connecting Rod-"H"

Note: All Models

$

$

Currently unavailable

20

Homelite E45180

Piston Rod

Note: All Models

$

$

Currently unavailable

Homelite E45378

Piston Rod

Note: Unchromed. All Models.

$

$

Currently unavailable

21

Homelite E45179

Piston Pin

Note: All Models

$

$

Currently unavailable

22

Homelite E26952

Seal Washer

Note: All Models

$

$

Currently unavailable

23

Homelite E27339

Oil Seal

Note: Buna N. All Models

$

$

Currently unavailable

24

Homelite E45183

Seal Retainer

Note: All Models

$

$

Currently unavailable

25

Homelite E45187

Inlet Manifold

Note: Brass. All Models.

$

$

Currently unavailable

26

Homelite E45188

Lo-Pressure Seal

Note: Buna N. All Models.

$

$

Currently unavailable

27

Homelite E45184

Ceramic Plunger

Note: All Models

$

$

Currently unavailable

Homelite E45848

Ceramic Plunger-"H"

Note: All "H" Models.

$

$

Currently unavailable

28

Homelite E45185

Inlet Valve

Note: 304SS. All Models.

$

$

Currently unavailable

Homelite E45845

Inlet Valve-"H"

Note: 304SS. All "H" Models

$

$

Currently unavailable

29

Homelite E44871

Spacer

Note: All Models

$

$

Currently unavailable

30

Homelite E45186

Inlet Valve Spring

Note: 304SS. All Models.

$

$

Currently unavailable

31

Homelite E88575

Conical Washer (M6)

Note: 304SS. All Models.

$

$

Currently unavailable

32

Homelite E27000

Slotted Nut (M6)

Note: 304SS. All Models.

$

$

Currently unavailable

33

Homelite E14158

Cotter Pin

Note: 304SS. All Models.

$

$

Currently unavailable

34

Homelite E45190

Female Adapter

Note: Brass. All Models.

$

$

Currently unavailable

35

Homelite E45191

V-Packing

Note: Buna N. All Models.

$

$

Currently unavailable

36

Homelite E45192

Male Adapter-Spacer

Note: Brass. All Models.

$

$

Currently unavailable

37

Homelite E21986

Backup Ring

Note: Teflon. All Models.

$

$

Currently unavailable

38

Homelite E43781

O-Ring, Adapter

Note: Buna N. All Models.

$

$

Currently unavailable

39

Homelite E45193

Discharge Manifold-Bypass

Note: Brass. All Models.

$

$

Currently unavailable

40

Homelite E44564

Valve Spring Retainer

Note: PYDF. All Models.

$

$

Currently unavailable

41

Homelite E43751

Valve Spring

Note: 304SS. All Models.

$

$

Currently unavailable

42

Homelite E43721

Discharge Valve

Note: 304SS. All Models.

$

$

Currently unavailable

43

Homelite E45194

Discharge Valve Seal

Note: 304SS. All Models.

$

$

Currently unavailable

44

Homelite E87860

Hex, Socket Head Screw (M8 x 100)

Note: Zinc Plated. All Models.

$

$

Currently unavailable

45

Homelite UNKNOWN

UNKNOWN

$

$

Currently unavailable

46

Homelite E30518

Bolt Mount Kit-Gas

Note: 35G1, 40G1, 45G1

$

$

Currently unavailable

Homelite E19891

Washer (M12)

Note: Included with Pump

$

$

Currently unavailable

Homelite E12508

Split Lock Washer (M12)

Note: Included with Pump

$

$

Currently unavailable

Homelite E45208

Hex Head Screw (1/2-13 x 45)

Note: Included with Pump

$

$

Currently unavailable

Homelite E44455

Key (1/4 x 1/4 2-1/2)

Note: Included with Pump

$

$

Currently unavailable

Homelite E87788

Set Screw

Note: Included with Pump

$

$

Currently unavailable

Homelite E06106

Antiseize Lubricant

Note: Included with Pump

$

$

Currently unavailable

46

Homelite E30513

Bolt Mount Kit - Electric

Note: 40EL, 45EL, 50EL

$

$

Currently unavailable

Homelite E19891

Washer (M12)

Note: Included with Pump

$

$

Currently unavailable

Homelite E12508

Split Lock Washer (M12)

Note: Included with Pump

$

$

Currently unavailable

Homelite E45208

Hex Head Screw (1/2-13 x 45)

Note: Included with Pump

$

$

Currently unavailable

Homelite E45217

Key (1/4 x 1/4 x 2-1/2) HD

Note: Included with Pump

$

$

Currently unavailable

Homelite E87788

Set Screw

Note: Included with Pump

$

$

Currently unavailable

Homelite E06106

Anti Seize Lubricant

Note: Included with Pump

$

$

Currently unavailable

47

Homelite E30972

Adapter Mount Kit - Gas

Note: 35G1, 40G1, 45G1 (Long Shaft Eng.)

$

$

Currently unavailable

Homelite E45215

Flange

Note: Included with Pump

$

$

Currently unavailable

Homelite E45216

Spacer (Aluminum)

Note: Included with Pump

$

$

Currently unavailable

Homelite E12490

Washer (M10)

Note: Included with Pump

$

$

Currently unavailable

Homelite E12503

Split Lock Washer (M10)

Note: Included with Pump

$

$

Currently unavailable

Homelite E44968

Hex Head Screw (3/8-16 x 38)

Note: Included with Pump

$

$

Currently unavailable

48

Homelite E30974

BS Bolt Kit (Short Shaft Eng.)

Note: (Optional) 35G1, 40G1, 45G1

$

$

Currently unavailable

Homelite E45220

Spacer (Iron)

$

$

Currently unavailable

Homelite E45221

Hex Head Screw (3/8-16 x 30)

$

$

Currently unavailable

Homelite E12503

Split Lock Washer (M10)

$

$

Currently unavailable

Homelite E12940

Washer (M10)

$

$

Currently unavailable

Homelite E44455

Key (1/4 x 1/4 x 2-1/2)

$

$

Currently unavailable

49

Homelite E07600

Regulating Unloader

Note: All Models

$

$

Currently unavailable

Homelite E34054

Seal Kit

Note: (Includes 26, 33, 35, 38) All Models.

$

$

Currently unavailable

Homelite E34055

Valve Kit

Note: (Includes 37, 38, 40, 41, 42, 43) All Models.

$

$

Currently unavailable

Homelite E44050

Oil Gauge Removal Tool

Note: All Models

$

$

Currently unavailable
