HPW 2250 V (UT-01813) - Homelite Pressure Washer Triplex Plunger Pump Parts Diagram

Pressure Washer

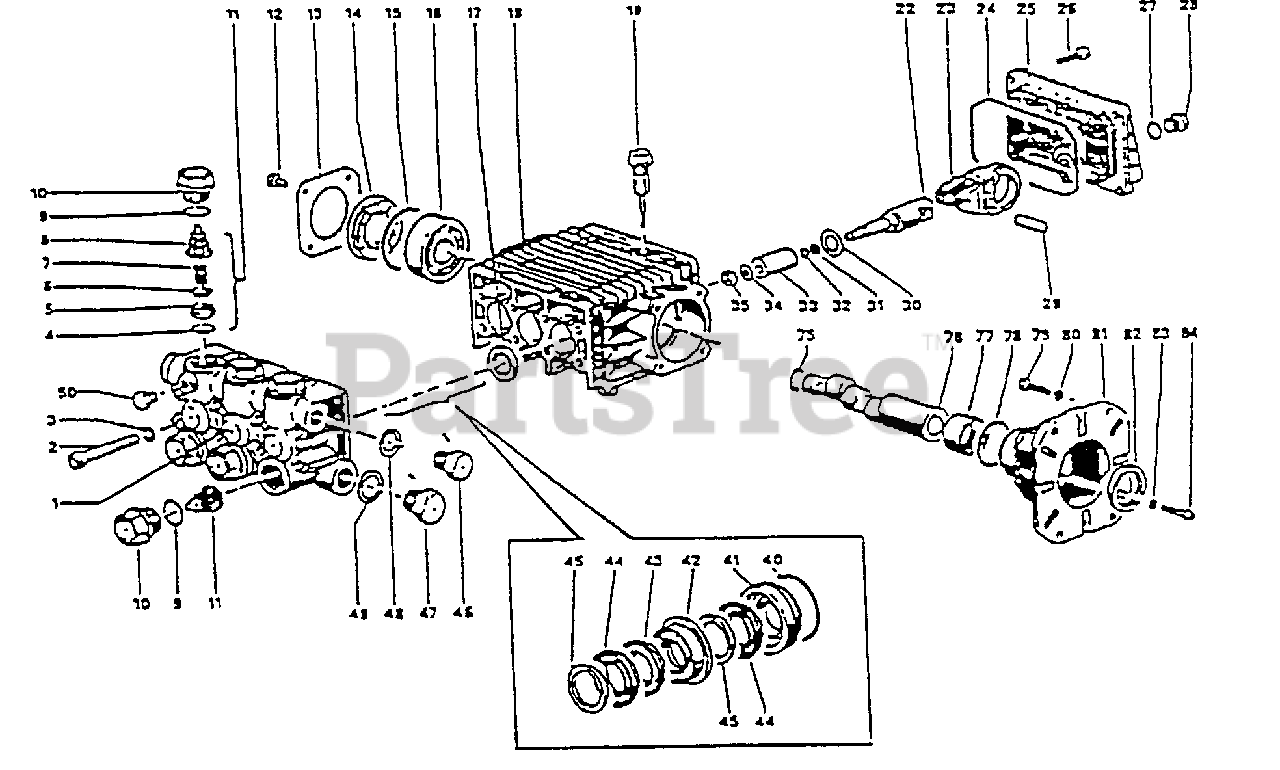

Triplex Plunger Pump Parts Diagram

  • Title
1

Homelite E44120041

Pump Head

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

5

Homelite E36200366

Valve Seal

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

8

Homelite E36202551

Valve Cage

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

11

Homelite E36711501

Valve Assembly

$

$

Currently unavailable

$

$

Currently unavailable

13

Homelite E50150074

Bearing Cover

$

$

Currently unavailable

14

$

$

Currently unavailable

15

$

$

Currently unavailable

16

Homelite E91822800

Ball Bearing

$

$

Currently unavailable

17

$

$

Currently unavailable

18

Homelite E44010022

Crankcase

$

$

Currently unavailable

19

Homelite E92210200

Oil Dip Stick

$

$

Currently unavailable

22

Homelite E44050055

Piston Guide

$

$

Currently unavailable

23

Homelite E44030022

Connecting Rod

$

$

Currently unavailable

24

$

$

Currently unavailable

25

Homelite E44160022

Rear Cover

$

$

Currently unavailable

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Homelite E98204100

Cap Screw

$

$

Currently unavailable

$

$

Currently unavailable

30

$

$

Currently unavailable

31

Homelite E90502200

Anti-Ext. Ring

$

$

Currently unavailable

32

$

$

Currently unavailable

33

$

$

Currently unavailable

34

$

$

Currently unavailable

$

$

Currently unavailable

40

$

$

Currently unavailable

41

Homelite E44080070

Packing Retainer

$

$

Currently unavailable

42

Homelite E52216670

Intermed. Ring

$

$

Currently unavailable

43

$

$

Currently unavailable

44

$

$

Currently unavailable

45

Homelite E51100051

Head Ring

$

$

Currently unavailable

46

Homelite E98210000

Cap Screw

$

$

Currently unavailable

47

Homelite E98217500

Cap Screw

$

$

Currently unavailable

48

$

$

Currently unavailable

49

$

$

Currently unavailable

50

Homelite E98196600

Cap Screw

$

$

Currently unavailable

75

Homelite E90063500

Retaining Ring

$

$

Currently unavailable

76

Homelite E44022065

Crankshaft

$

$

Currently unavailable

77

Homelite E91856800

Roller Bearing

$

$

Currently unavailable

78

$

$

Currently unavailable

79

Homelite E99275500

Screw, 5/16 x 1

$

$

Currently unavailable

Homelite E99334500

Screw, 3/8 x 1

$

$

Currently unavailable

80

Homelite E96702000

Washer, 3 mm

$

$

Currently unavailable

Homelite E96710400

Washer, 10 mm

$

$

Currently unavailable

81

Homelite E10051822

Gas Flange

$

$

Currently unavailable

82

$

$

Currently unavailable

83

$

$

Currently unavailable

$

$

Currently unavailable
