HPW 1550 B (UT-01811) - Homelite Pressure Washer Unloader Parts Diagram

Pressure Washer

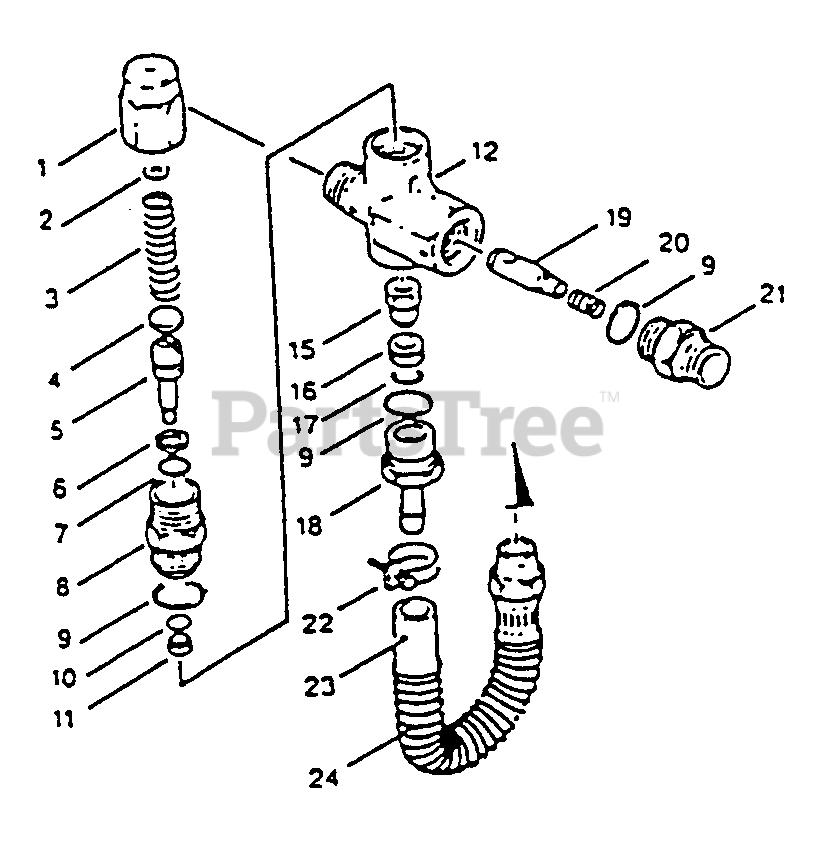

Unloader Parts Diagram

  • Title
1

Homelite E108113

Hex Adjusting Cap

Note: All Models

$

$

Currently unavailable

2

Homelite E12488

Washer-Spring

Note: All Models

$

$

Currently unavailable

3

Homelite E107671

Coil Spring - 1500 PSI

Note: All Models

$

$

Currently unavailable

4

Homelite E107672

Spring Retainer

Note: All Models

$

$

Currently unavailable

5

Homelite E45694

Piston Stem (M5)

Note: All Models

$

$

Currently unavailable

6

Homelite E20184

Back-up Ring

Note: All Models

$

$

Currently unavailable

7

Homelite E14190

"O"-Ring

Note: All Models

$

$

Currently unavailable

8

Homelite E107673

Piston Retainer

Note: All Models

$

$

Currently unavailable

9

Homelite E13969

"O"-Ring

Note: All Models

$

$

Currently unavailable

10

Homelite E14759

"O"-Ring

Note: All Models

$

$

Currently unavailable

11

Homelite E107675

Back-up Ring

Note: All Models

$

$

Currently unavailable

12

Homelite E107669

Body

Note: All Models

$

$

Currently unavailable

15

Homelite E45696

Valve and Ball Assembly (M5)

Note: All Models

$

$

Currently unavailable

16

Homelite E107680

Valve Seat

Note: All Models

$

$

Currently unavailable

17

Homelite E13963

"O"-Ring

Note: All Models

$

$

Currently unavailable

18

Homelite E45865

By-Pass Fitting w/Barb

Note: All Models

$

$

Currently unavailable

19

Homelite E45203

Flow Balancer w/o-ring

Note: All Models

$

$

Currently unavailable

20

Homelite E45924

Spring - 85 G

Note: All Models

$

$

Currently unavailable

21

Homelite E107681

Discharge Fitting 3/8" M

Note: All Models

$

$

Currently unavailable

22

Homelite E45929

Hose Clamp

Note: All Models

$

$

Currently unavailable

23

Homelite E45866

By-Pass Hose 5" x 1/4"

Note: All Models

$

$

Currently unavailable

24

Homelite E45870

By-Pass Hose Spring

Note: All Models

$

$

Currently unavailable

Homelite E32097

O-Ring Kit

Note: (Includes 6, 7, 9, 10, 11) All Models

$

$

Currently unavailable

Homelite E31047

Locking Nut

Note: Optional. All Models

$

$

Currently unavailable
