HPW 1050 E (UT-01810) - Homelite Pressure Washer Shur-Lok Injector And Unloader Parts Diagram

Pressure Washer

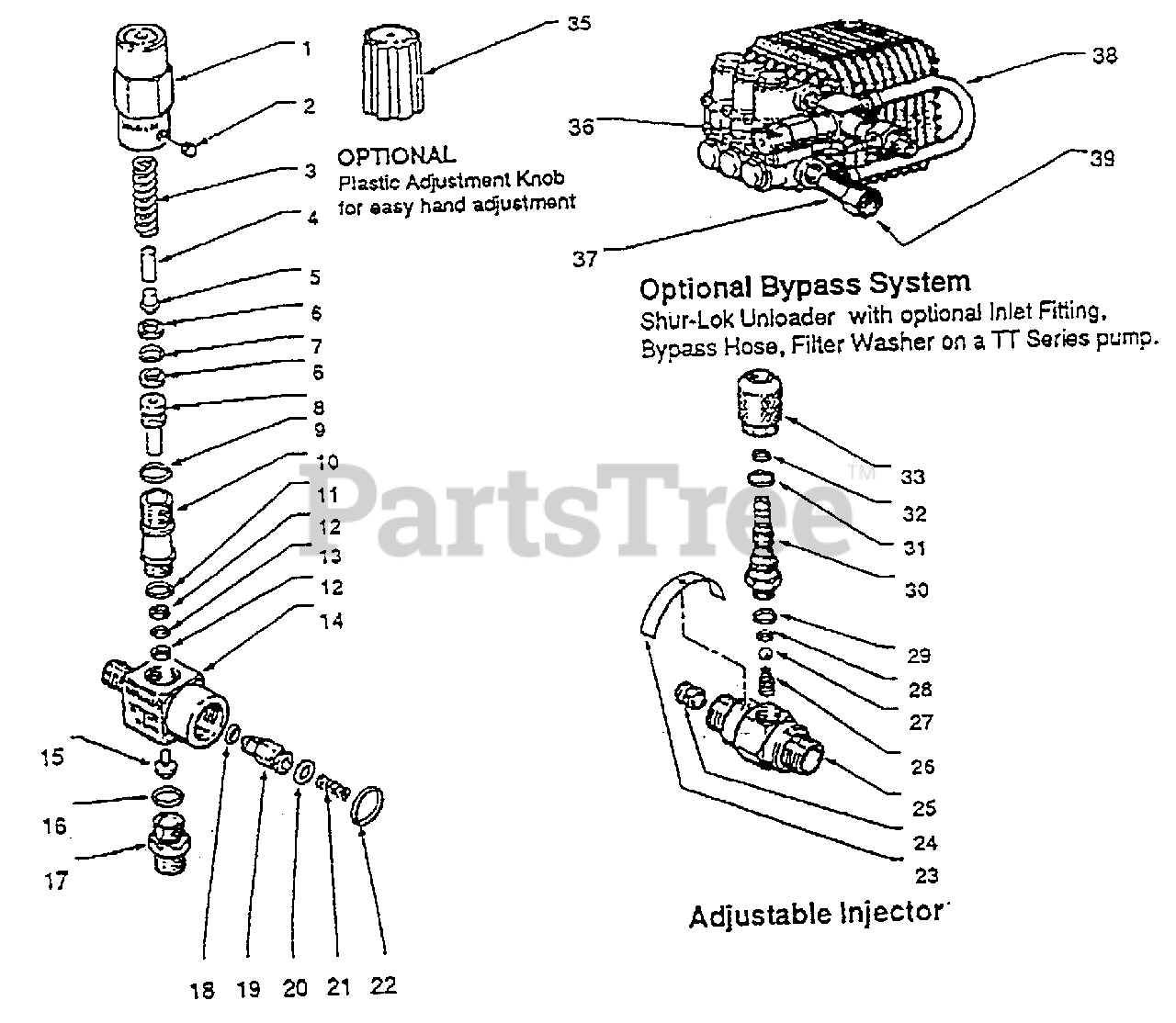

Shur-Lok Injector And Unloader Parts Diagram

  • Title

1

Homelite 510052

Adj. Knob. 700 PSI

$

$

Currently unavailable

Homelite 510064

Adj. Knob, 1000 PSI

$

$

Currently unavailable

Homelite 510048

Adj. Knob, 1200 PSI

$

$

Currently unavailable

Homelite 510056

Adj. Knob. 1500 PSI

$

$

Currently unavailable

Homelite 510059

Adj. Knob, 2000 PSI

$

$

Currently unavailable

2

Homelite 660007

Stop, Adj. Knob

$

$

Currently unavailable

3

Homelite 720008

Spring, 700 PSI

$

$

Currently unavailable

Homelite 720004

Spring, 1000, 1200,1500 PSI

$

$

Currently unavailable

Homelite 720007

Spring, 2000 PSI

$

$

Currently unavailable

4

Homelite 520009

Spring Rod

$

$

Currently unavailable

5

Homelite 520004

Spring Seal

$

$

Currently unavailable

6

Homelite 660004

Back-Up Ring, Piston

$

$

Currently unavailable

7

Homelite 701011

O-Ring

$

$

Currently unavailable

8

Homelite 520001

Piston

$

$

Currently unavailable

9

Homelite 701013

O-Ring

$

$

Currently unavailable

10

Homelite 510047

Barrel Stem Retainer

$

$

Currently unavailable

11

Homelite 700013

O-Ring

$

$

Currently unavailable

12

Homelite 660005

Back-Up Ring, Body

$

$

Currently unavailable

13

Homelite 700011

O-Ring

$

$

Currently unavailable

14

Homelite 510046

Body, Shur-Lok

$

$

Currently unavailable

15

Homelite 520002

Ball, Piston

$

$

Currently unavailable

16

Homelite 70101390

O-Ring

$

$

Currently unavailable

17

Homelite 520010

Bypass Fitting

$

$

Currently unavailable

18

Homelite 70110590

O-Ring

$

$

Currently unavailable

19

Homelite 510051

Back Flow Check

$

$

Currently unavailable

20

Homelite 700010

O-Ring

$

$

Currently unavailable

21

Homelite 720005

Spring, Check

$

$

Currently unavailable

22

Homelite 701016

O-Ring

$

$

Currently unavailable

23

Homelite 400100

Label, .070

Note: Chemical Injector (100401, 100411, 100354, 100374, 100406)

$

$

Currently unavailable

Homelite 400101

Label, .083

Note: Chemical Injector (100402, 100412, 100358, 100378, 100407)

$

$

Currently unavailable

Homelite 400102

Label, .091

Note: Chemical Injector (100403, 100413, 100362, 100382, 100408)

$

$

Currently unavailable

24

Homelite 520005

Nozzle, .070

Note: Chemical Injector (100401, 100411, 100354, 100374, 100406)

$

$

Currently unavailable

Homelite 520006

Nozzle, .083

Note: Chemical Injector (100402, 100412, 100358, 100378, 100407)

$

$

Currently unavailable

Homelite 520007

Nozzle, .091

Note: Chemical Injector (100403, 100413, 100362, 100382, 100408)

$

$

Currently unavailable

25

Homelite 510053

Injector Body

Note: Chemical Injector

$

$

Currently unavailable

26

Homelite 720006

Spring

Note: Chemical Injector

$

$

Currently unavailable

27

Homelite 520008

Bag

Note: Chemical Injector

$

$

Currently unavailable

28

Homelite 701008V

O-Ring

Note: Chemical Injector

$

$

Currently unavailable

29

Homelite 700014

O-Ring

Note: Chemical Injector

$

$

Currently unavailable

30

Homelite 510057

Hose Barb

Note: Chemical Injector

$

$

Currently unavailable

31

Homelite 701012

O-Ring

Note: Chemical Injector

$

$

Currently unavailable

32

Homelite 701010

O-Ring

Note: Chemical Injector

$

$

Currently unavailable

33

Homelite 510058

Chemical Adj. Knob

Note: Chemical Injector

$

$

Currently unavailable

35

Homelite 660008

Plastic Adj. Knob

Note: Chemical Injector

$

$

Currently unavailable

36

Shur-Lok Unloader

Note: Chemical Injector

$

$

Not available

37

Homelite 680007

Inlet Fitting

Note: Chemical Injector

$

$

Currently unavailable

38

Homelite 680008

Bypass Hose

Note: Chemical Injector

$

$

Currently unavailable

39

Homelite 700004

Inlet Filter

Note: Chemical Injector

$

$

Currently unavailable

Homelite 190037

Repair Kit for Unloader

Note: Chemical Injector

$

$

Currently unavailable

Homelite 190039

Repair Kit for Chem. Ini.

Note: Chemical Injector

$

$

Currently unavailable
