HPP-1900 - Echo Pressure Washer Manifold, Piston, Pressure Gauge, Inlet, Outlet, Valves, Rebuild Kits Parts Diagram

Pressure Washer

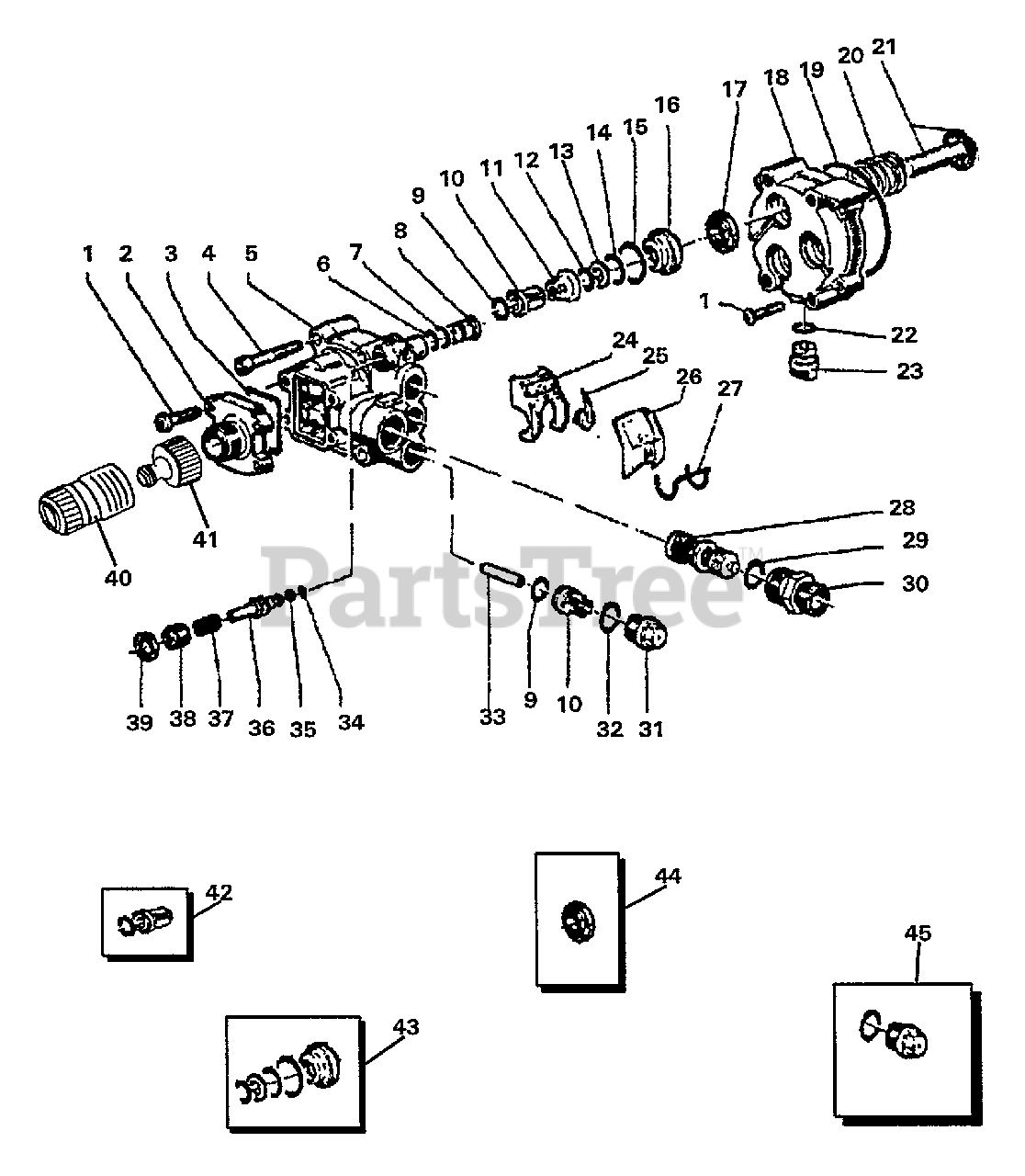

Manifold, Piston, Pressure Gauge, Inlet, Outlet, Valves, Rebuild Kits Parts Diagram

  • Title

1

Echo 7399191400

SCREW - 6X30
(Superseded to Discontinued)

$

$

Not available

2

Echo 7356210251

COVER

$12.99

$

Usually ships in 2-4 days

0

3

Echo 7390387700

O-RING - 1.549 X .103
(Superseded to Discontinued)

$

$

Not available

4

Echo 7399314400

SCREW - 8X50
(Superseded to Discontinued)

$

$

Not available

5

Echo 7356120022

HEAD, PUMP
(Superseded to Discontinued)

$

$

Not available

6

Echo 7390358100

O-RING
(Superseded to Discontinued)

$

$

Not available

7

Echo 7390381800

O-RING - .296 X .084

$0.99

$

Usually ships in 2-4 days

0

8

Echo 7354210970

CYLINDER, PRESSURE GAUGE
(Superseded to Discontinued)

$

$

Not available

9

Echo 7390358900

O-RING, .489 X.070
(Superseded to Discontinued)

$

$

Not available

10

Echo 7336711601

UNIT VALVE
(Superseded to Discontinued)

$

$

Not available

11

Echo 7356210151

SPACER
(Superseded to Discontinued)

$

$

Not available

12

Echo 7390382700

O-RING - .469 X.103
(Superseded to Discontinued)

$

$

Not available

13

Echo 7390507300

RING
(Superseded to Discontinued)

$

$

Not available

14

Echo 7390359600

O-RING - .739 X .070
(Superseded to Discontinued)

$

$

Not available

15

Echo 7390385700

O-RING - .937 X .103
(Superseded to Discontinued)

$

$

Not available

16

Echo 7356080051

SPACER
(Superseded to Discontinued)

$

$

Not available

17

Echo 7390154200

SEAL, OIL
(Superseded to Discontinued)

$

$

Not available

18

Echo 7356210422

FLANGE
(Superseded to Discontinued)

$

$

Not available

19

Echo 7390391600

O-RING - 3.237 X .103
(Superseded to Discontinued)

$

$

Not available

20

Echo 7394756400

SPRING
(Superseded to Discontinued)

$

$

Not available

21

Echo 7356040101

PISTON
(Superseded to Discontinued)

$

$

Not available

22

Echo 7390383000

O-RING
(Superseded to Discontinued)

$

$

Not available

23

Echo 7356210051

PLUG
(Superseded to Discontinued)

$

$

Not available

24

Echo 7336259001

DIAL
(Superseded to Discontinued)

$

$

Not available

25

Echo 7336257851

INDICATOR
(Superseded to Discontinued)

$

$

Not available

26

Echo 7336257751

COVER, DIAL
(Superseded to Discontinued)

$

$

Not available

27

Echo 7394871800

SPRING
(Superseded to Discontinued)

$

$

Not available

28

Echo 7313200000

VALVE KIT
(Superseded to Discontinued)

$

$

Not available

29

Echo 7390384700

O-RING - .797 X.103
(Superseded to Discontinued)

$

$

Not available

30

Echo 7336322370

FITTING, OUTLET
(Superseded to Discontinued)

$

$

Not available

31

Echo 7398213500

PLUG, M18
(Superseded to Discontinued)

$

$

Not available

32

Echo 7390359300

O-RING - .614 X .070
(Superseded to Discontinued)

Note: Includes In ITEM 45

$

$

Not available

33

Echo 7356210351

PIN
(Superseded to Discontinued)

$

$

Not available

34

Echo 7390366200

O-RING - .118 X .079
(Superseded to Discontinued)

$

$

Not available

35

Echo 7390500400

RING, BACK-UP - .114 X .070
(Superseded to Discontinued)

$

$

Not available

36

Echo 7336258970

GAUGE, PISTON
(Superseded to Discontinued)

$

$

Not available

37

Echo 7394733800

SPRING
(Superseded to Discontinued)

$

$

Not available

38

Echo 7336258070

SCREW - 14X1
(Superseded to Discontinued)

$

$

Not available

39

Echo 7392249200

NUT - 14
(Superseded to Discontinued)

$

$

Not available

40

Echo 7393657000

COUPLING, QUICK CONNECT - FEMALE
(Superseded to Discontinued)

$

$

Not available

41

Echo 7393668500

COUPLING, QUICK CONNECT - MALE

$8.49

$

Usually ships in 2-4 days

0

42

Echo 7313400000

VALVE KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 9 & 10

$

$

Not available

43

Echo 7314600000

VALVE PACKING KIT

Note: Includes ITEMS 12-16

$22.99

$

Usually ships in 2-4 days

0

44

Echo 7314700000

OIL SEAL KIT
(Superseded to Discontinued)

Note: Includes ITEM 17

$

$

Not available

45

Echo 7313300000

PLUG KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 31 & 32

$

$

Not available
