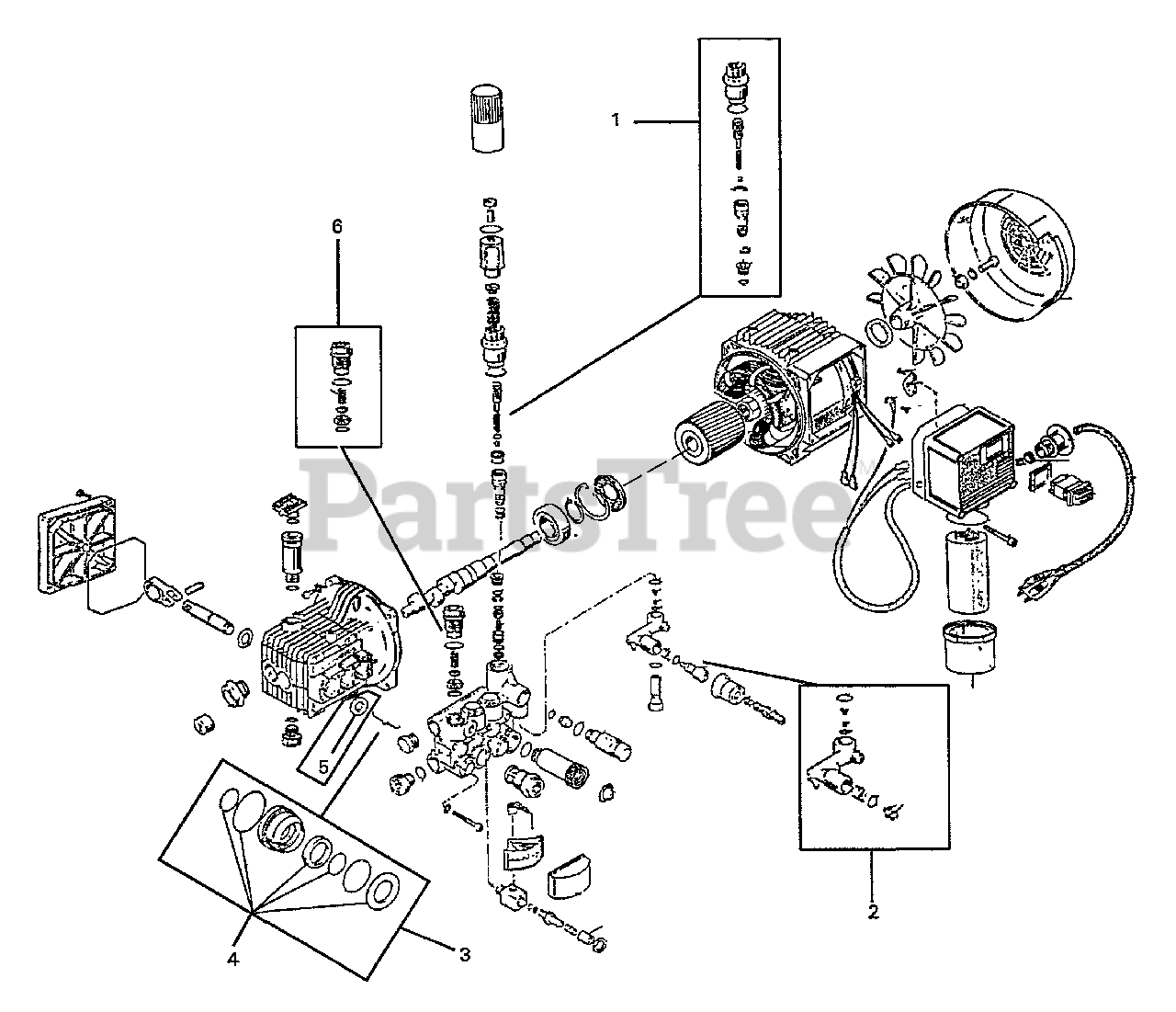

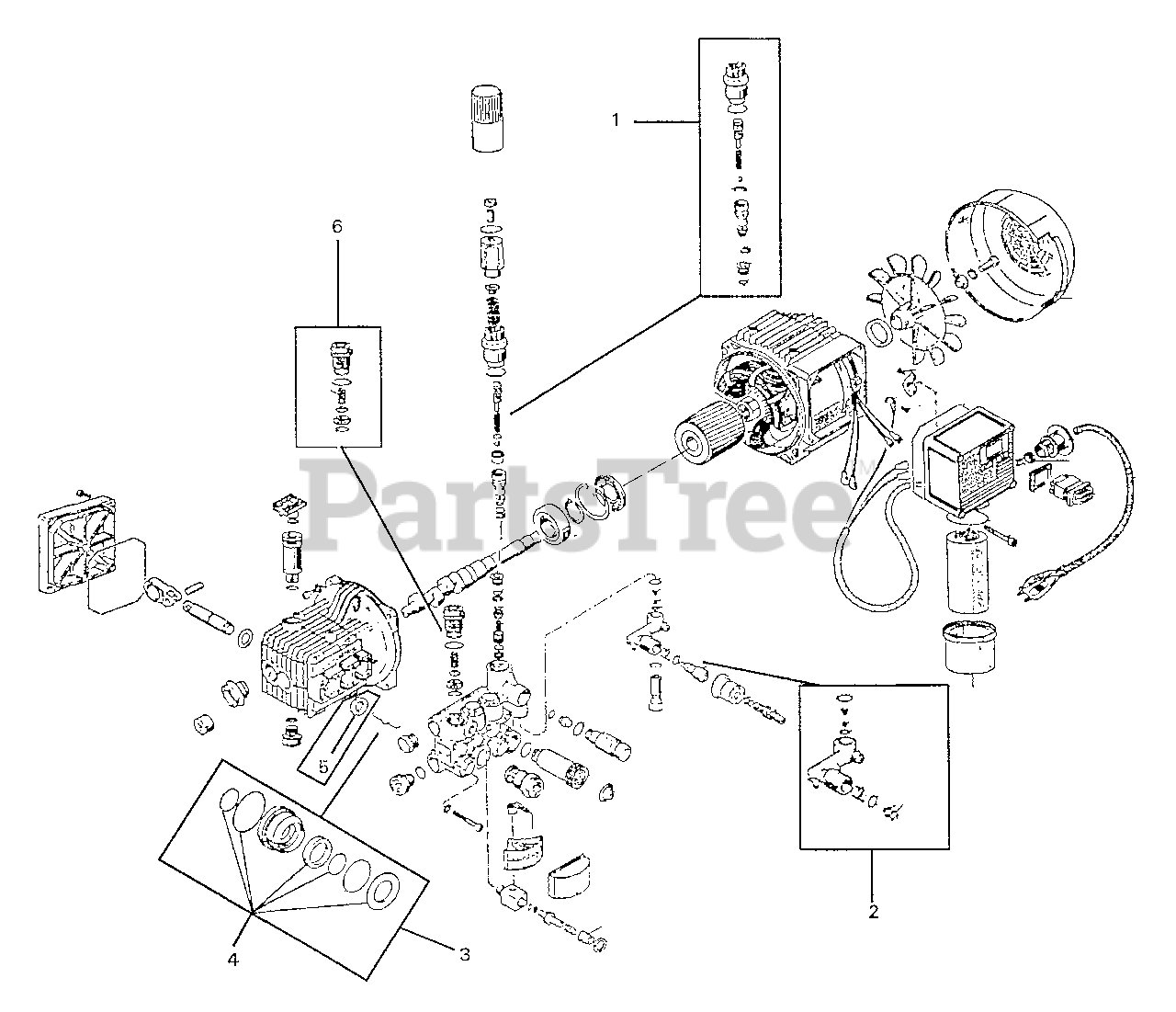

HPP-1890 - Echo Pressure Washer (SN: 2457 - 2912) (1992) Rebuild Kits Parts Diagram

Pressure Washer

Rebuild Kits Parts Diagram

  • Title
1

Echo 7334010201

PRESSURE CONTROL VALVE KIT
(Superseded to Discontinued)

Note: See "Manifold, Unloader, Inlet, Pressure Gauge, Injector" illustration and parts list. Refer to items 8 - 23 for parts breakdown.

$

$

Not available

2

Echo 7334009401

REBUILD RETAINER PACKING KIT
(Superseded to Discontinued)

Note: See "Manifold, Unloader, Inlet, Pressure Gauge, Injector" illustration and parts list. Refer to items 24 - 27, 29, 30, 33 & 35 for parts breakdown.

$

$

Not available

3

Echo 7334000104

RETAINER REBUILD PACKING KIT
(Superseded to Discontinued)

Note: See "Seals, Valves, Motor Housing, Hose, Accessories" illustration and parts list. Refer to items 26 - 31 for parts breakdown.

$

$

Not available

4

Echo 7334008701

O-RING KIT
(Superseded to Discontinued)

Note: See "Seals, Valves, Motor Housing, Hose, Accessories" illustration and parts list. Refer to items 26 - 29, & 31 for parts breakdown.

$

$

Not available

5

Echo 7334008301

OIL SEAL KIT

Note: See "Crankcase, Crankshaft, Piston, Electric Motor, Switch" illustration and parts list. Refer to item 32 for for parts breakdown.

$33.99

$

Usually ships in 2-4 days

0

6

Echo 7334000102

VALVE KIT
(Superseded to Discontinued)

Note: See "Seals, Valves, Motor Housing, Hose, Accessories" illustration and parts list. Refer to items 13 - 18 for parts breakdown.

$

$

Not available
