HPP-1890 - Echo Pressure Washer (SN: 2457 - 2912) (1992) Crankcase, Crankshaft, Piston, Electric Motor, Switch Parts Diagram

Pressure Washer

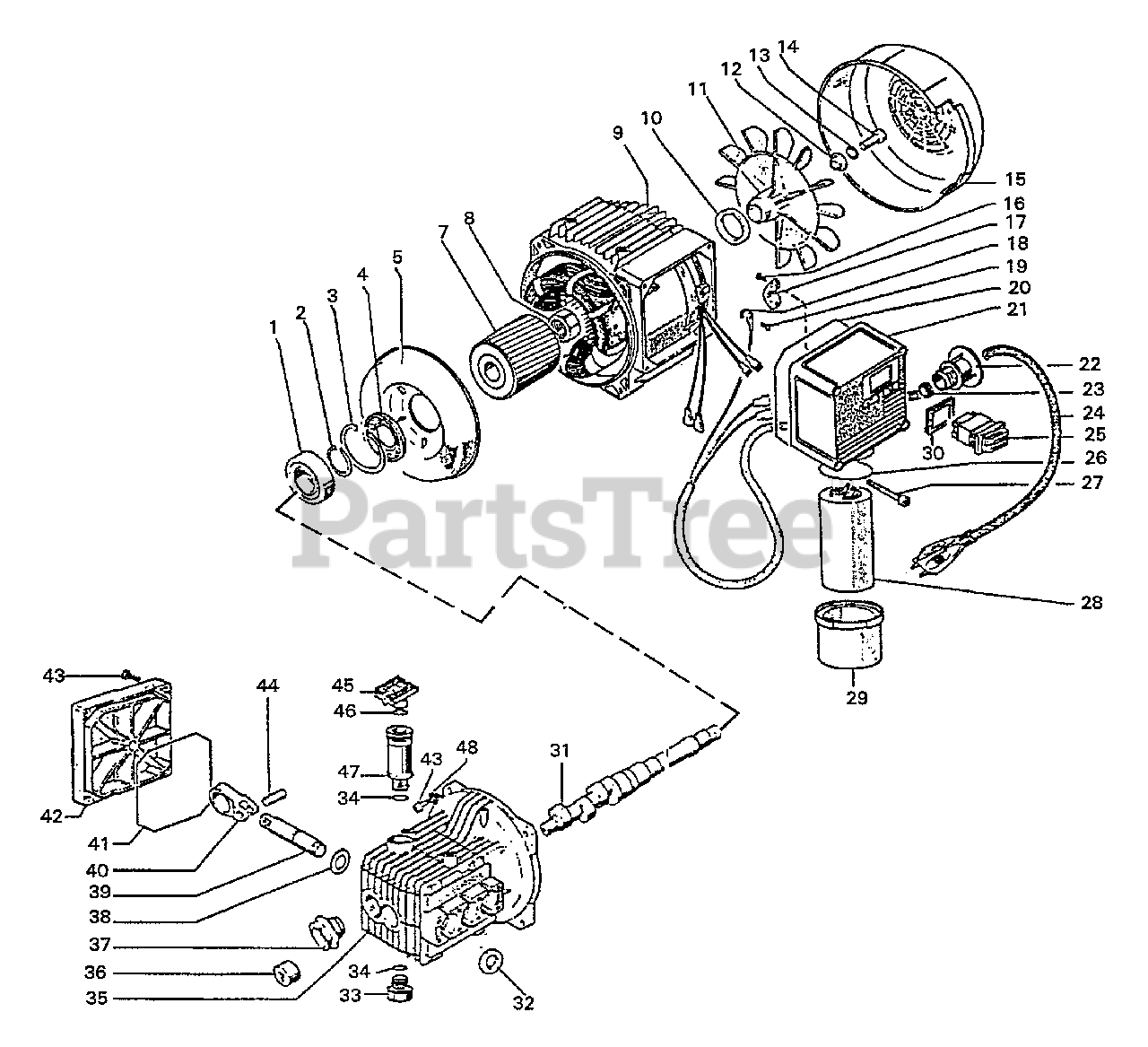

Crankcase, Crankshaft, Piston, Electric Motor, Switch Parts Diagram

  • Title

1

Echo 7391837300

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

2

Echo 7390066700

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

3

Echo 7390085000

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

4

Echo 7390165000

SEAL, OIL

$21.99

$

Usually ships in 2-4 days

0

5

------------------

UNKNOWN

$

$

Not available

7

Echo 7340337002

ROTOR
(Superseded to Discontinued)

$

$

Not available

8

Echo 7392266000

NUT - 22
(Superseded to Discontinued)

$

$

Not available

9

Echo 7340327002

STATOR
(Superseded to Discontinued)

$

$

Not available

10

Echo 7390163200

SEAL
(Superseded to Discontinued)

$

$

Not available

11

Echo 7345030051

FAN
(Superseded to Discontinued)

$

$

Not available

12

Echo 7345212570

SPACER, FAN
(Superseded to Discontinued)

$

$

Not available

13

Echo 7396701400

WASHER
(Superseded to Discontinued)

$

$

Not available

14

Echo 7399305900

SCREW - 8X20
(Superseded to Discontinued)

$

$

Not available

15

Echo 7345040051

COVER, FAN
(Superseded to Discontinued)

$

$

Not available

16

Echo 7399145000

SCREW
(Superseded to Discontinued)

$

$

Not available

17

Echo 7345211951

CLAMP
(Superseded to Discontinued)

$

$

Not available

18

Echo 7396691300

WASHER
(Superseded to Discontinued)

$

$

Not available

19

Echo 7399151500

SCREW - 5X12
(Superseded to Discontinued)

$

$

Not available

20

Echo 7390392000

O-RING
(Superseded to Discontinued)

$

$

Not available

21

Echo 7345212451

COVER, SWITCH
(Superseded to Discontinued)

$

$

Not available

22

Echo 7345212751

HOLDER, CABLE
(Superseded to Discontinued)

$

$

Not available

23

Echo 7345212147

GROMMET, CORD GRIP
(Superseded to Discontinued)

$

$

Not available

24

Echo 7310720901

CABLE ASSY
(Superseded to Discontinued)

$

$

Not available

25

Echo 7393502800

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

26

Echo 7390388900

O-RING, 1.925 X .103
(Superseded to Discontinued)

$

$

Not available

27

Echo 7399170500

SCREW - 5X65
(Superseded to Discontinued)

$

$

Not available

28

Echo 7393568800

CONDENSER
(Superseded to Discontinued)

$

$

Not available

29

Echo 7345212051

COVER, CAPACITOR
(Superseded to Discontinued)

$

$

Not available

30

Echo 7341212684

GASKET, SWITCH
(Superseded to Discontinued)

$

$

Not available

31

Echo 7355020335

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

32

Echo 7334008301

OIL SEAL KIT

Note: (CONTAINS 3 SEALS)

$33.99

$

Usually ships in 2-4 days

0

33

Echo 7398209100

PLUG
(Superseded to Discontinued)

$

$

Not available

34

Echo 7390383300

O-RING
(Superseded to Discontinued)

$

$

Not available

35

Echo 7355010022

CRANKCASE
(Superseded to Discontinued)

$

$

Not available

36

Echo 7391801400

BEARING, NEEDLE
(Superseded to Discontinued)

$

$

Not available

37

Echo 7397596800

INDICATOR - OIL LEVEL
(Superseded to Discontinued)

$

$

Not available

38

Echo 7396732000

WASHER
(Superseded to Discontinued)

$

$

Not available

39

Echo 7351055066

PISTON - STAINLESS
(Superseded to Discontinued)

$

$

Not available

40

Echo 7351030022

ROD, CONNECTING
(Superseded to Discontinued)

$

$

Not available

41

Echo 7390391700

GASKET, COVER

$2.99

$

Usually ships in 2-4 days

0

42

Echo 7355160051

COVER, CRANKCASE
(Superseded to Discontinued)

$

$

Not available

43

Echo 7399189700

SCREW - 6X25
(Superseded to Discontinued)

$

$

Not available

44

Echo 7397731000

PIN, CONNECTING ROD
(Superseded to Discontinued)

$

$

Not available

45

Echo 7355211251

COVER, OIL FILL
(Superseded to Discontinued)

$

$

Not available

46

Echo 7390382200

O-RING
(Superseded to Discontinued)

$

$

Not available

47

Echo 7355210051

SPACER, DIPSTICK
(Superseded to Discontinued)

$

$

Not available

48

Echo 7396693800

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available
