HPP-1890 - Echo Pressure Washer (SN: 1457 - 1606) (1993 - 1994) Seals, Valves, Motor Housing, Hose, Accessories Parts Diagram

Pressure Washer

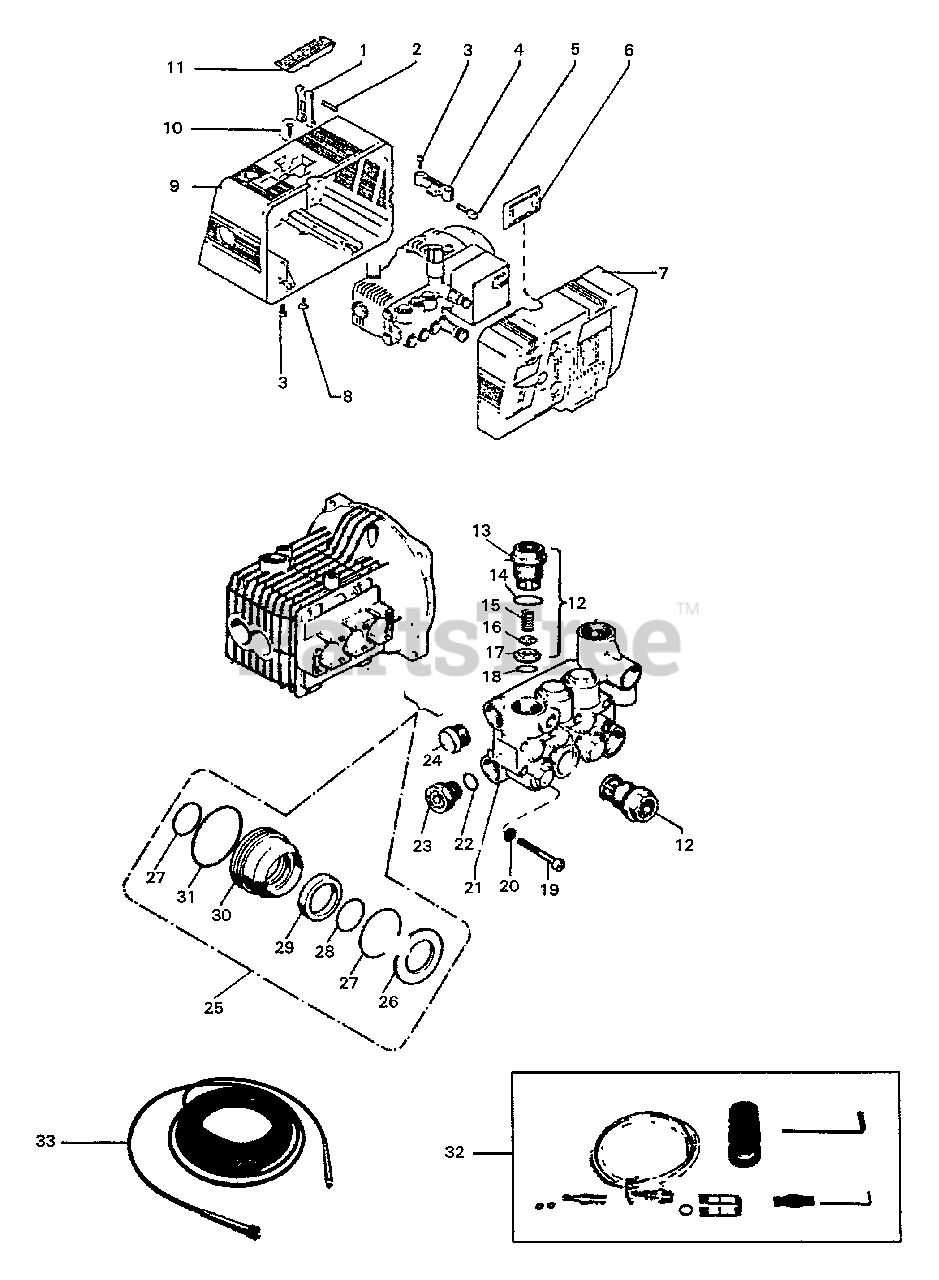

Seals, Valves, Motor Housing, Hose, Accessories Parts Diagram

  • Title

1

Echo 7355240751

ARM, HANDLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 7397620000

PIN, 8.5 X 34
(Superseded to Discontinued)

$

$

Not available

3

Echo 7399303900

SCREW - 8X16
(Superseded to Discontinued)

$

$

Not available

4

Echo 7355240251

PLATE, HANDLE RETAINER
(Superseded to Discontinued)

$

$

Not available

5

Echo 7355240451

PIN, HANDLE RETAINER
(Superseded to Discontinued)

$

$

Not available

6

Echo 7393502800

SWITCH, IGNITION
(Superseded to Discontinued)

$

$

Not available

7

Echo 7355230551

COVER - FRONT
(Superseded to Discontinued)

$

$

Not available

8

Echo 7398192400

PLUG
(Superseded to Discontinued)

$

$

Not available

9

Echo 7355230451

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 7399147400

SCREW - 4X13
(Superseded to Discontinued)

$

$

Not available

11

Echo 7355240351

HANDLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 7334000102

VALVE KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 13 - 18

$

$

Not available

13

------------------

CAP, VALVE

Note: USE VALVE KIT P/N 7334000102

$

$

Not available

14

------------------

O-RING

Note: USE VALVE KIT P/N 7334000102

$

$

Not available

15

------------------

SPRING, VALVE

Note: USE VALVE KIT P/N 7334000102

$

$

Not available

16

------------------

PLATE

Note: USE VALVE KIT P/N 7334000102

$

$

Not available

17

------------------

SEAT, VALVE

Note: USE VALVE KIT P/N 7334000102

$

$

Not available

18

Echo 7390384100

O-RING

Note: INCLUDED IN VALVE KIT P/N 7334000102

$0.99

$

Usually ships in 2-4 days

0

19

Echo 7399194300

SCREW - 6X40
(Superseded to Discontinued)

$

$

Not available

20

Echo 7396693800

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

21

Echo 7355120122

MANIFOLD
(Superseded to Discontinued)

$

$

Not available

22

Echo 7390359100

O-RING
(Superseded to Discontinued)

$

$

Not available

23

Echo 7398209000

PLUG
(Superseded to Discontinued)

$

$

Not available

24

Echo 7398210000

CAP, OIL DRAIN PLUG
(Superseded to Discontinued)

$

$

Not available

25

Echo 7334000104

RETAINER REBUILD PACKING KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 26 - 31

$

$

Not available

26

------------------

WASHER

$

$

Not available

27

Echo 7390383500

O-RING
(Superseded to Discontinued)

Note: (INCLUDED IN KITS P/N 7334000103 & RETAINER REBUILD PACKING KIT P/N 7334000104)

$

$

Not available

28

------------------

O-RING

Note: (INCLUDED IN KITS P/N 7334000103 & RETAINER REBUILD PACKING KIT P/N 7334000104)

$

$

Not available

29

------------------

PACKING

Note: (INCLUDED IN KITS P/N 7334000103 & RETAINER REBUILD PACKING KIT P/N 7334000104)

$

$

Not available

30

------------------

PACKING, RETAINER

Note: (INCLUDED IN KIT RETAINER REBUILD PACKING KIT P/N 7334000104)

$

$

Not available

31

Echo 7390360400

O-RING
(Superseded to Discontinued)

Note: (INCLUDED IN KITS P/N 7334000103 & RETAINER REBUILD PACKING KIT P/N 7334000104)

$

$

Not available

32

Echo 7355640501

ACCESSORY KIT
(Superseded to Discontinued)

$

$

Not available

33

Echo 731161005

HOSE - 8M
(Superseded to Discontinued)

$

$

Not available

34

Echo 7334008701

O-RING KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 26 - 29, 31; NOT SHOWN

$

$

Not available

Echo 7334000104

RETAINER REBUILD PACKING KIT
(Superseded to Discontinued)

$

$

Not available
