HPP-1890 - Echo Pressure Washer (Original Version) (1991) Spray Gun Parts Diagram

Pressure Washer

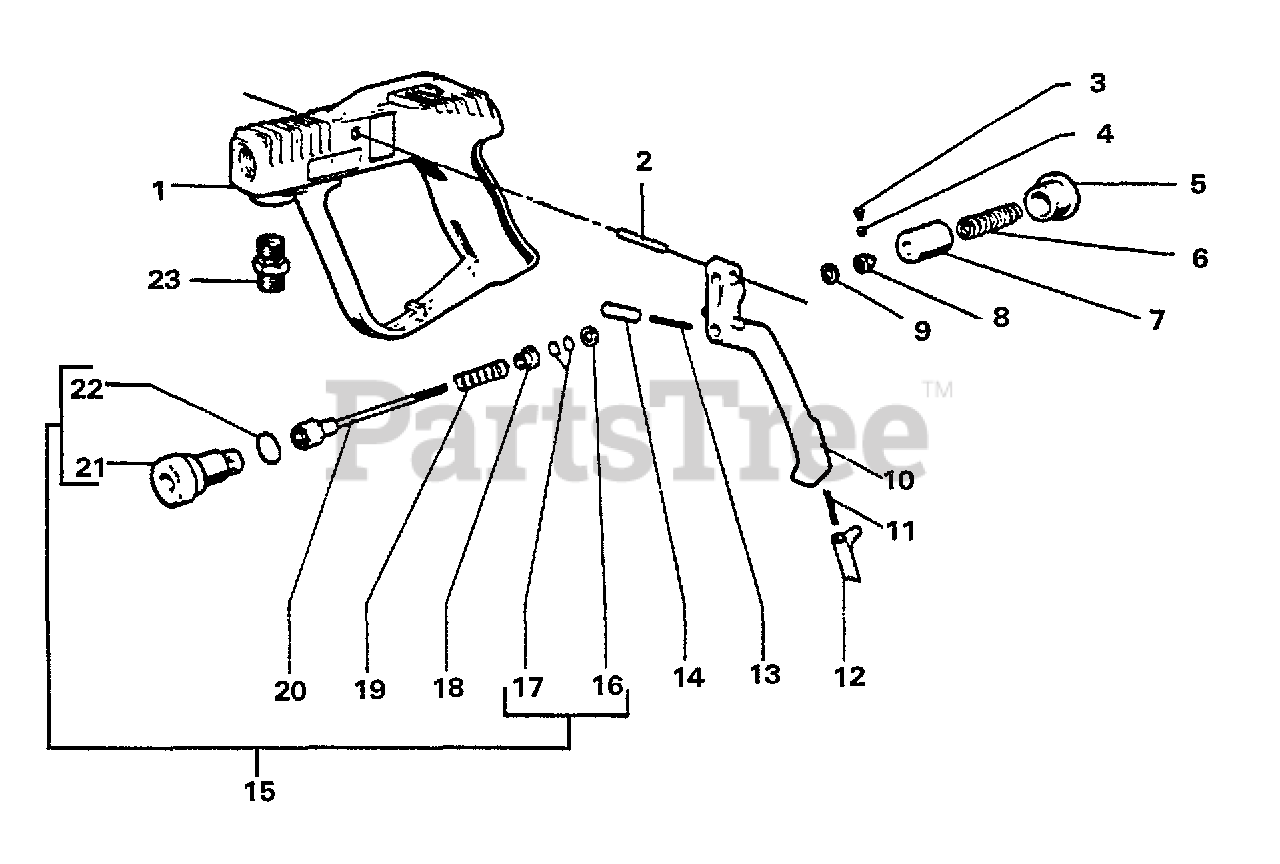

Spray Gun Parts Diagram

  • Title

Echo 7300000000

GRIP ASSY - CPT., SPRAY

Note: INCLUDES ITEMS 1 - 14, 16 - 23

$127.99

$

Usually ships in 2-4 days

0

1

Echo 7318204602

GRIP, BODY
(Superseded to Discontinued)

$

$

Not available

2

Echo 7397615500

PIN, CYLINDER
(Superseded to Discontinued)

$

$

Not available

3

Echo 7394821800

SPRING
(Superseded to Discontinued)

$

$

Not available

4

Echo 7397480200

BALL
(Superseded to Discontinued)

$

$

Not available

5

Echo 7398219000

CAP
(Superseded to Discontinued)

$

$

Not available

6

Echo 7394741400

SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo 7318205270

GUIDE, SPRING
(Superseded to Discontinued)

$

$

Not available

8

Echo 7318204951

RINGNUT
(Superseded to Discontinued)

$

$

Not available

9

Echo 7392194500

NUT - 4
(Superseded to Discontinued)

$

$

Not available

10

Echo 7318204851

LEVER, COMMAND
(Superseded to Discontinued)

$

$

Not available

11

Echo 7394730300

SPRING
(Superseded to Discontinued)

$

$

Not available

12

Echo 7318205051

PIN, LOCK SAFETY CATCH
(Superseded to Discontinued)

$

$

Not available

13

Echo 7394730500

SPRING
(Superseded to Discontinued)

$

$

Not available

14

Echo 7318205370

SHAFT
(Superseded to Discontinued)

$

$

Not available

15

Echo 7311610014

KIT, GRIP CONTROL VALVE
(Superseded to Discontinued)

Note: INCLUDES ITEMS 16, 17, 20 - 22

$

$

Not available

16

Echo 7390500700

RING, BACK-UP
(Superseded to Discontinued)

$

$

Not available

17

Echo 7390356800

O-RING
(Superseded to Discontinued)

$

$

Not available

18

Echo 7318204270

GUIDE, SPRING
(Superseded to Discontinued)

$

$

Not available

19

Echo 7394737800

SPRING
(Superseded to Discontinued)

$

$

Not available

20

Echo 7318205502

SHUTTER ROD ASSY
(Superseded to Discontinued)

$

$

Not available

21

Echo 7318205902

SEAT, VALVE
(Superseded to Discontinued)

$

$

Not available

22

$0.99

$

Usually ships in 2-4 days

0

23

Echo 7395284000

COUPLER
(Superseded to Discontinued)

$

$

Not available
