HPP-1890 - Echo Pressure Washer (Original Version) (1991) SEAL KITS, MOTOR HOUSING, HOSE, ACCESSORIES Parts Diagram

Pressure Washer

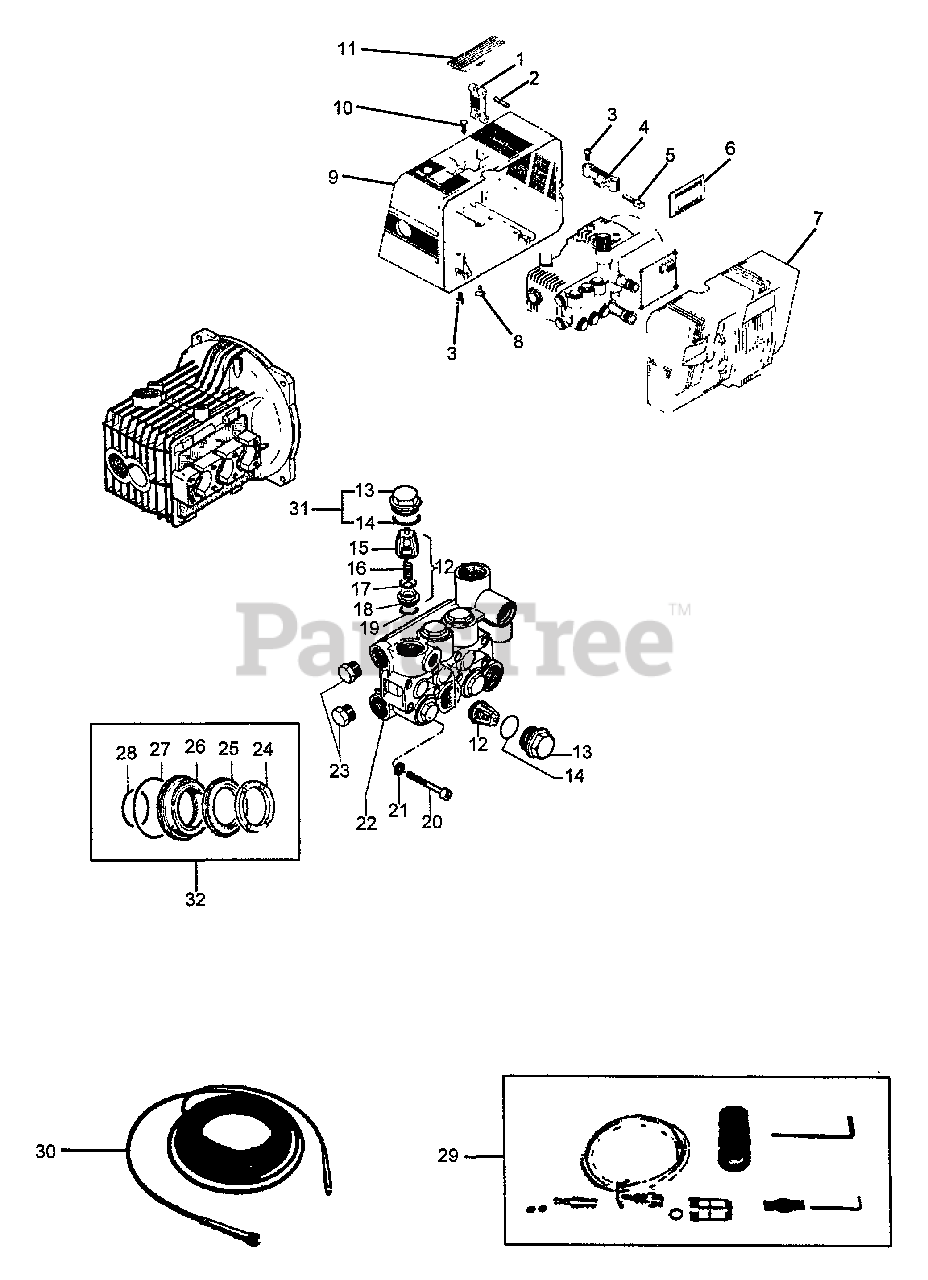

SEAL KITS, MOTOR HOUSING, HOSE, ACCESSORIES Parts Diagram

  • Title

1

Echo 7355240751

ARM, HANDLE
(Superseded to Discontinued)

$

$

Not available

2

Echo 7397620000

PIN, 8.5 X 34
(Superseded to Discontinued)

$

$

Not available

3

Echo 7399303900

SCREW - 8X16
(Superseded to Discontinued)

$

$

Not available

4

Echo 7355240251

PLATE, HANDLE RETAINER
(Superseded to Discontinued)

$

$

Not available

5

Echo 7355240451

PIN, HANDLE RETAINER
(Superseded to Discontinued)

$

$

Not available

6

Echo 7355235051

PLATE, ON-OFF
(Superseded to 7393502800)

$

$

Not available

7

Echo 7355230151

COVER - FRONT
(Superseded to 7355230551)

$

$

Not available

8

Echo 7398192400

PLUG
(Superseded to Discontinued)

$

$

Not available

9

Echo 7355230451

COVER - REAR
(Superseded to Discontinued)

$

$

Not available

10

Echo 7399147400

SCREW - 4X13
(Superseded to Discontinued)

$

$

Not available

11

Echo 7355240351

HANDLE
(Superseded to Discontinued)

$

$

Not available

12

Echo 7334000101

VALVE KIT

Note: Includes ITEMS 15-19

$71.99

$

Usually ships in 2-4 days

0

13

Echo 7398221800

CAP

Note: INCLUDED IN VALVE CAP KIT P/N 7334008401

$12.99

$

Usually ships in 2-4 days

0

14

Echo 7390384700

O-RING - .797 X.103
(Superseded to Discontinued)

Note: INCLUDED IN VALVE CAP KIT P/N 7334008401

$

$

Not available

15

Echo 7336200251

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

16

Echo 7394737600

SPRING
(Superseded to Discontinued)

$

$

Not available

17

Echo 7336200176

PLATE, VALVE
(Superseded to Discontinued)

$

$

Not available

18

Echo 7336200366

SEAT, VALVE
(Superseded to Discontinued)

$

$

Not available

19

Echo 7390384100

O-RING

$0.99

$

Usually ships in 2-4 days

0

20

Echo 7399194300

SCREW - 6X40
(Superseded to Discontinued)

$

$

Not available

21

Echo 7396693800

LOCKWASHER - 6
(Superseded to Discontinued)

$

$

Not available

22

Echo 7355120122

MANIFOLD
(Superseded to Discontinued)

$

$

Not available

23

Echo 7398210000

CAP, OIL DRAIN PLUG
(Superseded to Discontinued)

$

$

Not available

24

Echo 7351100051

RING, HEAD
(Superseded to Discontinued)

Note: INCLUDED IN PACKING KIT, COMPLETE P/N 7334008501 & PACKING KIT P/N 7334008701

$

$

Not available

25

Echo 7390261800

PACKING
(Superseded to Discontinued)

Note: INCLUDED IN PACKING KIT, COMPLETE P/N 7334008501 & PACKING KIT P/N 7334008701

$

$

Not available

26

Echo 7351080070

RETAINING, PACKING
(Superseded to Discontinued)

Note: INCLUDED IN PACKING KIT, COMPLETE P/N 7334008501

$

$

Not available

27

Echo 7390360400

O-RING
(Superseded to Discontinued)

Note: INCLUDED IN PACKING KIT, COMPLETE P/N 7334008501 & PACKING KIT P/N 7334008701

$

$

Not available

28

Echo 7390383500

O-RING
(Superseded to Discontinued)

Note: INCLUDED IN PACKING KIT, COMPLETE P/N 7334008501 & PACKING KIT P/N 7334008701

$

$

Not available

29

Echo 7355640501

ACCESSORY KIT
(Superseded to Discontinued)

$

$

Not available

30

Echo 731161005

HOSE - 8M
(Superseded to Discontinued)

$

$

Not available

31

Echo 7334008401

VALVE KIT
(Superseded to Discontinued)

Note: Includes ITEMS 13-14

$

$

Not available

32

Echo 7334008501

PACKING KIT

Note: Includes ITEMS 24 - 28

$33.99

$

Usually ships in 2-4 days

0
