HPP-1890 - Echo Pressure Washer (Original Version) (1991) Rotox Nozzle Parts Diagram

Pressure Washer

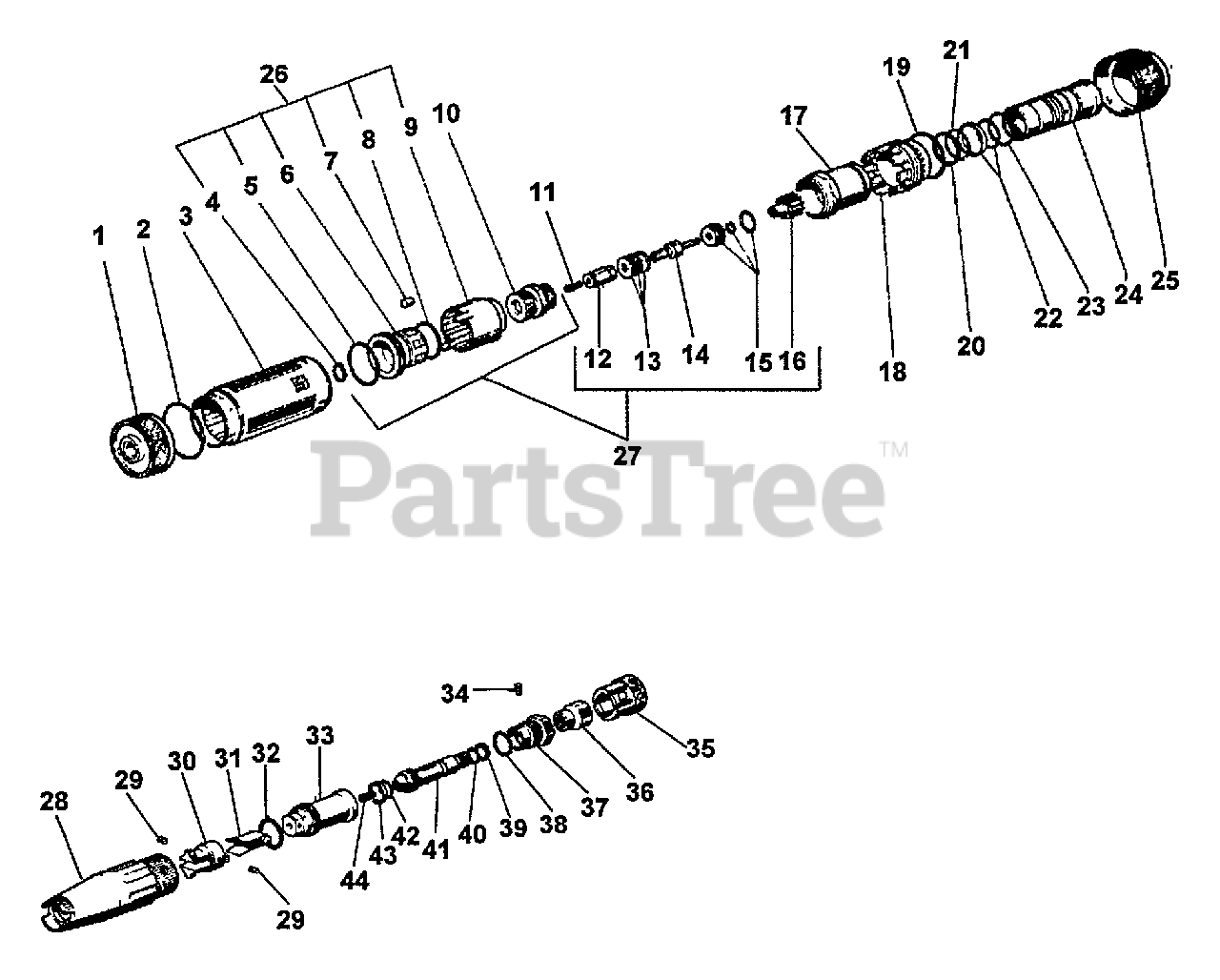

Rotox Nozzle Parts Diagram

  • Title

Echo 99999999988

NOZZLE ASSY, CPT., ROTOX

Note: ORDER SEPARATE PARTS

$

$

Currently unavailable

1

Echo 7310039651

CAP, FRONT
(Superseded to Discontinued)

$

$

Not available

2

Echo 7390361400

O-RING
(Superseded to Discontinued)

$

$

Not available

3

Echo 7310039551

KNOB, ADJUSTMENT
(Superseded to Discontinued)

$

$

Not available

4

Echo 7390053900

RING, RETAINING
(Superseded to Discontinued)

$

$

Not available

5

Echo 7390360600

O-RING
(Superseded to Discontinued)

$

$

Not available

6

------------------

ROTOR

Note: (INCLUDED IN (PARTIAL) ROTOX REBUILD KIT P/N 7311610010 & (COMPL.) ROTOX REBUILD KIT P/N 7311610011)

$

$

Not available

7

------------------

BEARING, ROLLER

Note: (INCLUDED IN (PARTIAL) ROTOX REBUILD KIT P/N 7311610010 & (COMPL.) ROTOX REBUILD KIT P/N 7311610011)

$

$

Not available

8

Echo 7390384700

O-RING - .797 X.103
(Superseded to Discontinued)

$

$

Not available

9

Echo 7310040051

CLUTCH
(Superseded to Discontinued)

$

$

Not available

10

Echo 7310040470

RINGNUT
(Superseded to Discontinued)

$

$

Not available

11

Echo 7398667400

NOZZLE - RED
(Superseded to Discontinued)

$

$

Not available

12

Echo 7310040370

HOLDER, NOZZLE
(Superseded to Discontinued)

$

$

Not available

13

Echo 7391772200

BEARING, BALL
(Superseded to Discontinued)

$

$

Not available

14

Echo 7310040270

CRANKSHAFT ASSY
(Superseded to Discontinued)

$

$

Not available

15

Echo 7310719101

SEAL ASSY
(Superseded to Discontinued)

$

$

Not available

16

Echo 7310041001

ROTOR
(Superseded to Discontinued)

$

$

Not available

17

Echo 7310040670

CYLINDER, DIFFUSER
(Superseded to Discontinued)

$

$

Not available

18

Echo 7310039951

DIFFUSER, LOW PRESSURE
(Superseded to Discontinued)

$

$

Not available

19

Echo 7390386300

O-RING
(Superseded to Discontinued)

$

$

Not available

20

Echo 7390513600

RING, ANTI-EXTRUSION
(Superseded to Discontinued)

$

$

Not available

21

Echo 7390359800

O-RING
(Superseded to Discontinued)

$

$

Not available

22

Echo 7390273600

SEAL, RING
(Superseded to Discontinued)

$

$

Not available

23

Echo 7390384500

O-RING

$0.99

$

Usually ships in 2-4 days

0

24

Echo 7310040570

BODY, DIFFUSER
(Superseded to Discontinued)

$

$

Not available

25

Echo 7310039751

RING, LOCK
(Superseded to Discontinued)

$

$

Not available

26

Echo 7311610010

KIT, (PARTIAL) ROTOX REBUILD

Note: INCLUDES ITEMS 4 - 9

$41.99

$

Usually ships in 2-4 days

0

27

Echo 7311610011

ROTOX REBUILD KIT
(Superseded to Discontinued)

Note: INCLUDES ITEMS 4 - 10, 12 - 16

$

$

Not available

Echo 99944800150

CAR WASH NOZZLE

$

$

Currently unavailable

28

Echo 7310030051

KNOB, REGULATING
(Superseded to Discontinued)

$

$

Not available

29

Echo 7397612700

PIN
(Superseded to Discontinued)

$

$

Not available

30

Echo 7310029951

HOLDER, BLADE

$9.49

$

Usually ships in 2-4 days

0

31

Echo 7310030476

BLADE

$8.49

$

Usually ships in 2-4 days

0

32

Echo 7390359800

O-RING
(Superseded to Discontinued)

$

$

Not available

33

Echo 7310030170

CYLINDER
(Superseded to Discontinued)

$

$

Not available

34

Echo 7397612300

SCREW
(Superseded to Discontinued)

$

$

Not available

35

Echo 7310030851

KNOB, REGULATING
(Superseded to Discontinued)

$

$

Not available

36

Echo 7394513200

COUPLING
(Superseded to Discontinued)

$

$

Not available

37

Echo 7310030370

NUT, ADJUSTING
(Superseded to Discontinued)

$

$

Not available

38

Echo 7390383200

O-RING
(Superseded to Discontinued)

$

$

Not available

39

Echo 7390503300

RING, SEALING
(Superseded to Discontinued)

$

$

Not available

40

Echo 7390357700

O-RING

$1.99

$

Usually ships in 2-4 days

0

41

Echo 7310030270

TUBE
(Superseded to Discontinued)

$

$

Not available

42

Echo 7390358200

O-RING
(Superseded to Discontinued)

$

$

Not available

43

Echo 7390260000

SPACER
(Superseded to Discontinued)

$

$

Not available

44

Echo 7398667400

NOZZLE - RED
(Superseded to Discontinued)

$

$

Not available
