HPP-1890 - Echo Pressure Washer (Original Version) (1991) Manifold, Unloader, Inlet, Pressure Gauge, Injector Parts Diagram

Pressure Washer

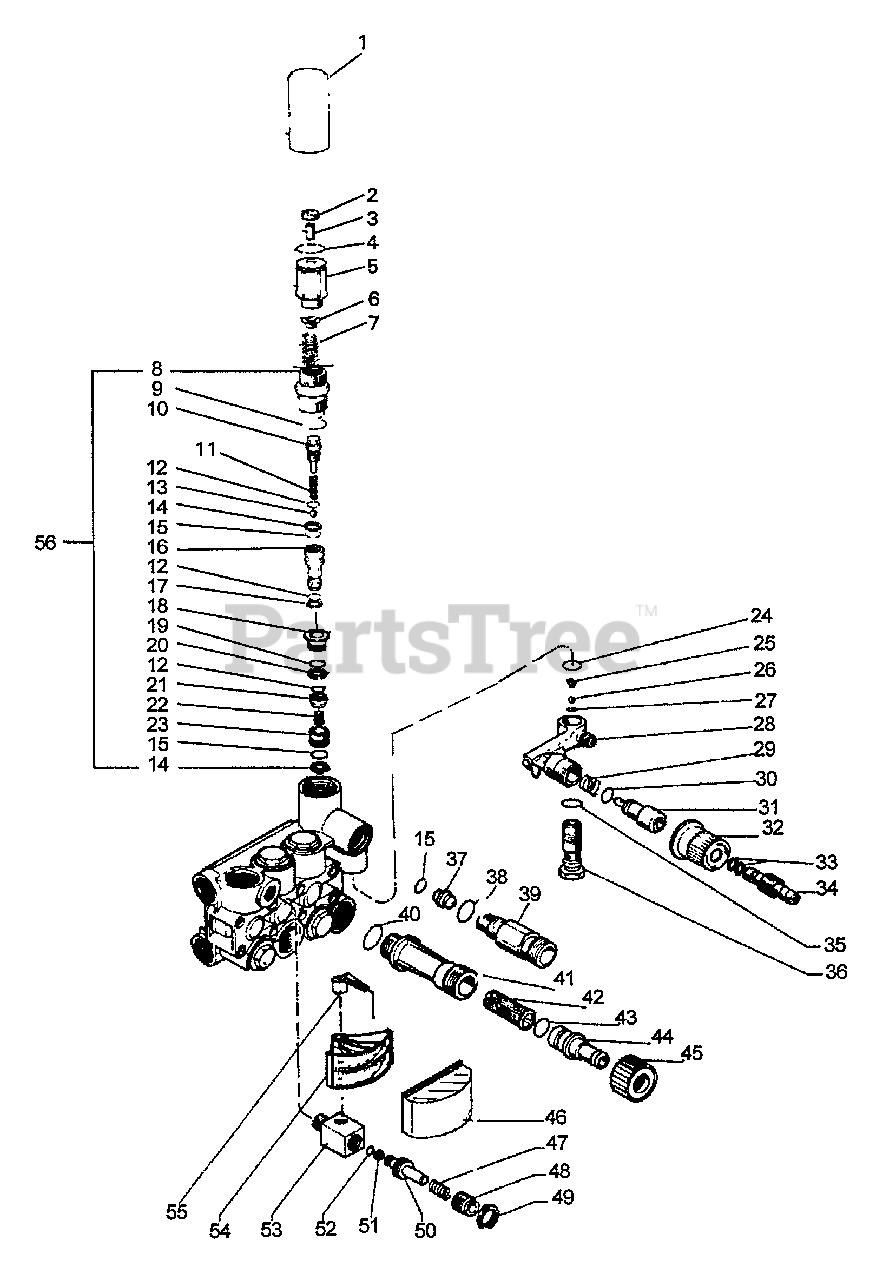

Manifold, Unloader, Inlet, Pressure Gauge, Injector Parts Diagram

  • Title

1

Echo 7336318751

KNOB, PRESSURE REGULATOR
(Superseded to Discontinued)

$

$

Not available

2

Echo 7392221800

NUT - 8
(Superseded to Discontinued)

$

$

Not available

3

Echo 7399303300

SCREW - 8X16
(Superseded to Discontinued)

$

$

Not available

4

Echo 7390359800

O-RING
(Superseded to Discontinued)

$

$

Not available

5

Echo 7336318570

SCREW, PRESSURE SET
(Superseded to Discontinued)

$

$

Not available

6

Echo 7336316970

PLATE, SPRING
(Superseded to Discontinued)

$

$

Not available

7

Echo 7394743600

SPRING
(Superseded to Discontinued)

$

$

Not available

8

Echo 7336318470

BUSHING, GUIDE
(Superseded to Discontinued)

Note: INCLUDED IN UNLOADER KIT P/N 7334000102

$

$

Not available

9

Echo 7390384700

O-RING - .797 X.103
(Superseded to Discontinued)

$

$

Not available

10

Echo 7336318870

STOPPER, STROKE
(Superseded to Discontinued)

$

$

Not available

11

Echo 7394733200

SPRING
(Superseded to Discontinued)

$

$

Not available

12

Echo 7390357500

O-RING
(Superseded to Discontinued)

$

$

Not available

13

Echo 7397480000

BALL - 9/32"
(Superseded to Discontinued)

$

$

Not available

14

Echo 7390506500

RING, ANTI-EXTRUSION

$2.99

$

Usually ships in 2-4 days

0

15

Echo 7390382200

O-RING
(Superseded to Discontinued)

$

$

Not available

16

Echo 7336318970

PISTON, CONTROL
(Superseded to Discontinued)

$

$

Not available

17

Echo 7390502500

RING, ANTI-EXTRUSION
(Superseded to Discontinued)

$

$

Not available

18

Echo 7336316570

GUIDE, VALVE
(Superseded to Discontinued)

$

$

Not available

19

Echo 7390358900

O-RING, .489 X.070
(Superseded to Discontinued)

$

$

Not available

20

Echo 7390507500

RING, ANTI-EXTRUSION
(Superseded to Discontinued)

$

$

Not available

21

Echo 7336319066

VALVE, BALL
(Superseded to Discontinued)

$

$

Not available

22

Echo 7399150900

SCREW - 5
(Superseded to Discontinued)

$

$

Not available

23

Echo 7336316466

SEAT, VALVE
(Superseded to Discontinued)

$

$

Not available

24

Echo 7390358200

O-RING
(Superseded to Discontinued)

$

$

Not available

25

Echo 7394821700

SPRING, TAPER
(Superseded to Discontinued)

$

$

Not available

26

Echo 7397478200

BALL
(Superseded to Discontinued)

$

$

Not available

27

Echo 7390357200

O-RING
(Superseded to Discontinued)

$

$

Not available

28

Echo 7336318151

BODY, INJECTOR
(Superseded to Discontinued)

$

$

Not available

29

Echo 7394738300

SPRING
(Superseded to Discontinued)

$

$

Not available

30

Echo 7390358000

O-RING
(Superseded to Discontinued)

$

$

Not available

31

Echo 7336256470

SHUTTER, INJECTOR
(Superseded to Discontinued)

$

$

Not available

32

Echo 7336256551

KNOB, CHEMICAL REGULATOR
(Superseded to Discontinued)

$

$

Not available

33

Echo 7390357000

O-RING
(Superseded to Discontinued)

$

$

Not available

34

Echo 7336256670

FITTING, HOSE BARB
(Superseded to Discontinued)

$

$

Not available

35

Echo 7390358500

O-RING
(Superseded to Discontinued)

$

$

Not available

36

Echo 7336256370

SEAT, CHEMICAL VALVE
(Superseded to Discontinued)

$

$

Not available

37

Echo 7310030766

NOZZLE
(Superseded to Discontinued)

$

$

Not available

38

Echo 73S0383200

O-RING

$

$

Currently unavailable

39

Echo 7310014770

NIPPLE
(Superseded to Discontinued)

$

$

Not available

40

Echo 7390384100

O-RING

$0.99

$

Usually ships in 2-4 days

0

41

Echo 7336318251

NIPPLE
(Superseded to Discontinued)

$

$

Not available

42

Echo 73S2892500

FILTER

$

$

Currently unavailable

43

Echo 7390382800

O-RING

$1.49

$

Usually ships in 2-4 days

0

44

Echo 7336256970

FITTING, HOSE, BARB
(Superseded to Discontinued)

$

$

Not available

45

Echo 7392982800

RINGNUT
(Superseded to Discontinued)

$

$

Not available

46

Echo 7310041551

COVER
(Superseded to Discontinued)

$

$

Not available

47

Echo 7394733800

SPRING
(Superseded to Discontinued)

$

$

Not available

48

Echo 7336258070

SCREW - 14X1
(Superseded to Discontinued)

$

$

Not available

49

Echo 7392249200

NUT - 14
(Superseded to Discontinued)

$

$

Not available

50

Echo 7336257970

PISTON
(Superseded to Discontinued)

$

$

Not available

51

Echo 7390500700

RING, BACK-UP
(Superseded to Discontinued)

$

$

Not available

52

Echo 7390356800

O-RING
(Superseded to Discontinued)

$

$

Not available

53

Echo 7310041270

BODY
(Superseded to Discontinued)

$

$

Not available

54

Echo 7310042201

DIAL
(Superseded to Discontinued)

$

$

Not available

55

Echo 7310041901

INDICATOR
(Superseded to Discontinued)

$

$

Not available

56

Echo 7334000102

VALVE KIT
(Superseded to Discontinued)

Note: Includes ITEMS 8 - 23

$

$

Not available
