HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) REDUCTION CASE Parts Diagram

Powered Carrier, Made in Japan

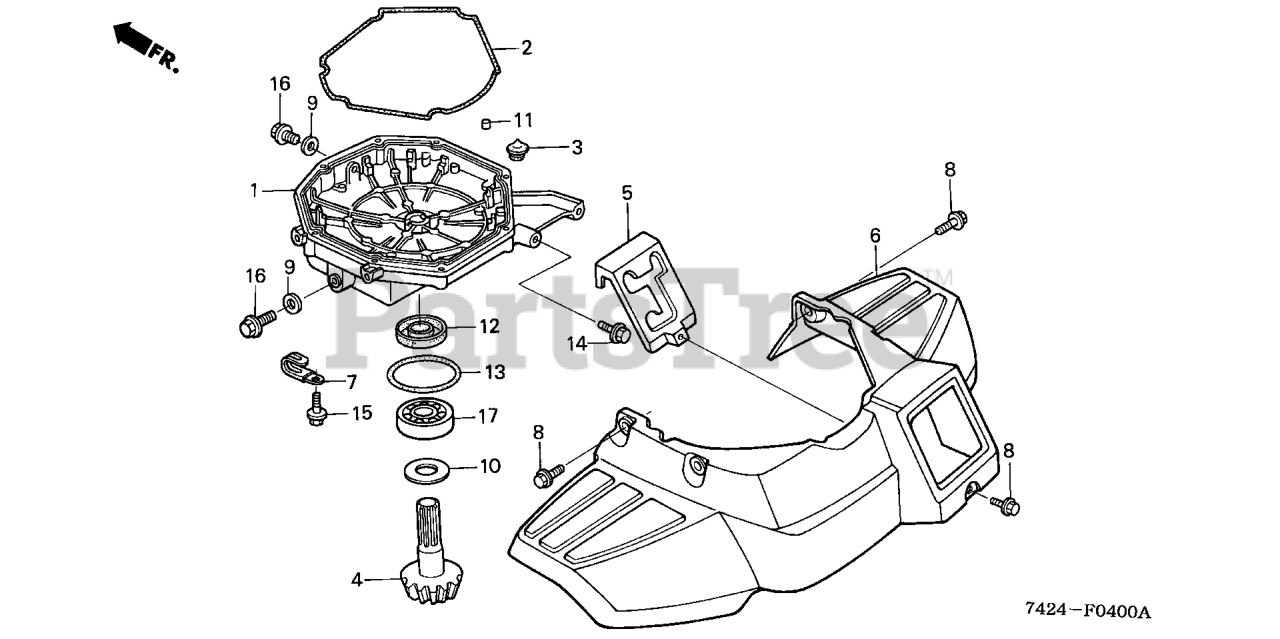

REDUCTION CASE Parts Diagram

  • Title

1

Honda 21111-742-000

CASE, REDUCTION

$288.99

$

Usually ships in 3-6 days

0

2

Honda 21271-742-000

O-RING

$16.99

$

In Stock, only 1 left!

0

3

Honda 25611-729-010

CAP, TRANS OIL

$4.99

$

Usually ships in 3-6 days

0

4

Honda 41131-742-000

PINION, BEVEL

$142.99

$

Usually ships in 3-6 days

0

5

Honda 50131-740-000

COVER, CHANGE GUIDE

$26.99

$

Usually ships in 3-6 days

0

6

Honda 61110-742-000ZB

FENDER, MAIN *R280* (POWER RED)

$82.99

$

Usually ships in 3-6 days

0

7

Honda 90010-GE0-710

CLIP, TUBE

$2.99

$

Usually ships in 3-6 days

0

8

Honda 90111-162-000

BOLT, FLANGE (6MM)

$3.99

$

Usually ships in 3-6 days

0

9

Honda 90481-705-000

WASHER (10.5MM)

$1.49

$

Usually ships in 3-6 days

0

10

Honda 90540-740-000

WASHER, BEVEL GEAR

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90701-HC4-000

PIN, DOWEL (8X12) (Honda Code 2978443).

$3.99

$

In Stock, only 2 left!

0

12

Honda 91202-GG2-005

OIL SEAL (17X32X5)

$

$

Currently unavailable

13

Honda 91351-740-003

O-RING (41.7X3.5)

$3.49

$

In Stock, only 2 left!

0

14

Honda 95701-06014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X14) (Honda Code 2410884).

$1.49

$

In Stock, Qty 8

0

15

Honda 95701-06045-07

SEE PART DETAILS - PRI; BOLT, FLANGE (6X45) (Honda Code 2410967).

$2.99

$

In Stock, Qty 10

0

16

Honda 95701-10016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (10X16)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 96100-62030-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6203) (Honda Code 0722199).

$11.99

$

Usually ships in 3-6 days

0
