HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) MUFFLER Parts Diagram

Powered Carrier, Made in Japan

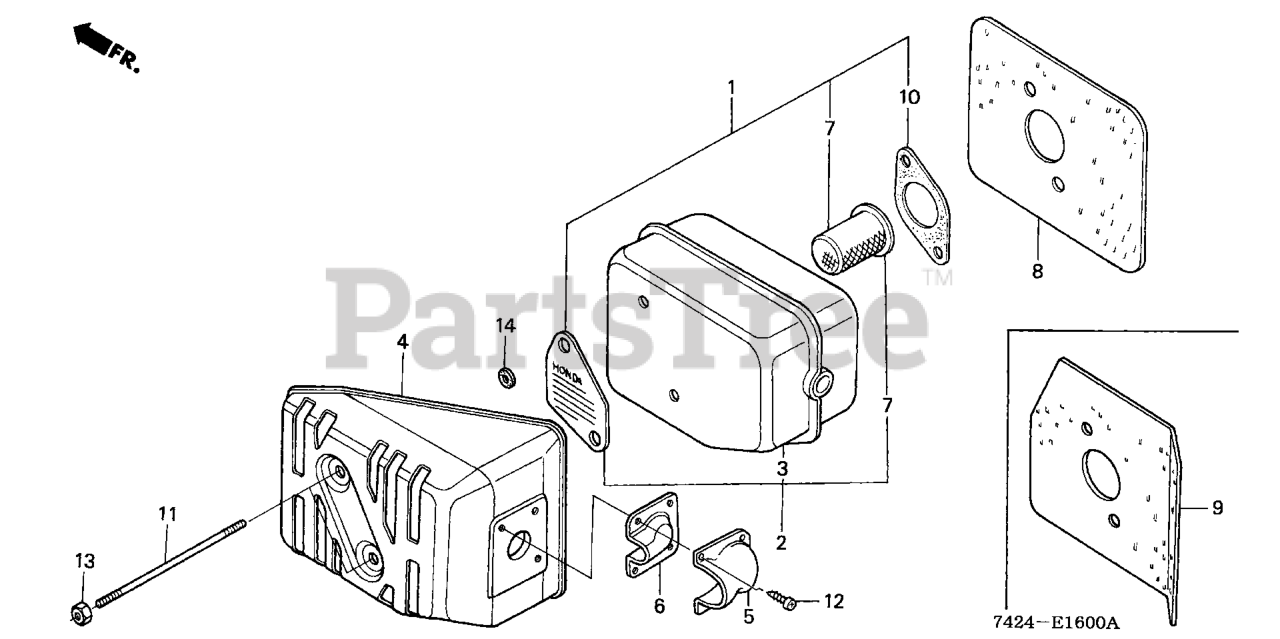

MUFFLER Parts Diagram

  • Title
1

Honda 06180-ZE6-820

SEE PART DETAILS - PRI; ARRESTER KIT, SPARK (Honda Code 4165866).

Note: (Optional)

$29.99

$

In Stock, only 1 left!

0

3

Honda 18310-ZE6-003

MUFFLER (Honda Code 1495373).

$

$

Not available

4

Honda 18320-ZE6-G04

SEE PART DETAILS - PRI; PROTECTOR, MUFFLER

$44.99

$

Usually ships in 3-6 days

0

5

Honda 18341-733-010

SEE PART DETAILS - PRI; DEFLECTOR, MUFFLER

$

$

Not available

6

Honda 18342-733-010

GUIDE, MUFFLER

$13.99

$

Usually ships in 3-6 days

0

7

Honda 06180-888-505

SEE PART DETAILS - PRI; ARRESTER KIT, SPARK (Honda Code 4562245).

Note: (Optional)

$19.99

$

Usually ships in 3-6 days

0

9

Honda 18381-ZE6-800

SEE PART DETAILS - PRI; GASKET, MUFFLER Use from Engine SN 2195322.

$

$

Not available

10

Honda 18381-ZE6-820

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4165932).

Note: (Optional)

$4.99

$

In Stock, Qty 7

0

11

Honda 90013-ZE7-000

SEE PART DETAILS - PRI; BOLT, STUD (6X82) (Honda Code 2291110).

$5.99

$

In Stock, only 2 left!

0

12

Honda 90055-ZE1-000

SCREW, TAPPING (4X6) (TO INSTALL OPTIONAL SPARK ARRESTER)

$1.49

$

In Stock, Qty 11

0

13

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0
