HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) FUEL TANK Parts Diagram

Powered Carrier, Made in Japan

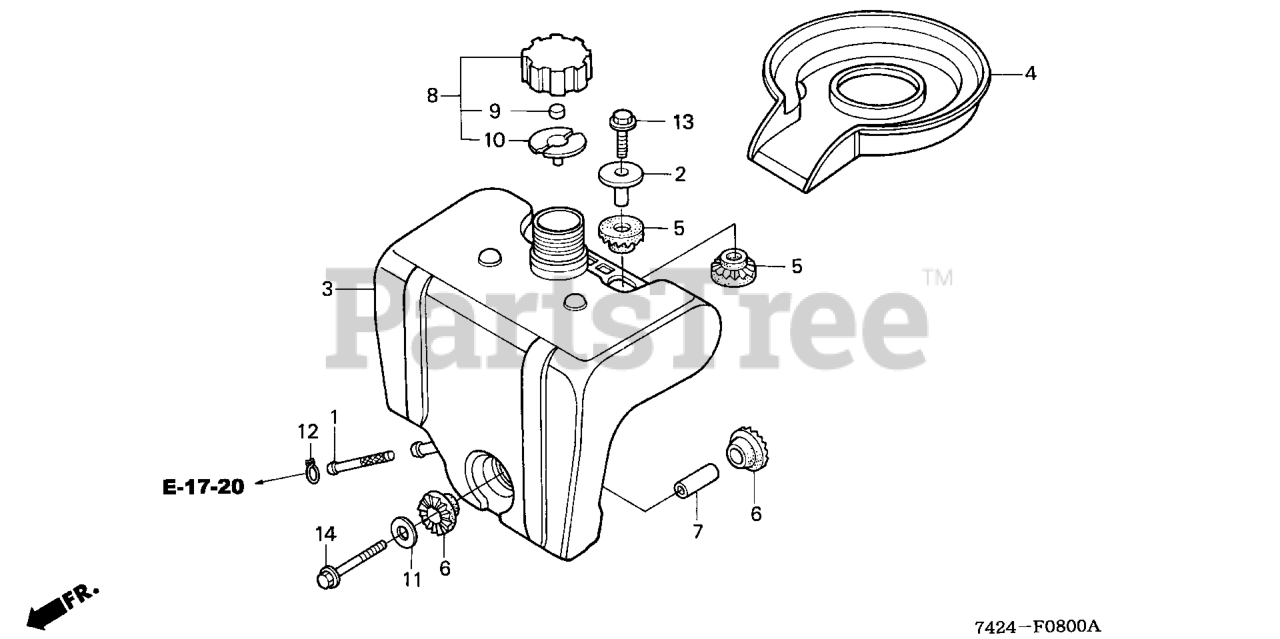

FUEL TANK Parts Diagram

  • Title

1

Honda 16952-ZE6-000

FILTER, FUEL (Honda Code 1452945).

$9.49

$

In Stock, only 2 left!

0

2

Honda 17248-742-000

COLLAR, FUEL TANK

$7.49

$

Usually ships in 3-6 days

0

3

Honda 17510-742-010

TANK, FUEL

$120.99

$

Usually ships in 3-6 days

0

4

Honda 17514-742-300

SEAL, FILLER NECK

$24.99

$

In Stock, only 1 left!

0

5

Honda 17515-742-000

RUBBER, TANK MOUNTING

$7.99

$

In Stock, only 2 left!

0

6

Honda 17516-896-700

RUBBER B, TANK MOUNTING (Honda Code 0933416).

$9.49

$

In Stock, Qty 12

0

7

Honda 17518-ZE6-000

COLLAR, TANK SETTING (Honda Code 1453109).

$

$

Not available

8

Honda 17620-ZE7-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 2289833).
(Superseded to 17620-ZG9-000)

$13.99

$

In Stock, only 1 left!

0

8

Honda 17620-ZG9-000

SEE PART DETAILS - PRI; CAP ASSY., FUEL TANK (Honda Code 3307378).

$13.99

$

In Stock, only 1 left!

0

9

Honda 17622-888-010

SEE PART DETAILS - PRI; SPONGE, FUEL CAP BREATHER (Honda Code 0810341).

$2.49

$

In Stock, only 4 left!

0

10

Honda 17624-ZE7-000

SEE PART DETAILS - PRI; GASKET, FUEL CAP (Honda Code 2507689).

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90455-896-700

WASHER, TANK MOUNTING (Honda Code 0933325).

$4.49

$

In Stock, only 2 left!

0

12

Honda 95002-70000

CLIP, TUBE (C11) (Honda Code 0053595).

$2.49

$

In Stock, Qty 5

0

13

Honda 95701-06032-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X32) (Honda Code 2105856).

$2.49

$

In Stock, Qty 5

0

14

Honda 95701-08050-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X50) (Honda Code 2935740).

$3.49

$

In Stock, Qty 5

0
