HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) FAN COVER Parts Diagram

Powered Carrier, Made in Japan

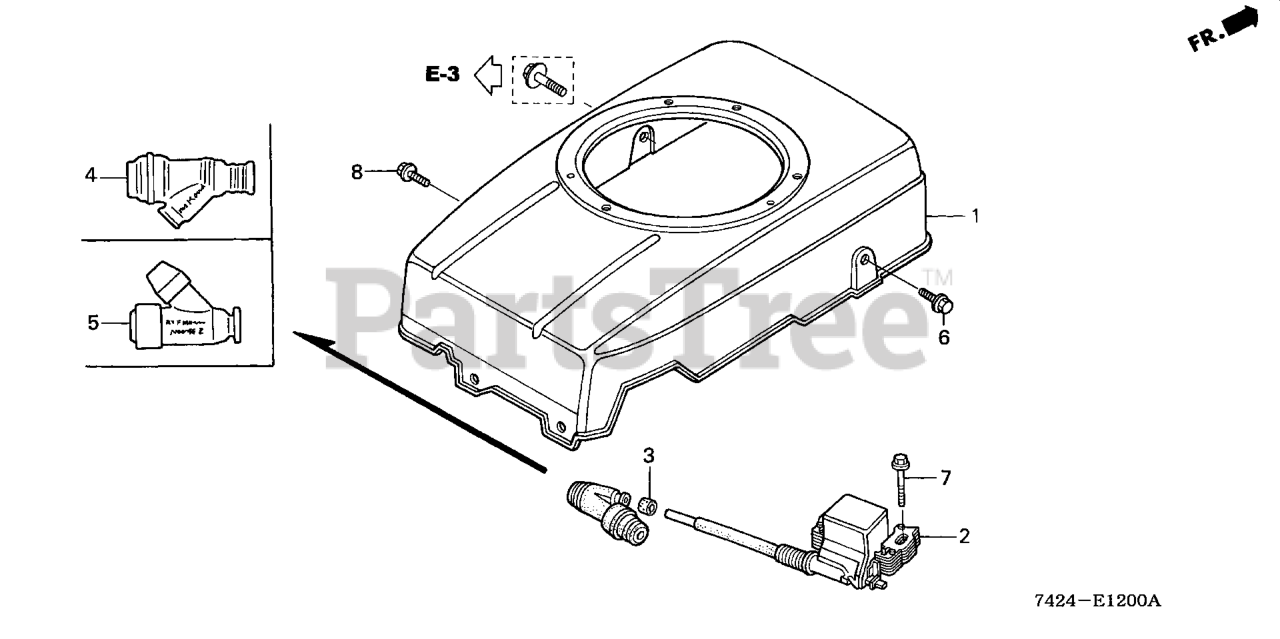

FAN COVER Parts Diagram

  • Title
1

Honda 19610-ZE6-G00ZB

SEE PART DETAILS - PRI; COVER, FAN *R280* (POWER RED)

$

$

Not available

2

Honda 30500-ZE7-063

SEE PART DETAILS - PRI; COIL ASSY., IGNITION

$98.99

$

In Stock, only 1 left!

0

3

Honda 30505-ZE6-000

GROMMET, IGNITION WIRE (Honda Code 2108256).

$2.99

$

Usually ships in 3-6 days

0

5

Honda 30700-ZE6-023

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR (Honda Code 3808649).

$26.99

$

Usually ships in 3-6 days

0

6

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$2.49

$

In Stock, Qty 17

0

7

Honda 90121-952-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X25) Use up to Engine SN 2056819.

$2.99

$

In Stock, Qty 20+

0

8

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 7

0
