HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) CYLINDER HEAD Parts Diagram

Powered Carrier, Made in Japan

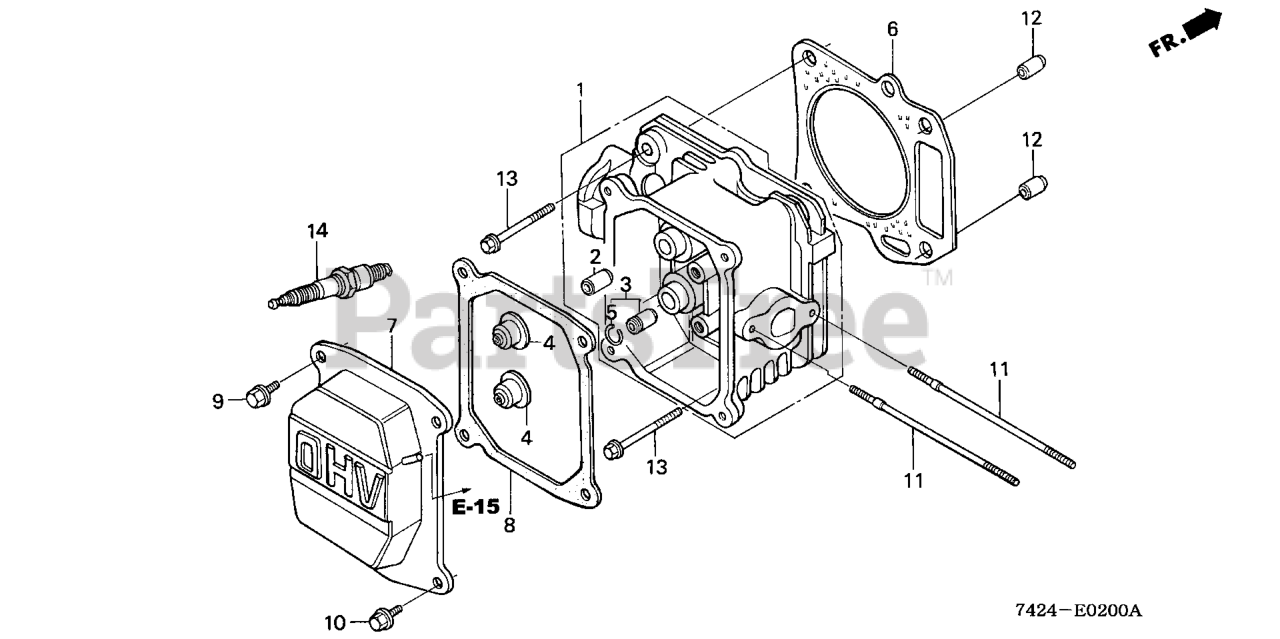

CYLINDER HEAD Parts Diagram

  • Title

1

Honda 12200-ZE6-406

SEE PART DETAILS - PRI; CYLINDER HEAD

$225.99

$

Usually ships in 3-6 days

0

2

Honda 12204-ZE1-306

SEE PART DETAILS - PRI; GUIDE, VALVE (OVER SIZE) Use from Engine SN 6324986.

Note: (Optional)

$

$

Not available

4

Honda 12209-ZE6-003

SEAL, VALVE STEM (Honda Code 7199169).

$4.49

$

In Stock, only 2 left!

0

5

Honda 12216-ZE5-300

CLIP, VALVE GUIDE Use from Engine SN 1231803.

$1.99

$

In Stock, Qty 18

0

6

Honda 12251-ZE6-000

GASKET, CYLINDER HEAD (Honda Code 1452598).

$10.99

$

In Stock, only 1 left!

0

7

Honda 12310-ZE6-G00

COVER, HEAD

$25.99

$

Usually ships in 3-6 days

0

8

Honda 12391-ZE7-M10

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD COVER (Honda Code 4060828).

$11.99

$

In Stock, Qty 9

0

9

Honda 90014-952-000

BOLT, FLANGE (6X14) (Honda Code 0803619).

$2.99

$

In Stock, only 4 left!

0

10

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

11

Honda 90043-ZE6-000

BOLT, STUD (6X109) (Honda Code 4618625).

$7.49

$

In Stock, only 2 left!

0

12

Honda 94301-10160

SEE PART DETAILS - PRI; PIN A, DOWEL (10X16) (Honda Code 0058206).

$3.49

$

In Stock, only 3 left!

0

13

Honda 95701-08045-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X45) (Honda Code 2533859).

$1.99

$

In Stock, Qty 20+

0

14

Honda 98079-54846

SPARK PLUG (BPR4ES) (NGK) (Honda Code 1521756).

$3.49

$

In Stock, Qty 20+

0

14

Honda 98079-54855

SEE PART DETAILS - PRI; SPARK PLUG (W14EPR-U) (DENSO) (Honda Code 1521764).

$3.99

$

In Stock, only 3 left!

0
