HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) CHANGE LEVER@BRAKE Parts Diagram

Powered Carrier, Made in Japan

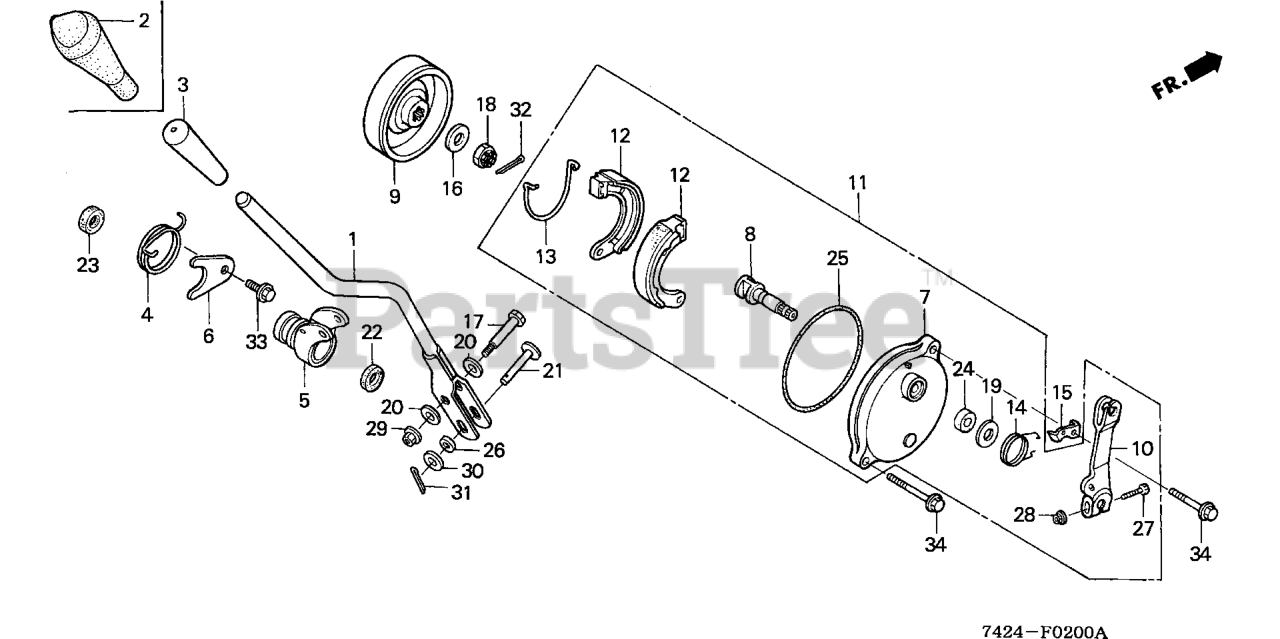

CHANGE LEVER@BRAKE Parts Diagram

  • Title
1

Honda 24410-742-000

LEVER, CHANGE

$

$

Not available

3

Honda 24411-734-A00

GRIP, CHANGE LEVER (ORANGE)

$8.99

$

Usually ships in 3-6 days

0

4

Honda 24411-740-901

SPRING, SELECT LEVER RETURN

$7.49

$

Usually ships in 3-6 days

0

5

Honda 24461-740-000

HOLDER, SELECT LEVER

$55.99

$

Usually ships in 3-6 days

0

6

Honda 24463-740-010

STOPPER, PLATE

$9.49

$

Usually ships in 3-6 days

0

7

Honda 43100-740-000

PANEL, BRAKE

$

$

Not available

8

Honda 43141-740-000

CAM, BRAKE

$

$

Not available

9

Honda 43210-740-003

DRUM, BRAKE

$39.99

$

Usually ships in 3-6 days

0

10

Honda 43410-740-000

ARM, BRAKE

$19.99

$

Usually ships in 3-6 days

0

11

Honda 45000-740-010

SEE PART DETAILS - PRI; PANEL ASSY., BRAKE

$136.99

$

Usually ships in 3-6 days

0

12

Honda 43125-GZ9-003

SHOE, BRAKE (ASK)

$

$

Currently unavailable

13

Honda 45133-044-000

SPRING, BRAKE SHOE

$3.49

$

In Stock, only 1 left!

0

14

Honda 45134-740-000

SPRING, BRAKE ARM

$5.99

$

Usually ships in 3-6 days

0

15

Honda 45135-740-000

PLATE, BRAKE ARM SPRING

$

$

Not available

16

Honda 90017-PE0-000

WASHER (10MM)

$7.49

$

Usually ships in 3-6 days

0

17

Honda 90102-740-010

BOLT, HOLDER

$6.99

$

Usually ships in 3-6 days

0

18

Honda 90301-740-003

NUT, CASTLE (10MM)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 90529-126-770

WASHER (10.5MM)

$2.49

$

Usually ships in 3-6 days

0

20

Honda 90534-011-000

WASHER (8.3MM)

$1.99

$

Usually ships in 3-6 days

0

21

Honda 90753-740-000

PIN, CHANGE LEVER

$5.99

$

Usually ships in 3-6 days

0

22

Honda 91201-246-005

SEE PART DETAILS - PRI; OIL SEAL (15X24X5)

$9.49

$

In Stock, Qty 13

0

23

Honda 91252-VA5-701

DUST SEAL (15X21X3)

$6.49

$

Usually ships in 3-6 days

0

24

Honda 91262-740-003

SEAL, BRAKE CAM

$4.99

$

Usually ships in 3-6 days

0

25

Honda 91352-740-003

O-RING (100X2)

$5.99

$

Usually ships in 3-6 days

0

26

Honda 91551-732-000

COLLAR, CHANGE JOINT

$3.49

$

Usually ships in 3-6 days

0

27

Honda 92101-05028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X28)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94050-05000

NUT, FLANGE (5MM) (Honda Code 0636951).

$1.99

$

In Stock, Qty 20+

0

29

Honda 90343-ZE6-000

SEE PART DETAILS - PRI; NUT, SELF-LOCK (6MM)

$2.49

$

In Stock, Qty 20+

0

30

Honda 94103-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$1.49

$

In Stock, Qty 10

0

31

Honda 94201-16250

PIN, COTTER (1.6X25)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94201-20220

PIN, COTTER (2.0X22)

$1.49

$

Usually ships in 3-6 days

0

32

Honda 94201-20350

PIN, COTTER (2.0X35)

$1.49

$

Usually ships in 3-6 days

0

33

Honda 95701-08014-00

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2529105).

$2.49

$

In Stock, Qty 20+

0

34

Honda 95801-06028-00

BOLT, FLANGE (6X28)

$2.49

$

Usually ships in 3-6 days

0
