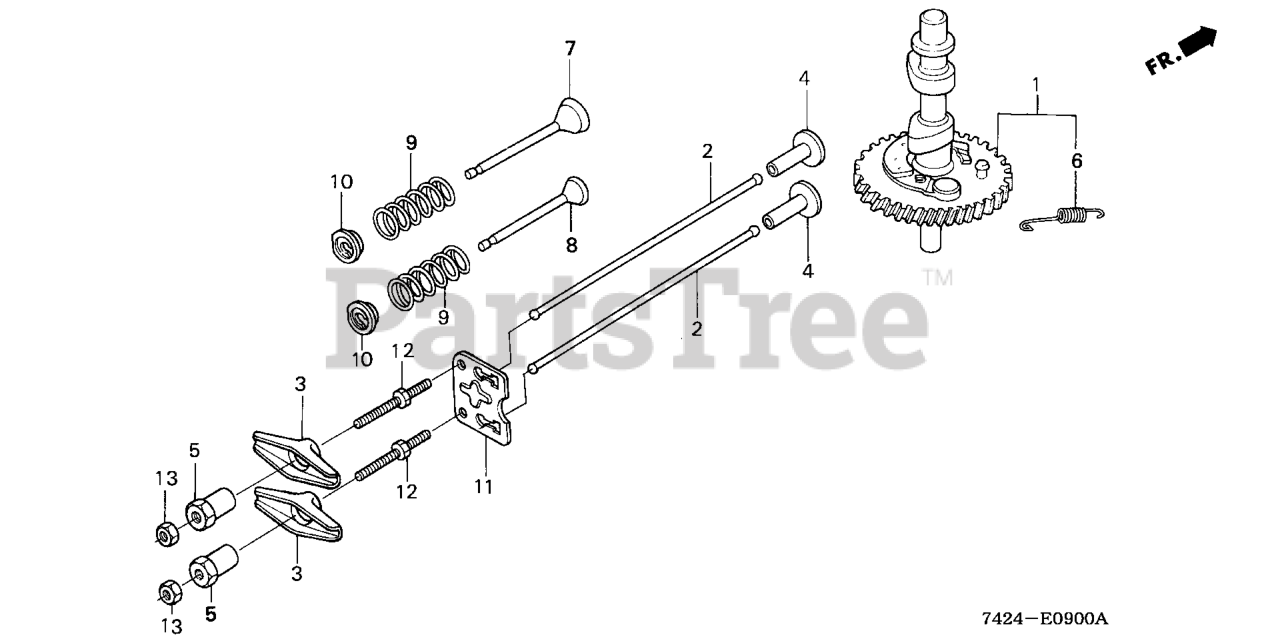

HP400 K3 BA/C (NAA) - Honda Powered Carrier, Made in Japan (SN: NAA-2800448 - NAA-9999999) CAMSHAFT Parts Diagram

Powered Carrier, Made in Japan

CAMSHAFT Parts Diagram

  • Title

1

Honda 14100-ZE6-W00

SEE PART DETAILS - PRI; CAMSHAFT ASSY.

$

$

Not available

2

Honda 14410-ZE0-010

SEE PART DETAILS - PRI; ROD, PUSH (Honda Code 3337854).

$9.99

$

In Stock, only 2 left!

0

3

Honda 14431-ZE1-000

ARM, VALVE ROCKER (Honda Code 1426824).

$8.49

$

In Stock, only 2 left!

0

4

Honda 14441-ZE1-010

SEE PART DETAILS - PRI; LIFTER, VALVE (Honda Code 5181383).

$15.99

$

Usually ships in 3-6 days

0

5

Honda 14451-Z4M-000

SEE PART DETAILS - PRI; PIVOT, ROCKER ARM

$6.49

$

In Stock, only 2 left!

0

6

Honda 14568-ZE1-000

SPRING, WEIGHT RETURN (Honda Code 1426907).

$3.99

$

In Stock, only 2 left!

0

7

Honda 14711-ZE0-010

SEE PART DETAILS - PRI; VALVE, IN. (Honda Code 2821585).

$

$

Not available

8

Honda 14721-ZE6-010

SEE PART DETAILS - PRI; VALVE, EX. (Honda Code 2821593).

$

$

Not available

9

Honda 14751-ZE1-000

SPRING, VALVE (Honda Code 1426972).

$3.99

$

In Stock, only 3 left!

0

10

Honda 14771-Z0T-900

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (EXHAUST SIDE)

$1.49

$

In Stock, Qty 12

0

11

Honda 14791-ZE0-010

SEE PART DETAILS - PRI; PLATE, PUSH ROD GUIDE (Honda Code 1929769).

$4.99

$

In Stock, only 2 left!

0

12

Honda 90012-ZE0-010

BOLT, PIVOT (8MM) (Honda Code 1756964).

$9.49

$

Usually ships in 3-6 days

0

13

Honda 90206-ZE1-000

NUT, PIVOT ADJ. (Honda Code 1431287).

$4.49

$

In Stock, only 2 left!

0
